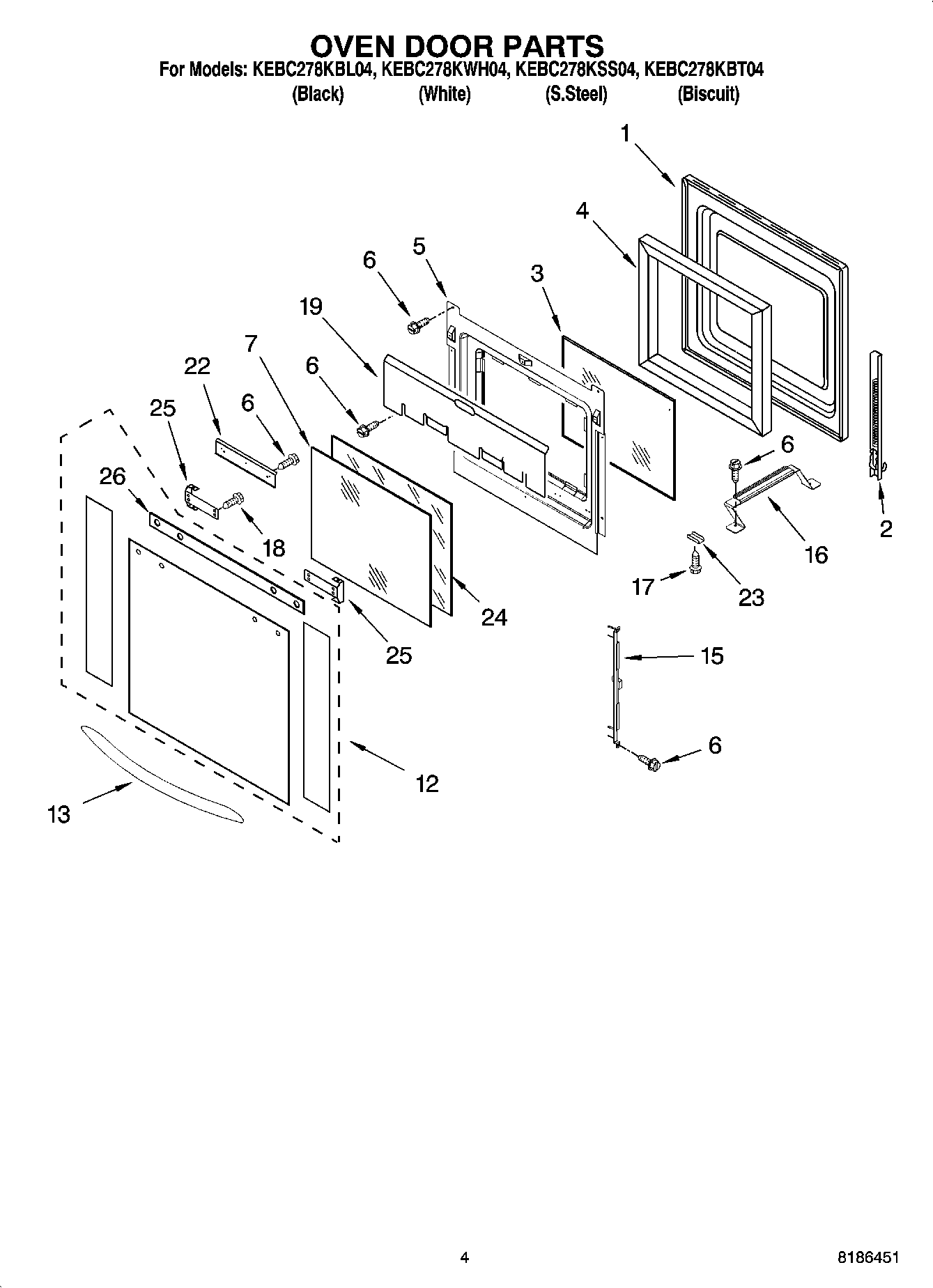

KEBC278KBT04 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	WP9760572 Whirlpool Door Hinge
2	WP9760576 Whirlpool Door Hinge (Left)
2	HINGE-DOOR
2	WP9760571 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
6	WP4449809 Whirlpool Screw
7	Glass, Inner
12	WP4452315 Whirlpool Door Glass
12	Glass, Outer (Black)
12	Door Glass, Assy (Biscuit)
12	Glass, Outer (White)
13	Handle, Door (White)
13	Handle, Door (Black)
13	Handle (S.Steel)
13	Handle, Door (Biscuit)
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
17	WP3400832 Whirlpool Screw
18	WPW10132940 Whirlpool Dishwasher Screw
19	Shield, Heat
22	Shield, Heat (Bottom)
23	Clip, Retainer (White Model)
23	Retainer, Glass-Clip (Stainless Steel)
23	Clip, Retainer (Black Model)
23	RETAINER,GLASS CLIP (BISCUIT)
24	WP9759227 Whirlpool Glass Door
25	4455803 Whirlpool Oven Bracket
25	Bracket, Handle (L.Hand)
26	Seal, Top
