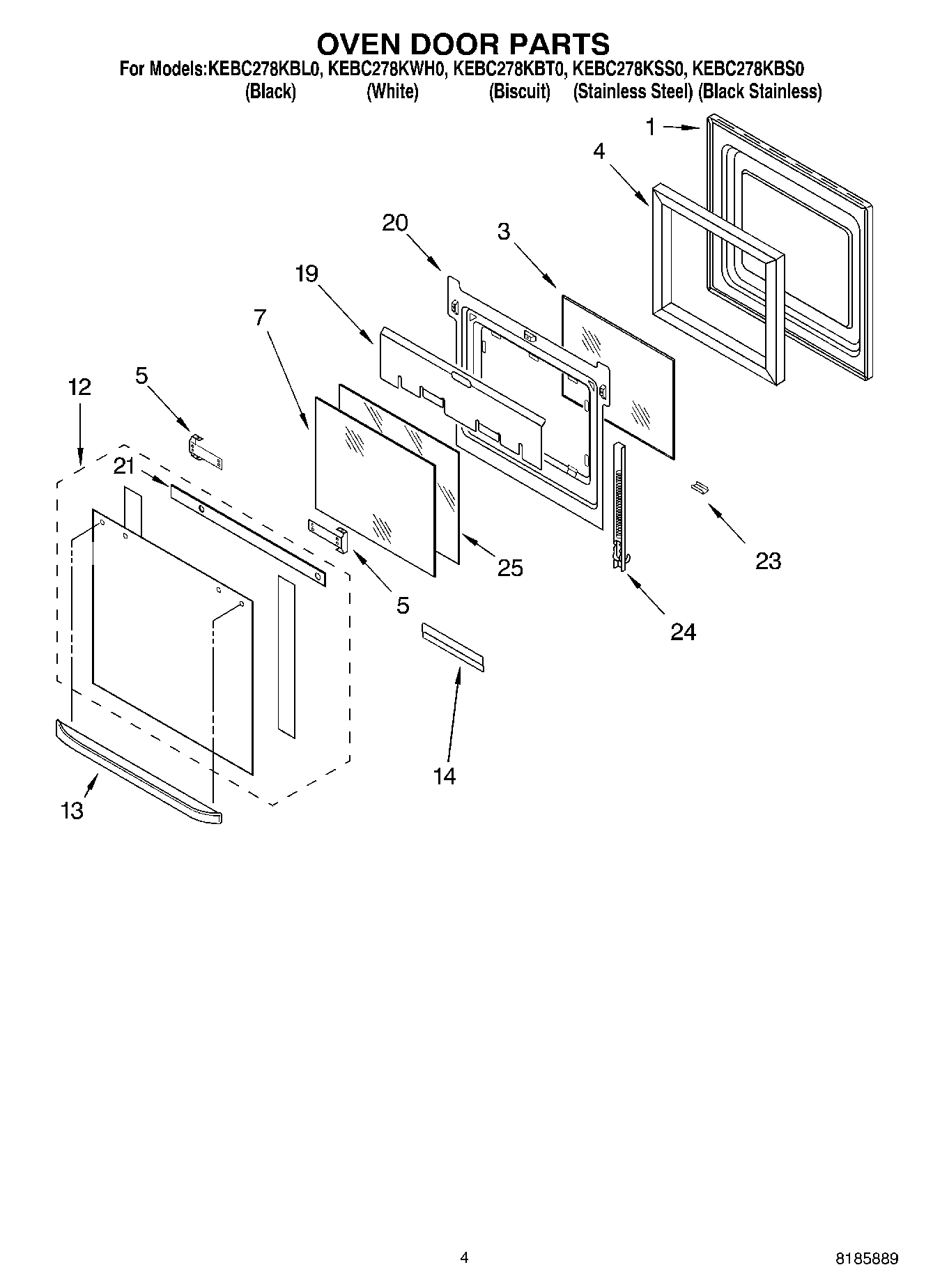

KEBC278KSS0 03 – OVEN DOORadmin2025-04-26T09:50:54+00:00KEBC278KSS0 03 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Door Liner |
| 3 | WP4449253 Whirlpool Glass Window |
| 4 | Insulation, Sides |
| 5 | Bracket, Handle Stainless Steel Model (Left Hand) |
| 5 | 4455803 Whirlpool Oven Bracket |
| 5 | Bracket, Handle (L.Hand) |
| 5 | Screw |
| 7 | WP4449257 Whirlpool Door Glass |
| 12 | Door Glass, Assy (Biscuit) |
| 12 | WP4452315 Whirlpool Door Glass |
| 12 | Glass, Outer (White) |
| 12 | Glass, Outer (Black) |
| 13 | Handle, Door (White) |
| 13 | Handle, Door (Black) |
| 13 | Door Handle (Stainless Steel) |
| 13 | Handle, Door (Biscuit) |
| 14 | Retainer, Glass |
| 19 | Shield, Heat |
| 20 | WP4449809 Whirlpool Screw |
| 20 | Retainer, Glass |
| 21 | Seal, Top |
| 23 | Retainer, Glass-Clip (Stainless Steel) |
| 23 | Clip, Retainer (Black Model) |
| 23 | Clip, Retainer (White Model) |
| 23 | RETAINER,GLASS CLIP (BISCUIT) |
| 24 | HINGE-DOOR |
| 24 | WP9760572 Whirlpool Door Hinge |
| 24 | WP9760571 Whirlpool Door Hinge |
| 24 | HINGE-DOOR LH/SS DOOR SPRING |
| 24 | WP4449743 Whirlpool Screw |
| 25 | Glass, Inner |
