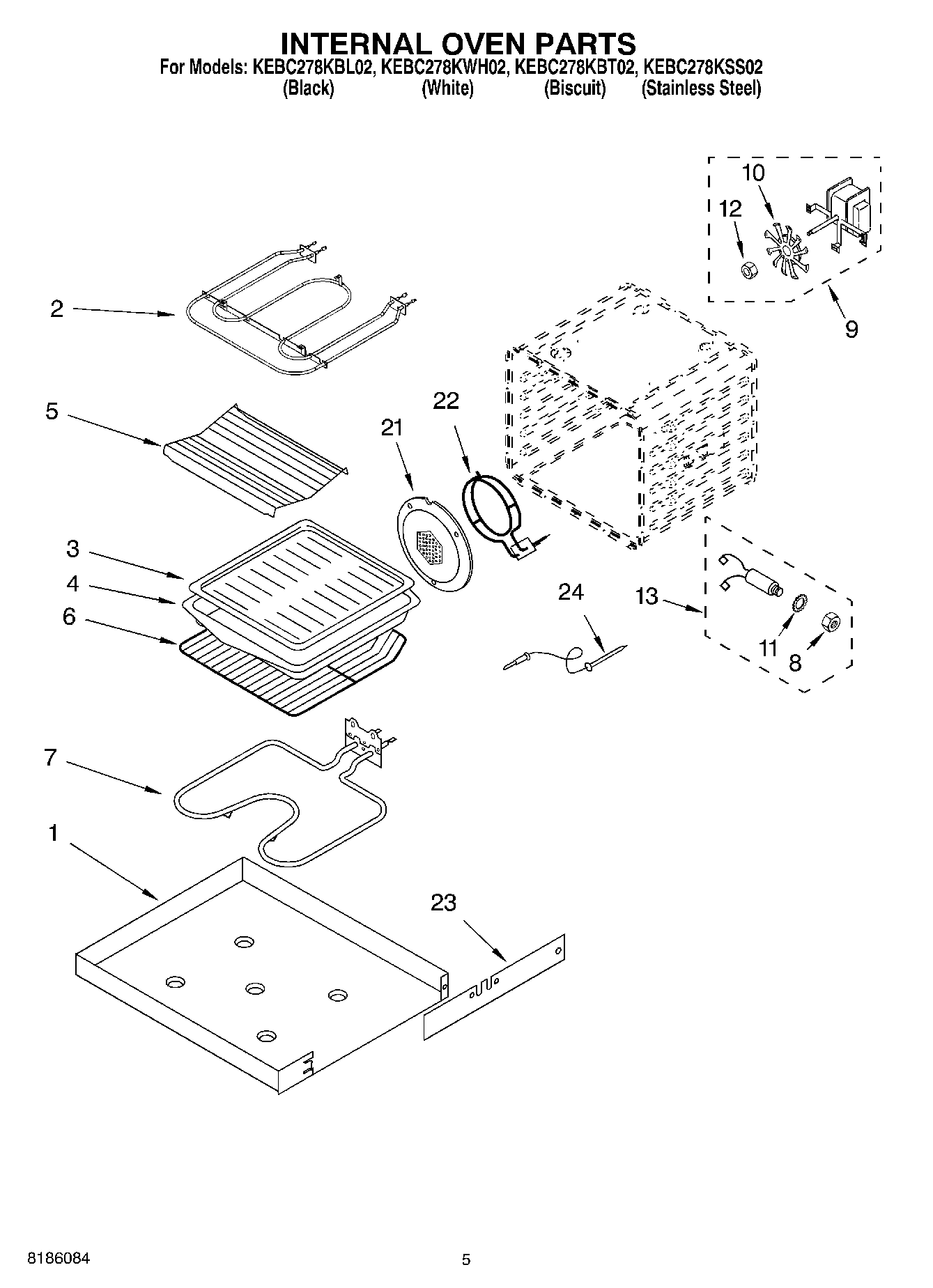

KEBC278KSS02 04 – INTERNAL OVEN PARTS

KEBC278KSS02 04 – INTERNAL OVEN PARTS

Written by

in

KEBC278KSS02 04 – INTERNAL OVEN PARTS

Products

PositionProduct
1Tray, Hidden Bake
2WPW10207400 Whirlpool Broil Element
34396923 Whirlpool Broil Pan Set Gray Porcelain
5Rack, Roasting
6Rack, Oven
74451175 Whirlpool Bake Element
8WP9755546 Whirlpool Locknut
9Motor Convection
10WP4452226 Whirlpool Convection Fan
11WP9755547 Whirlpool Lockwasher
12Nut
138186589 Whirlpool Jack Probe
21WP4449154 Whirlpool Screw
21WPW10160821 Whirlpool Fan Cover
22WP9760769 Whirlpool Element Assembly
22Plug, Button
234450039 Whirlpool Oven Access Cover
24WP9755542 Whirlpool Oven Meat Probe
