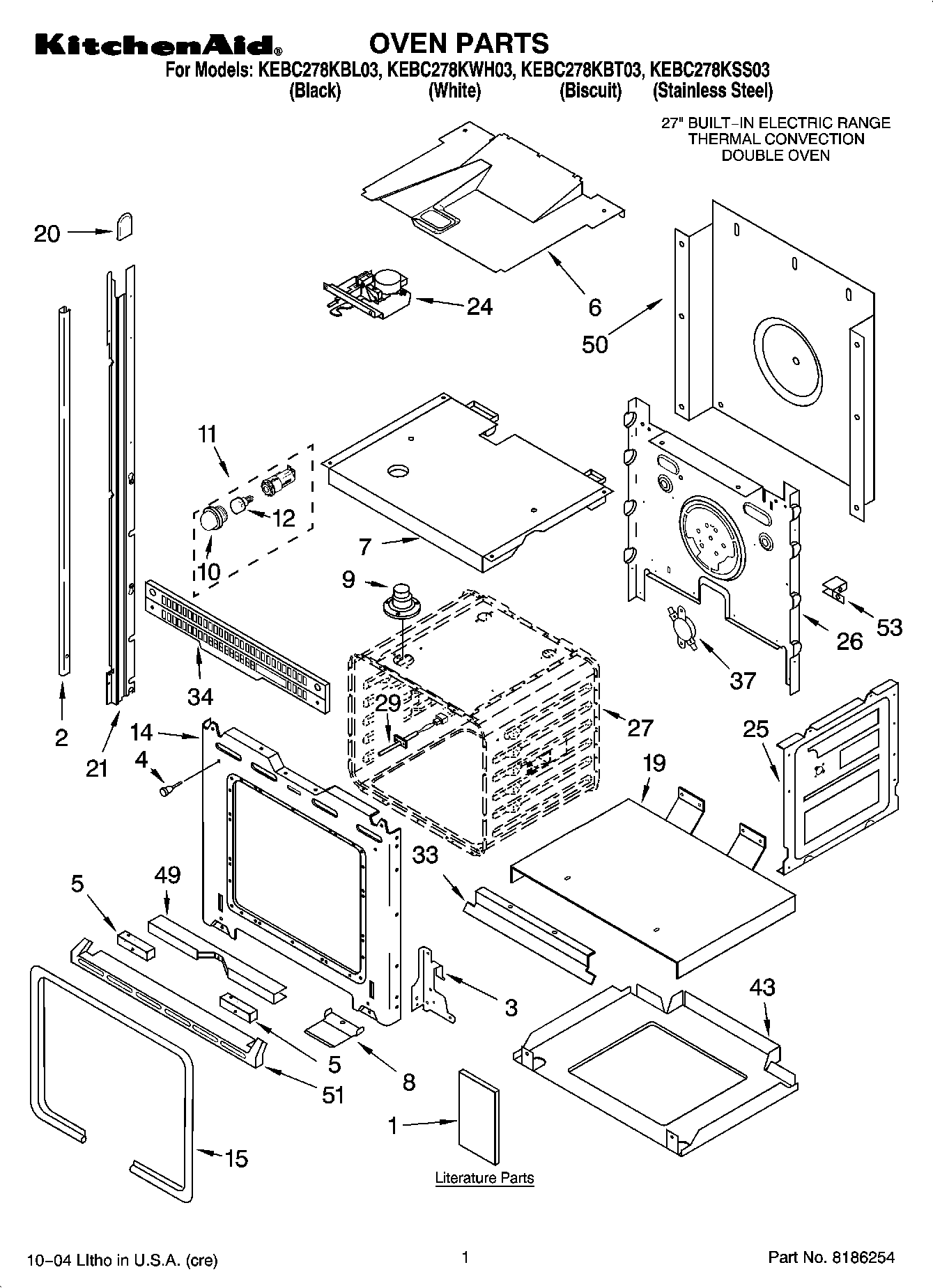

KEBC278KWH03 01 – OVEN PARTS

KEBC278KWH03 01 – OVEN PARTS

Written by

in

KEBC278KWH03 01 – OVEN PARTS

Products

PositionProduct
1Cookbook
1Tech Sheet (French)
1Tech Sheet
1Use & Care Guide (Oven)
1Installation Instructions
1Easy Set Guide
1Safe Cooking Tips
1Use & Care Guide (French)
2Trim, Side (Stainless Steel)
2WP4455426 Whirlpool Trim
2Trim, Side Left (White)
2Trim, Side Right (White)
2Trim, Side (RH Biscuit)
2Trim, Side (LH Biscuit)
2Trim, Side (LH Black)
2Trim, Side (Stainless Steel)
2WP8281236 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6Divider, Vent
7Top, Chassis
84455807 Whirlpool Oven Vent Deflector
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21814374 Whirlpool Oven Rail Mount
21814373 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
24WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
33Deflector, Vent
34Vent, Center
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
514452152 Whirlpool Oven Mounting Bracket
51Trim, Bottom (Black)
51WPL 4452480
51WP3400832 Whirlpool Screw
51WPL 4455446
51Trim, Bottom (White)
53WPL 4449845
53WPL 4449315
53WP4449809 Whirlpool Screw
53WPL 4450364
53WPL ARI82665A3
