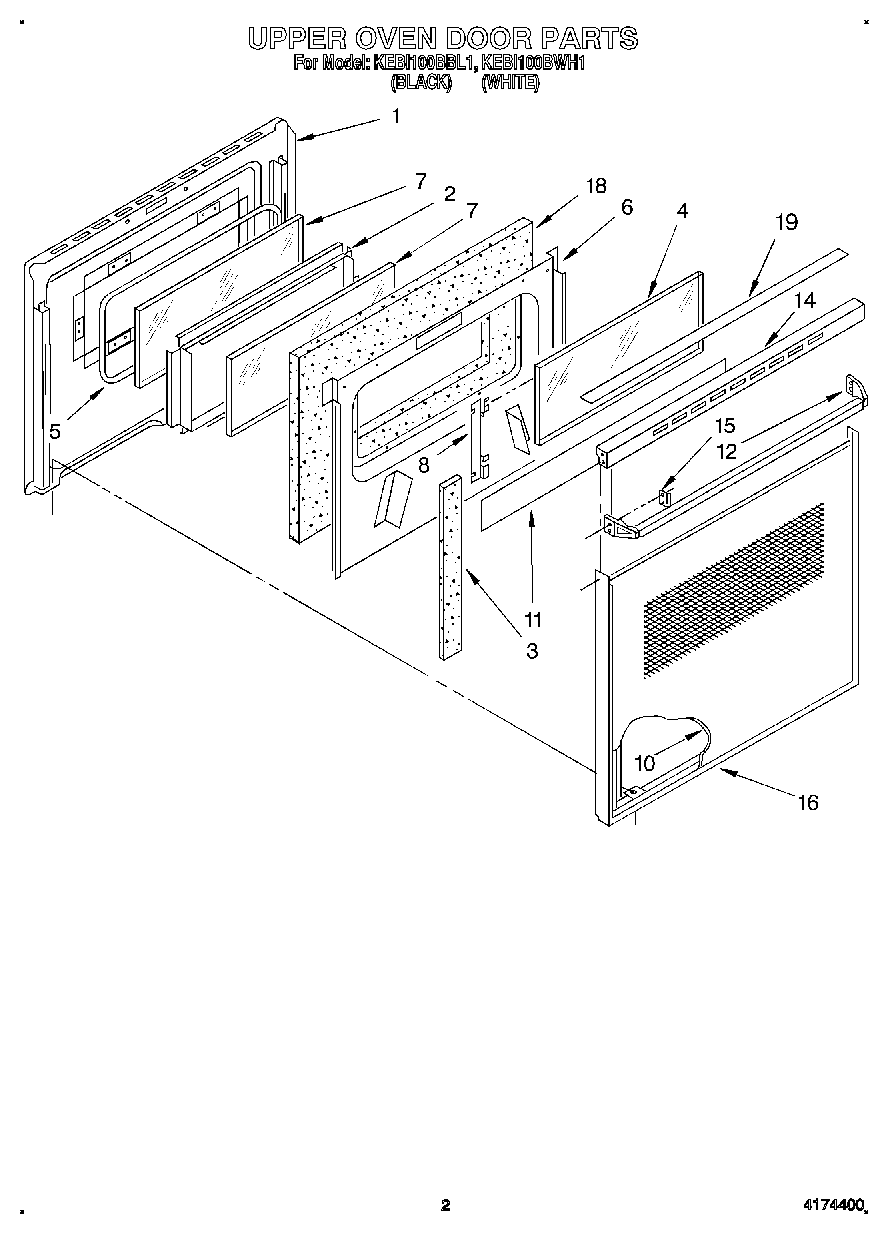

KEBI100BBL1 02 – UPPER OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Screw
2	Frame, Inner
3	Seal, Flange (2)
4	Screw
4	Glass, Clear
5	Seal, Door
6	Screw
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Door (Screw (4))
12	Handle, Door (White)
12	Handle, Door (Black)
14	Top, Door (Black Model)
14	Top, Door (White Model)
15	Clip, Mtg (2)
16	Frame, Panel (Black Model)
16	Frame, Panel (White Model)
18	Insulation, Door
19	Cap, Top (Black Model)
19	Cap, Top (White Model)
