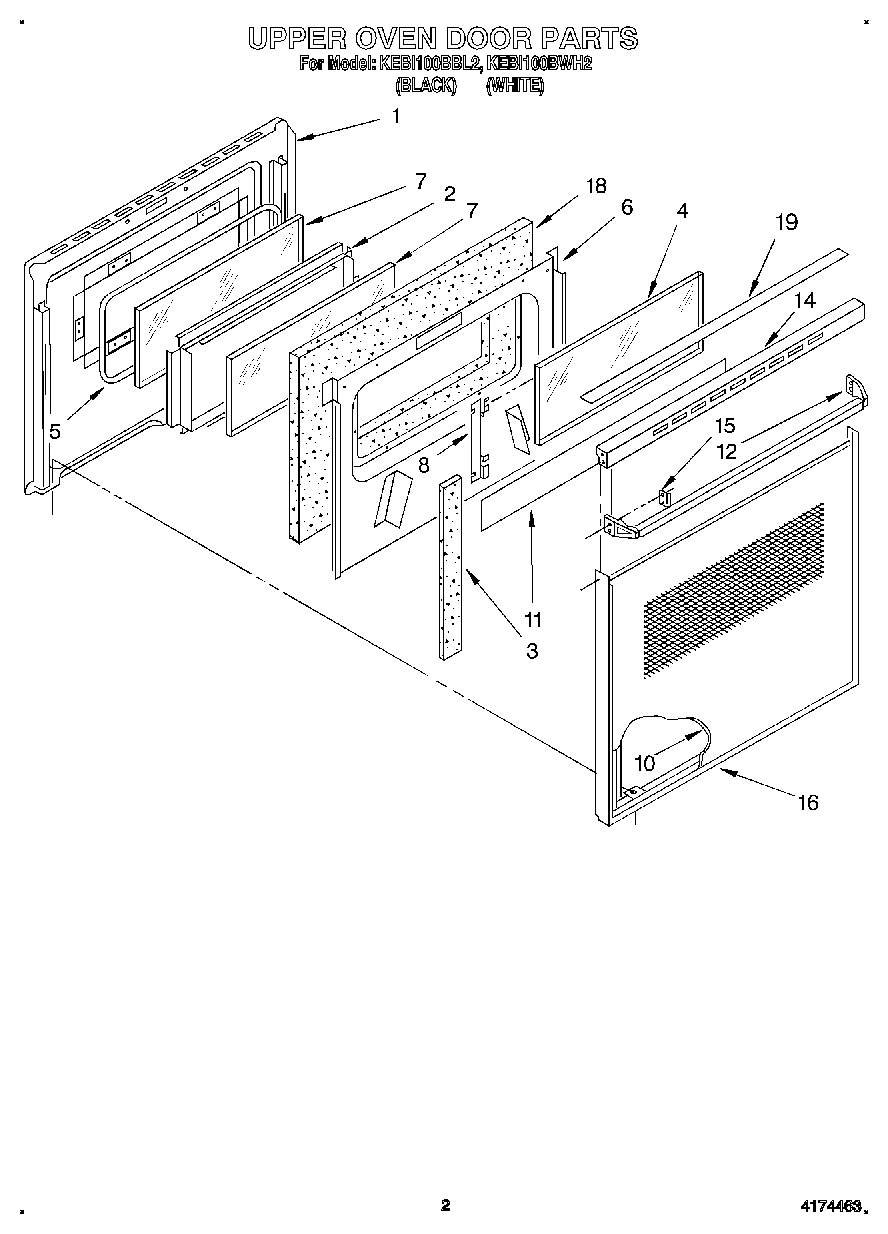

KEBI100BBL2 02 – UPPER OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Screw
2	Frame, Inner
3	Seal, Flange (2)
4	Screw
4	Glass, Clear
5	Seal, Door
6	Retainer,
6	Screw
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Door (Screw (4))
12	Handle, Door (White)
12	Handle, Door (Black)
14	Top, Door (White Model)
14	Top, Door (Black Model)
15	Clip, Mtg (2)
15	Screw, 10A x 1/2 (2) (Black)
16	Frame, Panel (Black Model)
16	Frame, Panel (White Model)
18	Insulation, Door
19	Cap, Top (White Model)
19	Cap, Top (Black Model)
