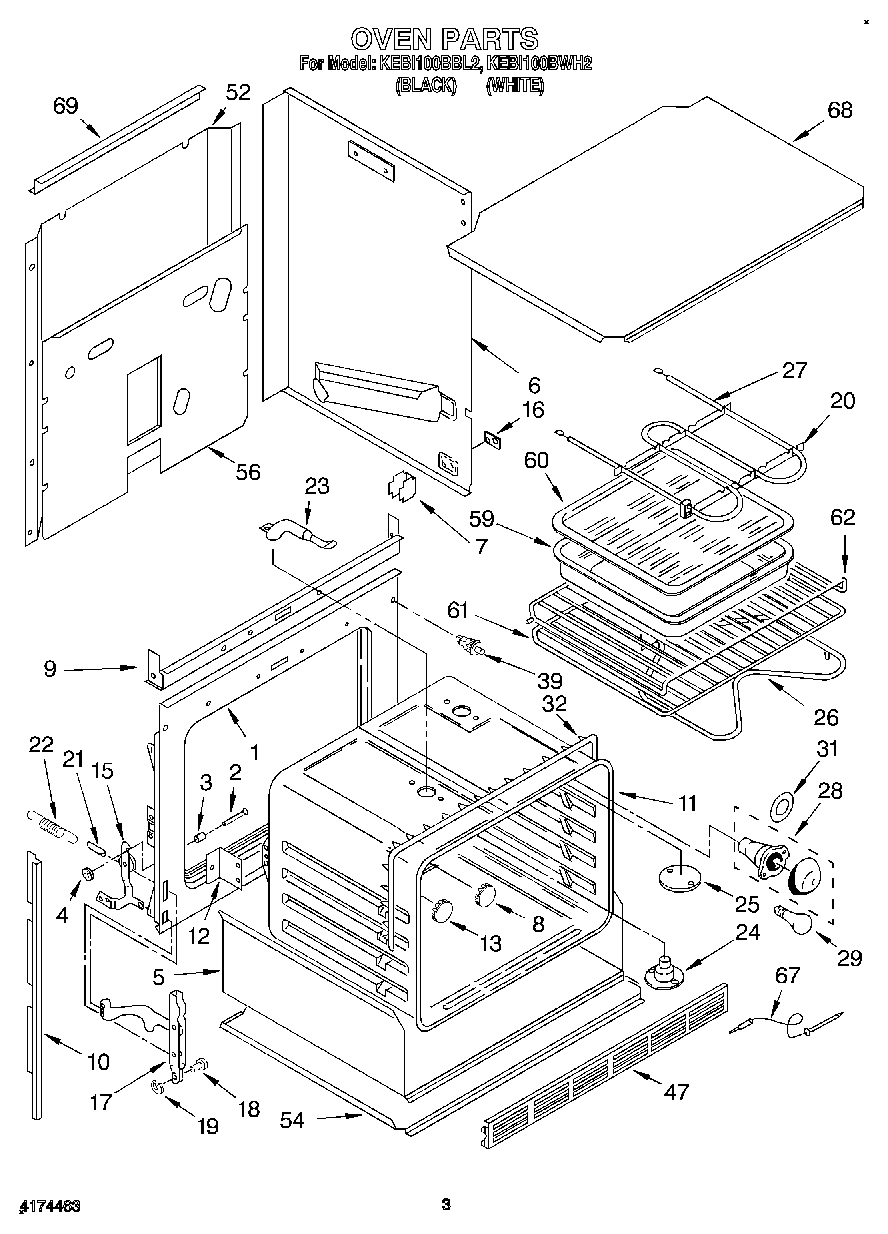

KEBI100BBL2 03 – OVEN, LITERATURE

Products

Position	Product
	Installation Instructions
	Tech Sheet
	Use & Care Guide
1	Frame Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (R.H.)
6	Side Wrapper (L.H.)
7	Support, Side Wrapper (4)
8	WPL 3185086
9	Baffle, Top Insulation
10	Side Trim (White Model, R.H.)
10	Side Trim (White Model, LH)
10	Side Trim (Black Model, RH)
10	Side Trim (Black Model, LH)
11	Screw (3)
11	Oven 30“
12	Bracket, Oven Mounting (2)
13	Button, Plug
15	Hinge, Ear (Right Side)
15	Hinge, Ear (Left Side)
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Bracket, Element
20	WP488729 Whirlpool Refrigerator Door Screw
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	SCREW
23	Tube, Vent
24	Tube, Vent
25	WPL 310662
26	WP661416 Whirlpool Bake Element
27	Screw (2)
27	Unit, Broil
28	Screw (10-12 x .875)
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
31	WP3184533 Whirlpool Range Light Lens Gasket
32	WPL 3185197
39	Switch, Door
47	WP488627 Whirlpool Refrigerator Screw
47	Grill, Bottom (Black)
47	Grill, Bottom (White)
47	Grill, Bottom (Screw (3))
52	Screw
52	WPL 3185961
54	Cover, Bottom
56	Panel, Back
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	Rack, Straight
62	Rack, Offset
67	Sensor, Heat
68	Cover, Top
69	WPL 3149328
69	WPL 310433
69	WPL 310435
69	screw
69	Bracket, Mounting Control Frame
