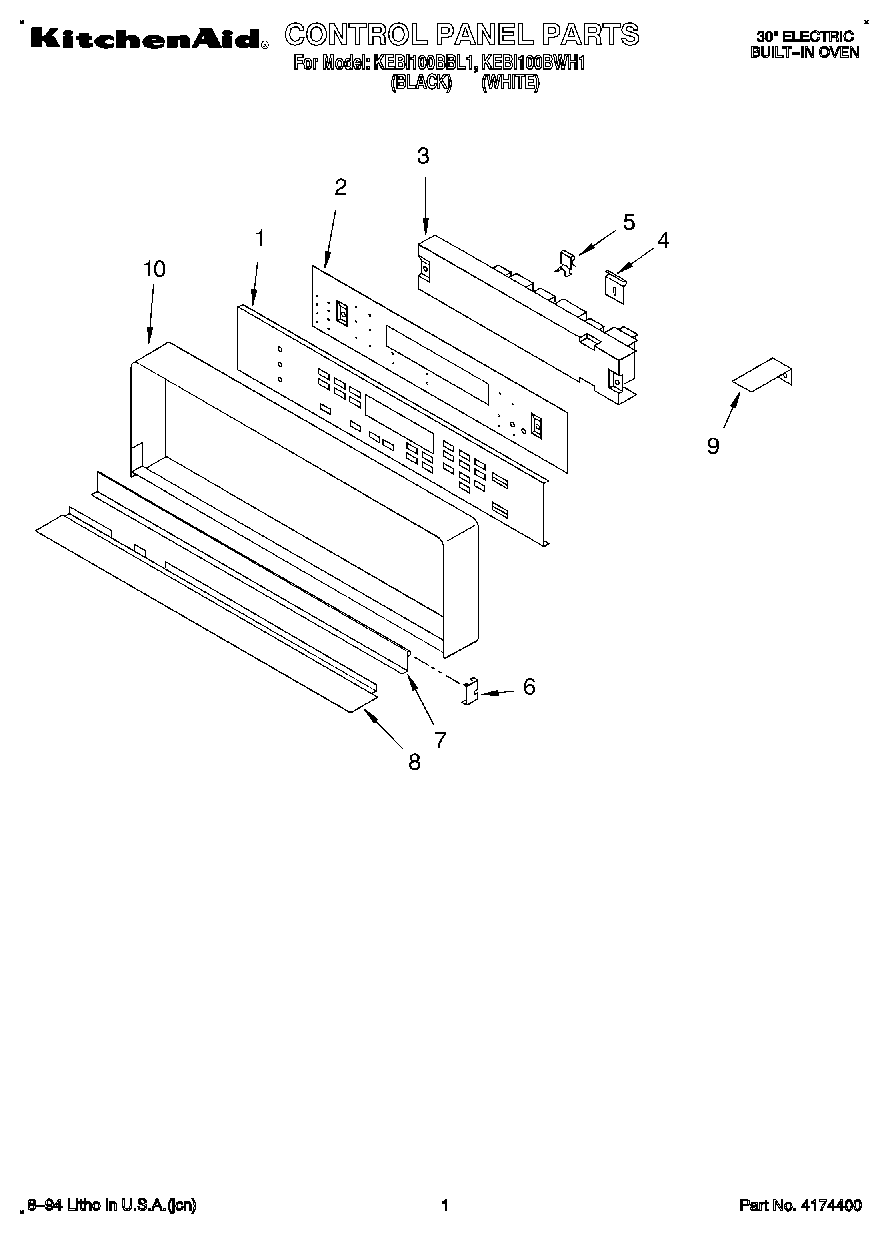

KEBI100BWH1 01 – CONTROL PANEL

Products

PositionProduct
1Membrane, Switch (White)
1Membrane, Switch (Black)
2Bracket, Mounting Switch Membrane
3Microcomputer
4Clip, Control Frame
4Screw
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (White)
7Door, Latch Handle (Black)
7Door, Latch Handle (Screw (2))
8Trim, Panel
9Screw (2)
9Bracket (2)
10Frame, Control Panel (Black Model)
10Frame, Control Panel (White Model)
