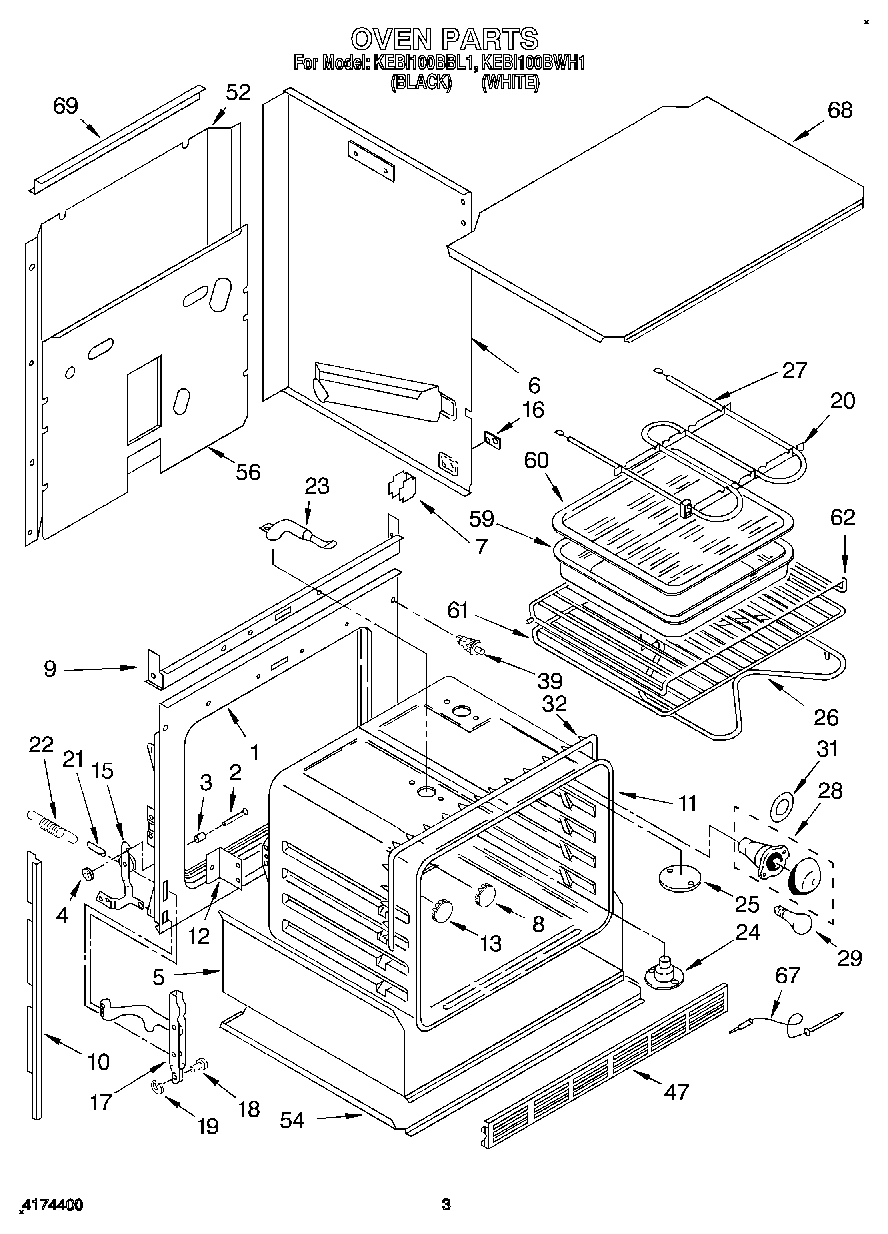

KEBI100BWH1 03 – OVEN, LITERATURE

Products

Position	Product
	Tech Sheet
	Installation Instructions
	Use & Care Guide
1	Front Frame
1	Frame Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (L.H.)
6	Side Wrapper (R.H.)
7	Support, Side Wrapper (4)
8	WPL 3185086
9	Baffle, Top Insulation
10	Side Trim (Black Model, R.H.)
10	Side Trim (White Model, R.H.)
10	Side Trim (Black Model, L.H.)
10	Side Trim (White Model, LH)
11	Screw (3)
11	Oven 30“
12	Bracket, Oven Mounting (2)
13	Button, Plug
15	Hinge, Ear (Left Side)
15	Hinge, Ear (Right Side)
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	WP488729 Whirlpool Refrigerator Door Screw
20	Bracket, Element
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent
23	SCREW
24	Eliminator, Smoke
25	WPL 310662
26	WP661416 Whirlpool Bake Element
27	Screw (2)
27	Unit, Broil
28	W11594027 Whirlpool Range Oven Light Socket
28	Screw (10-12 x .875)
29	RANGE ONLY 40W 120V APPL BULB
31	WP3184533 Whirlpool Range Light Lens Gasket
32	WPL 3185197
39	Switch, Door
47	Grill, Bottom (Black)
47	Grill, Bottom (Screw (3))
47	Grill, Bottom (White)
47	WP488627 Whirlpool Refrigerator Screw
52	WPL 3185961
52	Screw
54	Cover, Bottom
56	Panel, Back
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	Rack, Straight
62	Rack, Offset
67	Sensor, Heat
68	Cover, Top
69	Bracket, Mounting Control Frame
69	WPL 310433
69	WPL 3149328
69	screw
69	WPL 310435
