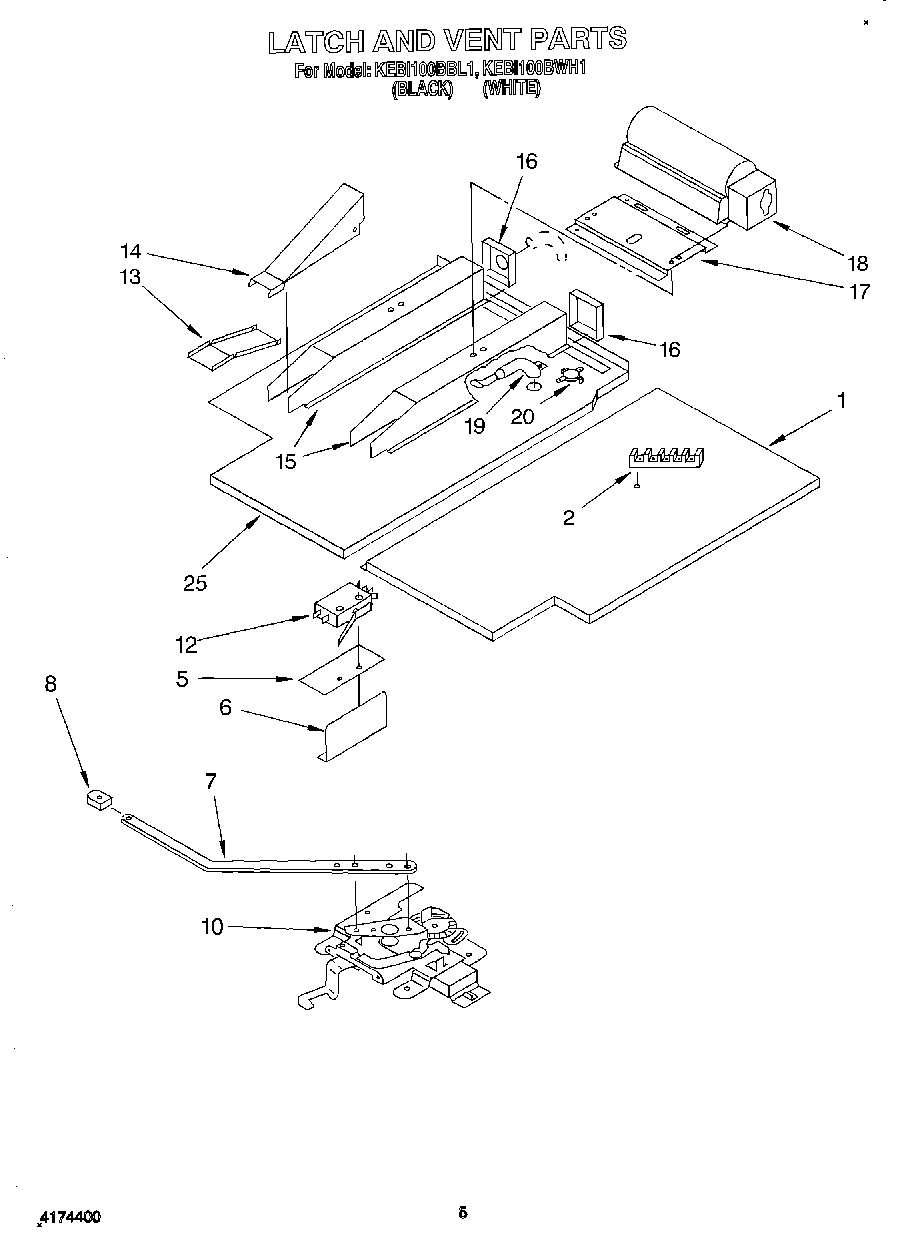

KEBI100BWH1 04 – LATCH AND VENT, OPTIONAL

Written by

Products

Position	Product
1	Baffle, Vent
2	Screw (10-12 x .875)
2	WP8203546 Whirlpool Terminal Block
2	WP112432 Whirlpool Nut Assembly
5	Screw
5	Insulator, Switch
6	Shield, Latch
6	Screw
7	Handle, Latch
7	Screw
8	Knob, Latch Handle
8	Screw
10	Latch Mechanism
12	Switch, Latch
13	Nozzle, Vent Bottom
14	Nozzle, Vent Top
15	Box, Vent (2)
16	End, Vent Box
16	Screw
17	WP3177991 Whirlpool Screw
17	Bracket, Mounting
18	Blower, fan
19	SCREW
19	Tube, Vent
20	SPST Thermostat
25	Wire (14 Ga. 150 c Blue)
25	Wire (14 Ga. 150 c Brown)
25	Wire (14 Ga. 150 c Green)
25	Wire (14 Ga. 150 c Orange)
25	1
25	WPL 832985
25	WPL 591014
25	WPL 350806
25	WPL 3171507
25	Wire (14 Ga. 200 c Brown)
25	18 Ga. 80~c Rating (Red)
25	Wire (12 Ga. 150 c Black)
25	Wire (14 Ga. 150 c Yellow)
25	WP261869 Whirlpool Microwave Paint
25	242831 Whirlpool Oven Wire
25	Baffle, Vent Mtg.
25	Paint, Spray (13 Oz.) (Platinum)
25	Toast
25	Golden Harvest (Uncut)
25	Golden Harvest
25	72113 Whirlpool Touch-Up Paint
25	Almond (Uncut)
25	Leveler (Thinner)
25	WP72107 Whirlpool Touchup
25	799344 Whirlpool Refrigerator Paint
25	72017 Whirlpool Appliance Touch-Up Paint White
25	350956 Whirlpool Spray Assembly
25	Enamal, Toast (1 Qt. Uncut)
25	Platinum (Uncut)
25	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
25	WP482338 Whirlpool Refrigerator Adhesive
25	72032 Whirlpool Touch Up Paint Black
25	285006 Whirlpool Spray
25	Wire, 25“ Roll (White 14 GA.)
25	Wire, 25` Roll (Red 14 Ga.)
25	Wire, 25` Roll (Black 14 Ga.)
25	WPL 799832
25	WP488729 Whirlpool Refrigerator Door Screw
25	350942 Whirlpool Spray Paint
25	WPL 72112
25	350930 Whirlpool White Spray Paint
