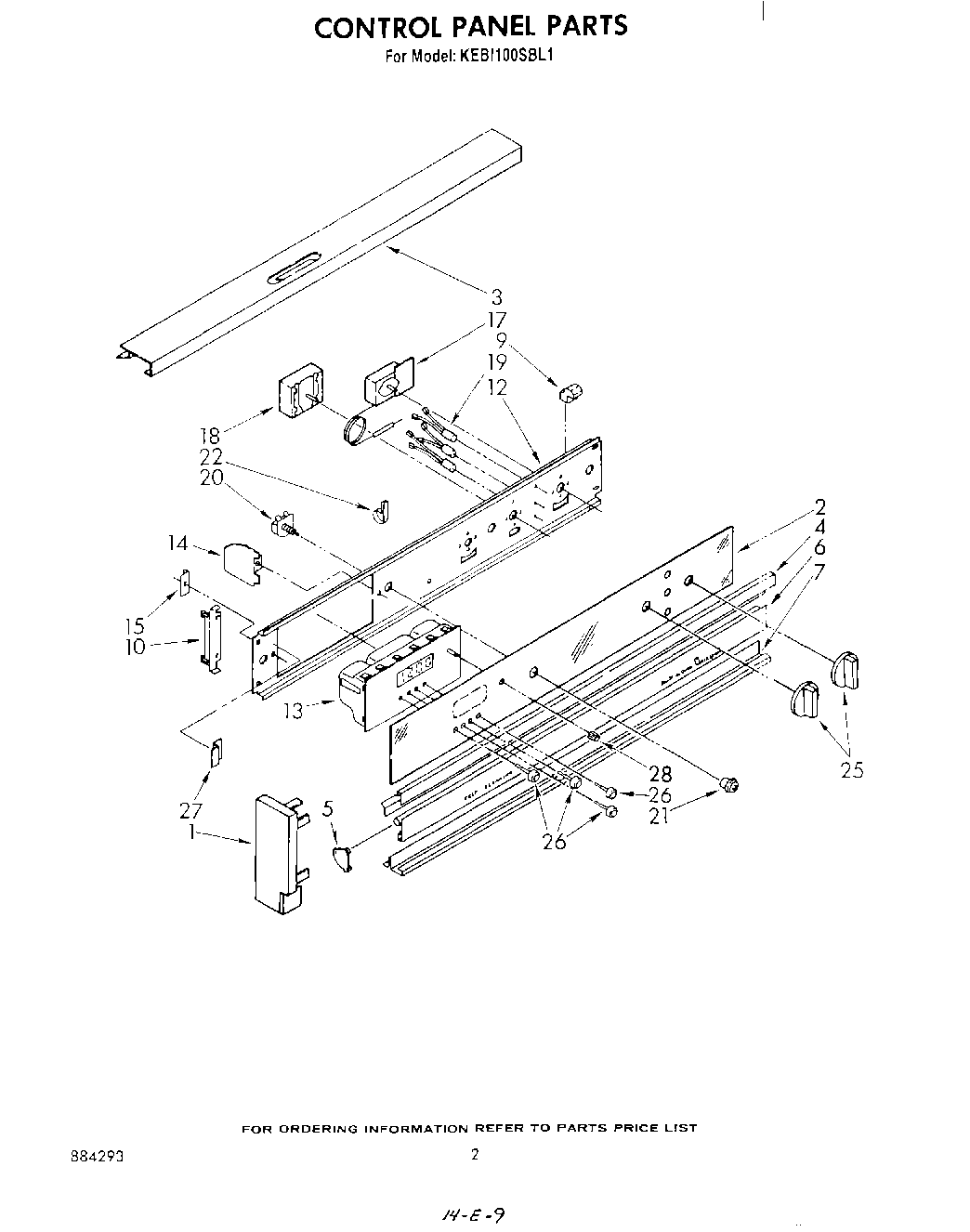

KEBI100SBL1 02 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

PositionProduct
Book, Cooking Guide
WPL LIT884293
WPL LIT3147414
WPL LIT3147381
WPL LIT314127
1End Cap R.H.
1End Cap. L.H.
2Control Panel, Glass
3Rail, Top
3WP488627 Whirlpool Refrigerator Screw
3screw
4Trim, Center
5End Trim, Vent (Right Side)
5End Trim, Vent (Left Side)
6Door, Vent
6Screw, 8-32 x 5/16 (2)
7Trim, Bottom
7Screw, 10-32 x 1/2
9Retainer, Glass (4)
10WP488234 Whirlpool Air Conditioner Screw
10Bracket, Control Panel (2)
12Bracket, Control
13Timer, Orbitron (Included No.14)
14Shield, Timer (2)
15Bracket, Timer (2)
17Thermostat, Oven Pyro
17screw, 6-32 x 1/4 (2)
18Switch, Selector
18WP486579 Whirlpool Air Conditioner Screw
19Indicator Light (4)
20Lockwasher
20Switch, Oven Light
21Bezel Switch (1)
22WP965173 Whirlpool Dishwasher Screw
22WP308605 Whirlpool Refrigerator Clamp
25Knob, Control (3)
26WPL 313958
27Bracket (2)
28Wire, 25` Roll (Black 14 Ga.)
28FOIL, ALUMINUM OVEN (18“ X 25 )
28Wire, 25“ Roll (White 14 GA.)
2818 Ga. 80~c Rating (Red)
28242831 Whirlpool Oven Wire
28WPW10208653 Whirlpool Insulation
28Wire, 25` Roll (Red 14 Ga.)
28Knob, Bit Generator (Black)
28Wire (14 Ga. 150 c Yellow)
28Wire (14 Ga. 150 c Orange)
28Wire (14 Ga. 200 c Brown)
281
28Wire (14 Ga. 150 c Green)
28Rotisserie Kit
288212471 Whirlpool Oven Paint
28Grease
28Wire (14 Ga. 150 c Brown)
28Wire (14 Ga. 150 c Blue)
28Wire (12 Ga. 150 c Black)
