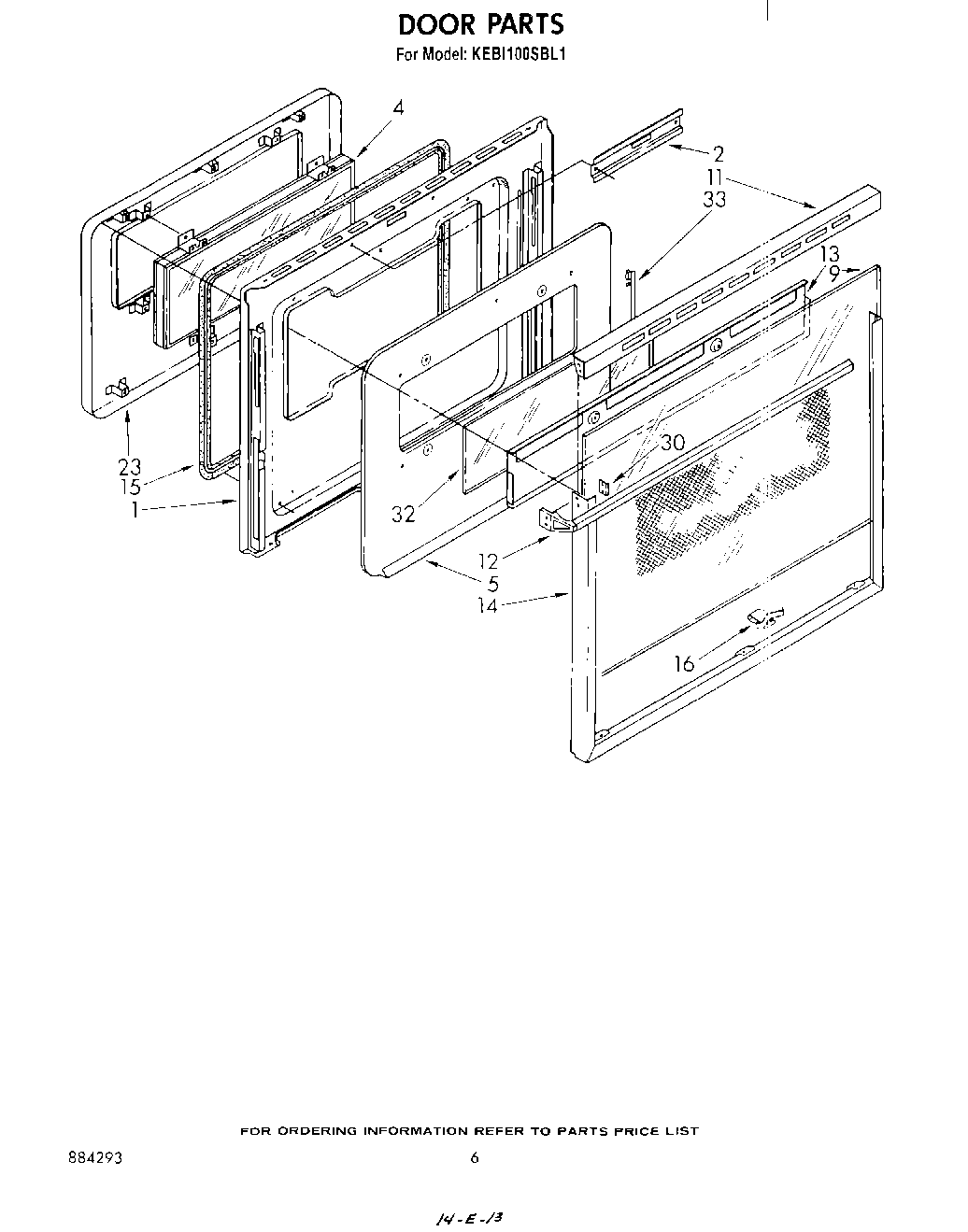

KEBI100SBL1 04 – DOOR

Products

PositionProduct
1Screw (3)
1Liner, Door
2Screw, 10-24 x 1/2 (4)
2Channel, Latch
4Window Package
5Retainer, Insulation
9Glass, Outer
11Top, Door Frame
12WP355515 Whirlpool Screw
12Handle, Oven Door
13Baffle, Heat
13WP90296 Whirlpool Clip
14Screw, 10A x 1/2 (2) (Black)
14Frame, Door
15Seal, Fiberglass
16Clip, Glass (10)
23Panel, Inner
30Clip (2)
32Glass (6.81“ x 18.31“)
33Retainer, Glass (2)
