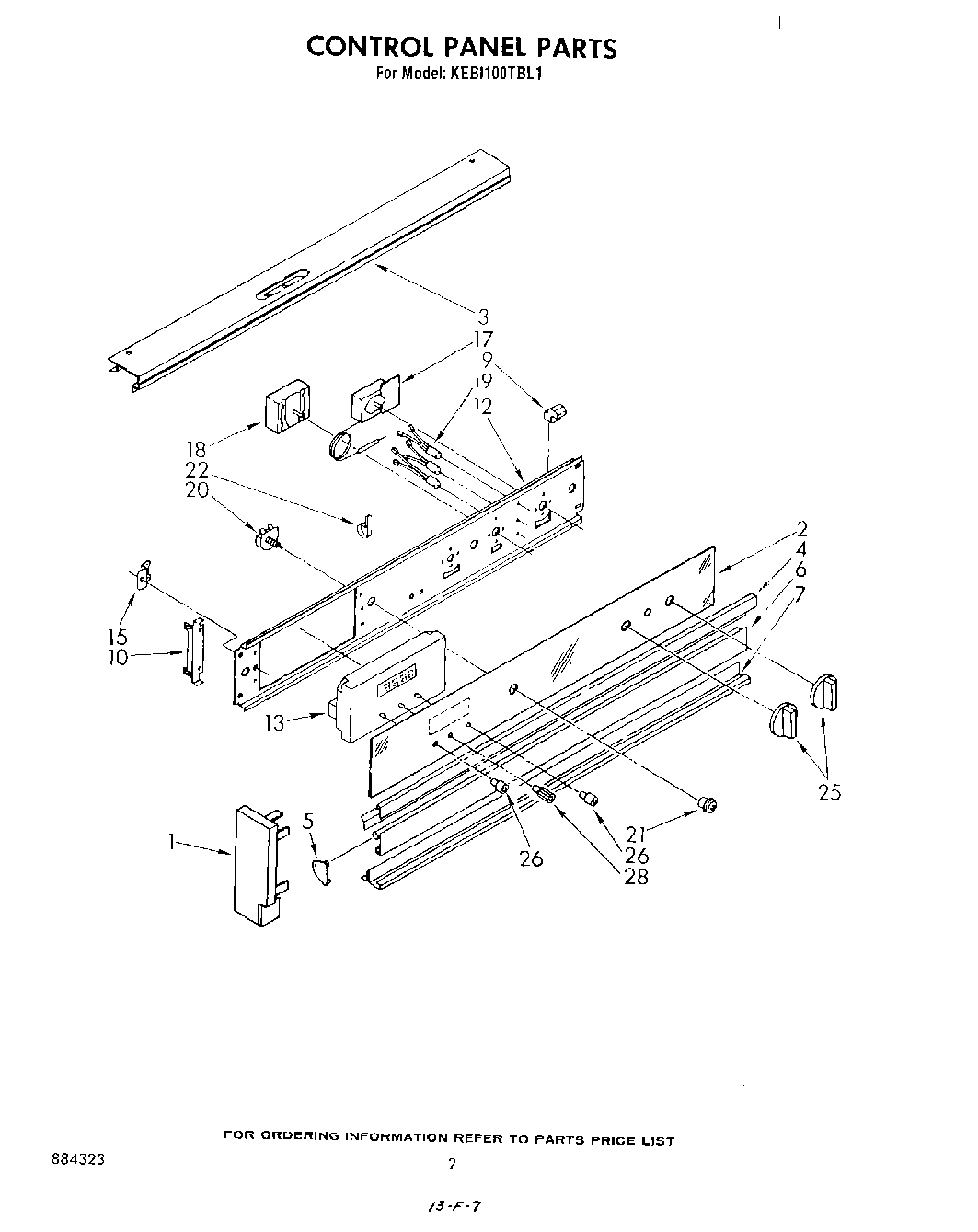

KEBI100TBL1 02 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT3147381
WPL LIT3148806
Book, Cooking Guide
WPL LIT884323
Guide, Use & Care
1End Cap. L.H.
1End Cap R.H.
2Control Panel, Glass
3screw
3WP488627 Whirlpool Refrigerator Screw
3Rail, Top
4Trim, Center
5End Trim, Vent (Right Side)
5End Trim, Vent (Left Side)
6Screw, 8-32 x 5/16 (2)
6Door, Vent
7Trim, Bottom
7Screw, 10-32 x 1/2
9Retainer, Glass (4)
10WP488234 Whirlpool Air Conditioner Screw
10Bracket, Control Panel (2)
12Bracket, Control
13Timer, Digital
15Bracket, Timer
17Screw (2)
17Thermostat, Oven Pyro
18WP486579 Whirlpool Air Conditioner Screw
18Selector Switch
19Indicator Light (4)
20Switch, Oven Light
20Lockwasher
21Bezel Switch (1)
22WP965173 Whirlpool Dishwasher Screw
22WP308605 Whirlpool Refrigerator Clamp
25Knob, Control (3)
26Knob, Clock (2)
288212471 Whirlpool Oven Paint
28Grease
28Wire, 25` Roll (Black 14 Ga.)
28Wire, 25“ Roll (White 14 GA.)
28Wire, 25` Roll (Red 14 Ga.)
28FOIL, ALUMINUM OVEN (18“ X 25 )
28WPW10208653 Whirlpool Insulation
28Rotisserie Kit
28Knob, Clock
2818 Ga. 80~c Rating (Red)
281
28Wire (12 Ga. 150 c Black)
28Wire (14 Ga. 150 c Yellow)
28Wire (14 Ga. 150 c Orange)
28Wire (14 Ga. 150 c Green)
28Wire (14 Ga. 150 c Brown)
28Wire (14 Ga. 150 c Blue)
28242831 Whirlpool Oven Wire
28Wire (14 Ga. 200 c Brown)
