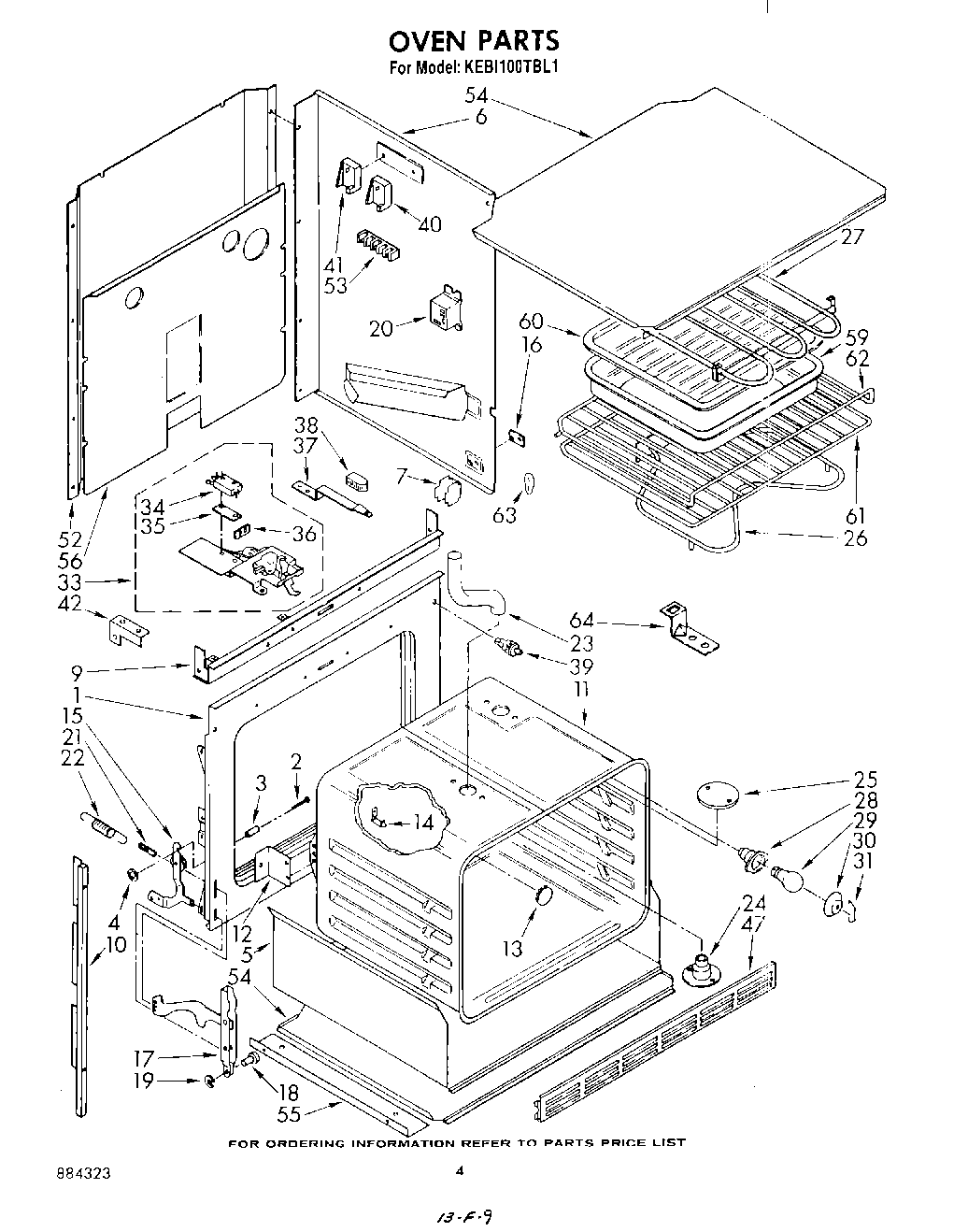

KEBI100TBL1 03 – OVEN

Products

Position	Product
	Screw, 10-32 x 5/8 (4)
	Screw (10-12 x .875)
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (R.H.)
6	Side Wrapper (L.H.)
7	Support, Side Wrapper (4)
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	Oven (30“ Pyro)
12	Bracket, Oven Mounting (2)
13	Plug Button
14	98005642 Whirlpool Clip
15	Hinge Ear, R.H.
15	Hinge Ear, L.H.
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	WPL 3148688
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	SCREW
23	Vent, Extension (2)
24	Eliminator, Smoke
24	WP965173 Whirlpool Dishwasher Screw
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	Socket, Oven Light (Alt.)
28	Socket, Oven Light
28	Socket, Oven Light (Alt.)
29	RANGE ONLY 40W 120V APPL BULB
30	Cover, Light
31	Retainer, Light
33	Latch Assembly
33	Screw (3)
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Screw
36	WP313808 Whirlpool Screw
36	Shield, Latch
37	Screw
37	Latch, Handle
38	Screw, 80 x 5/16
38	Knob, Latch Handle
39	Switch, Door
40	Sw
41	WPL 314215
41	WPL 314211
42	Screw, 10A x 1/2 (2) (Black)
42	WPL 312320
47	Grill, Bottom
47	Grill, Bottom (Screw (3))
52	WPL 311011
53	WP112432 Whirlpool Nut Assembly
53	WP8203546 Whirlpool Terminal Block
54	WPL 310458
55	Angle, Support (2)
56	WPL 310459
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
63	WPL 311982
63	WP488729 Whirlpool Refrigerator Door Screw
64	Bracket, Control Mounting
