KEBI100VBL1 03 – OVEN , LIT/OPTIONAL

KEBI100VBL1 03 – OVEN , LIT/OPTIONAL

Written by

in

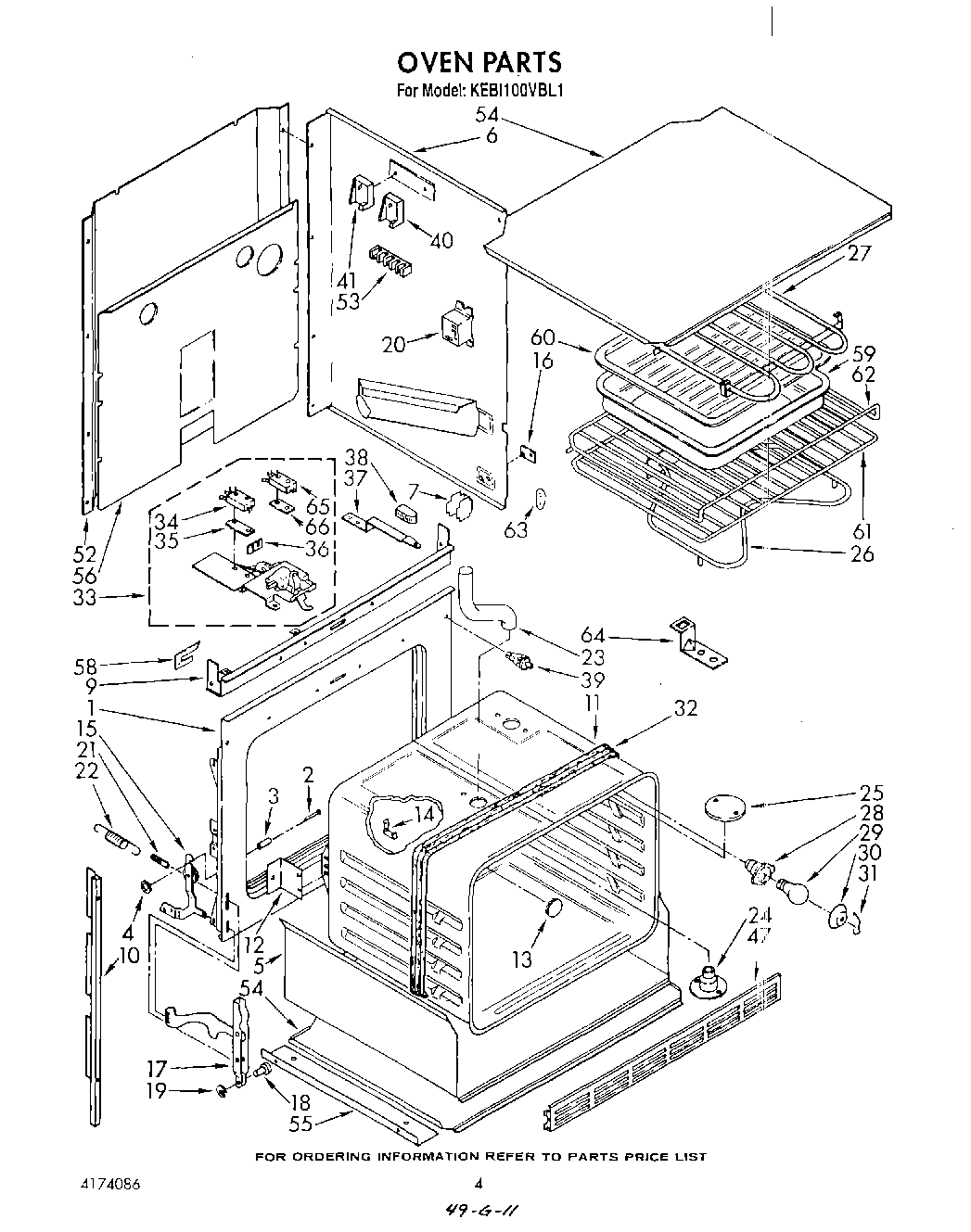

KEBI100VBL1 03 – OVEN , LIT/OPTIONAL

Products

Position	Product
	Instructions, Installation
	WPL LIT4174086
	WPL LIT3149133
	Cookbook
	Guide, Use & Care
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (R.H.)
6	Side Wrapper (L.H.)
7	Support, Side Wrapper (4)
9	Baffle, Top Insulation
10	Screw (4)
10	Side Trim (Left Side)
10	Side Trim (Right Side)
11	Oven 30“
12	Bracket, Oven Mounting (2)
13	Plug Button
14	98005642 Whirlpool Clip
15	Hinge Ear, L.H.
15	Hinge Ear, R.H.
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	WPL 3148688
20	WP313808 Whirlpool Screw
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	SCREW
23	Vent, Extension (2)
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	Screw, 10-32 x 5/8 (4)
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	Socket, Oven Light
29	RANGE ONLY 40W 120V APPL BULB
30	Cover, Light
31	Retainer, Light
32	Seal, Door
33	Latch Assembly
33	Screw (3)
34	Safety Switch
34	Screw
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Screw
37	Latch, Handle
38	Knob, Latch Handle
38	Screw, 80 x 5/16
39	Switch, Door
40	Sw
41	Switch, Bake
41	WPL 314215
47	Grill, Bottom
47	Grill, Bottom (Screw (3))
52	WPL 311011
53	Screw (10-12 x .875)
53	WP8203546 Whirlpool Terminal Block
53	WP112432 Whirlpool Nut Assembly
54	WPL 310458
55	Angle, Support (2)
56	Panel, Back (2)
58	Screw (2)
58	Shield, Air
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
63	WP488729 Whirlpool Refrigerator Door Screw
63	WPL 311982
64	WP965173 Whirlpool Dishwasher Screw
64	Bracket, Control Mounting
65	Switch, Lock
66	WPL 3147864
66	WPL 3149328
66	WPL 310433
66	WPL 310434
