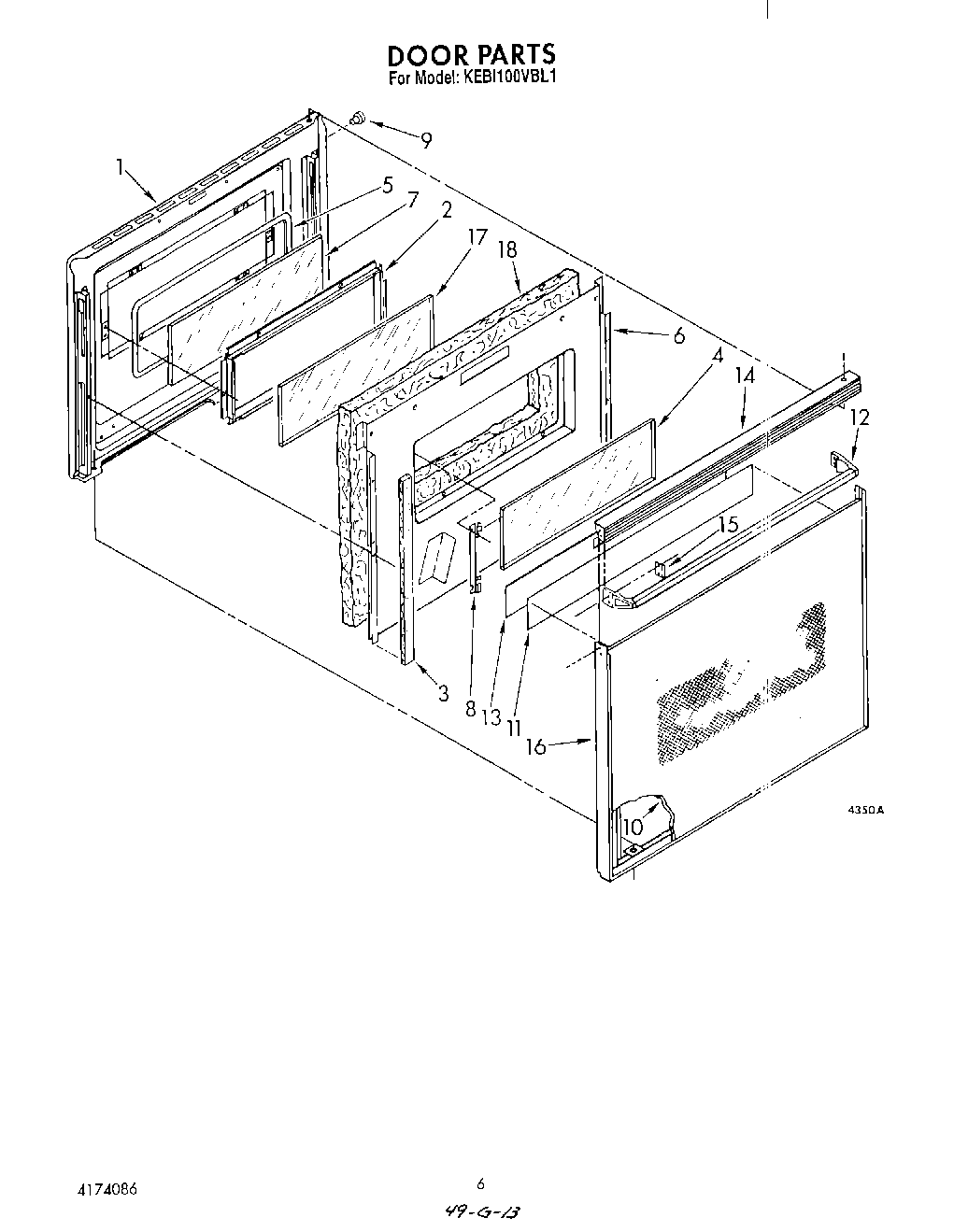

KEBI100VBL1 04 – DOOR

Products

PositionProduct
1Liner, Door
2Frame, Inner
3Seal, Flange (2)
4Glass, Reflective
5Seal, Door
6Retainer,
6Screw
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
9Bumper (4)
10Glass, Panel (Black Model)
11Foil, Door
12Handle, Oven Door
13Sheild, Door
13Screw,
14WP355515 Whirlpool Screw
14Top, Door Frame
15Back Splash (Screw (4) 10AB x 1/2“)
15Clip (2)
16Frame, Door
18Insulation, Door
