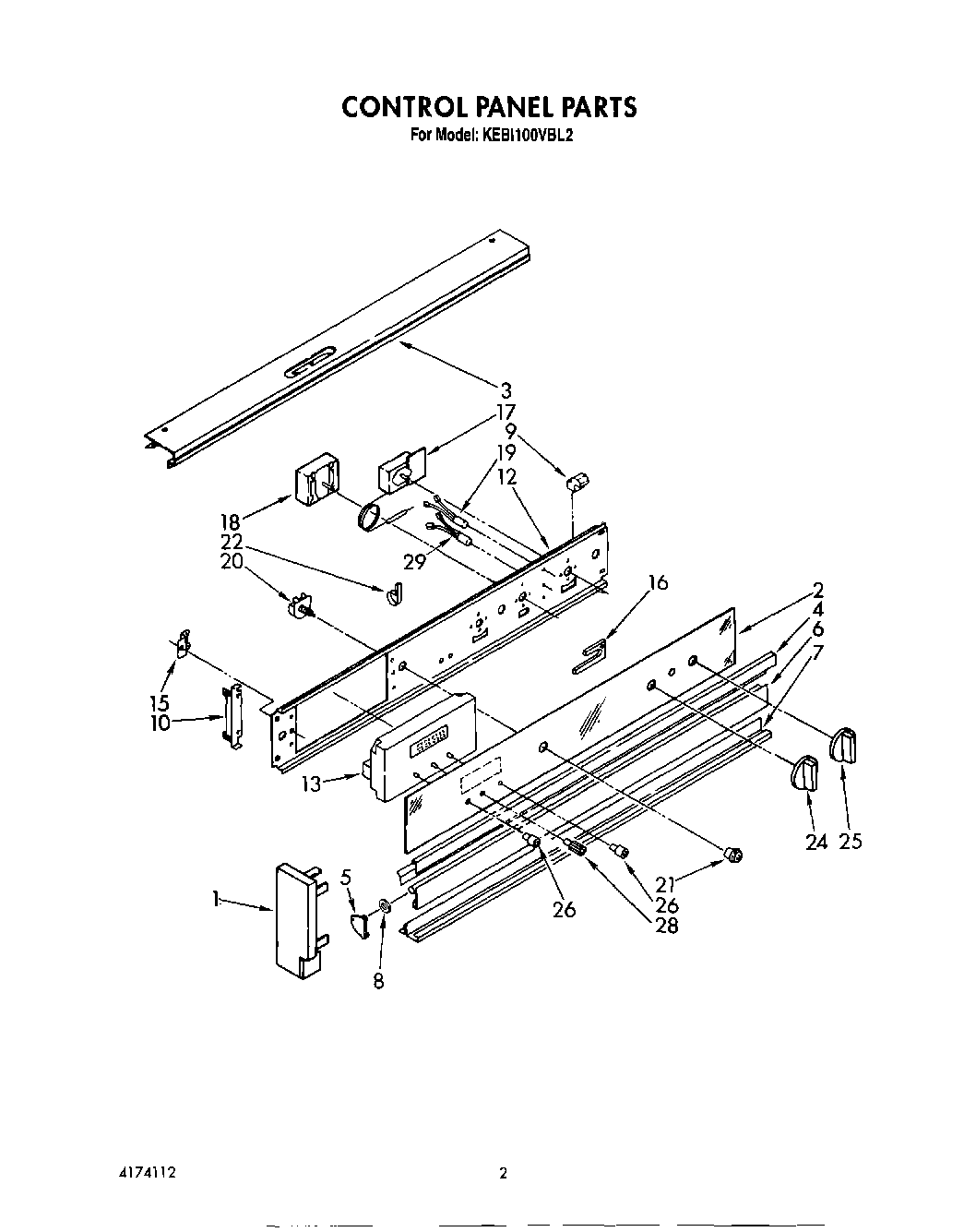

KEBI100VBL2 02 – CONTROL PANEL

Products

Position	Product
1	End Cap R.H.
1	End Cap. L.H.
2	Control Panel, Glass
3	Trim, Top
3	WP488627 Whirlpool Refrigerator Screw
4	Trim, Center
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Screw, 10-32 x 1/2
6	Door, Vent
7	Trim, Bottom
8	End Cap (Washer)
9	Retainer, Glass (4)
10	Bracket, Control Panel (2)
12	Bracket, Control
13	WP965173 Whirlpool Dishwasher Screw
13	Timer, Digital
15	Nut, Timer (4)
15	Bracket, Timer
16	Shield, Air
17	Thermostat, Oven Pyro
17	Screw (2)
18	WP486579 Whirlpool Air Conditioner Screw
18	Selector Switch
19	Indicator Light (4)
20	Lockwasher
20	Switch, Oven Light
20	Screw (2)
21	Bezel Switch (1)
22	Screw (4)
22	WP308605 Whirlpool Refrigerator Clamp
24	Knob, Control
25	Knob, Control
26	Knob, Clock (2)
28	Knob, Clock
29	Light, Indicator Standard Clean
