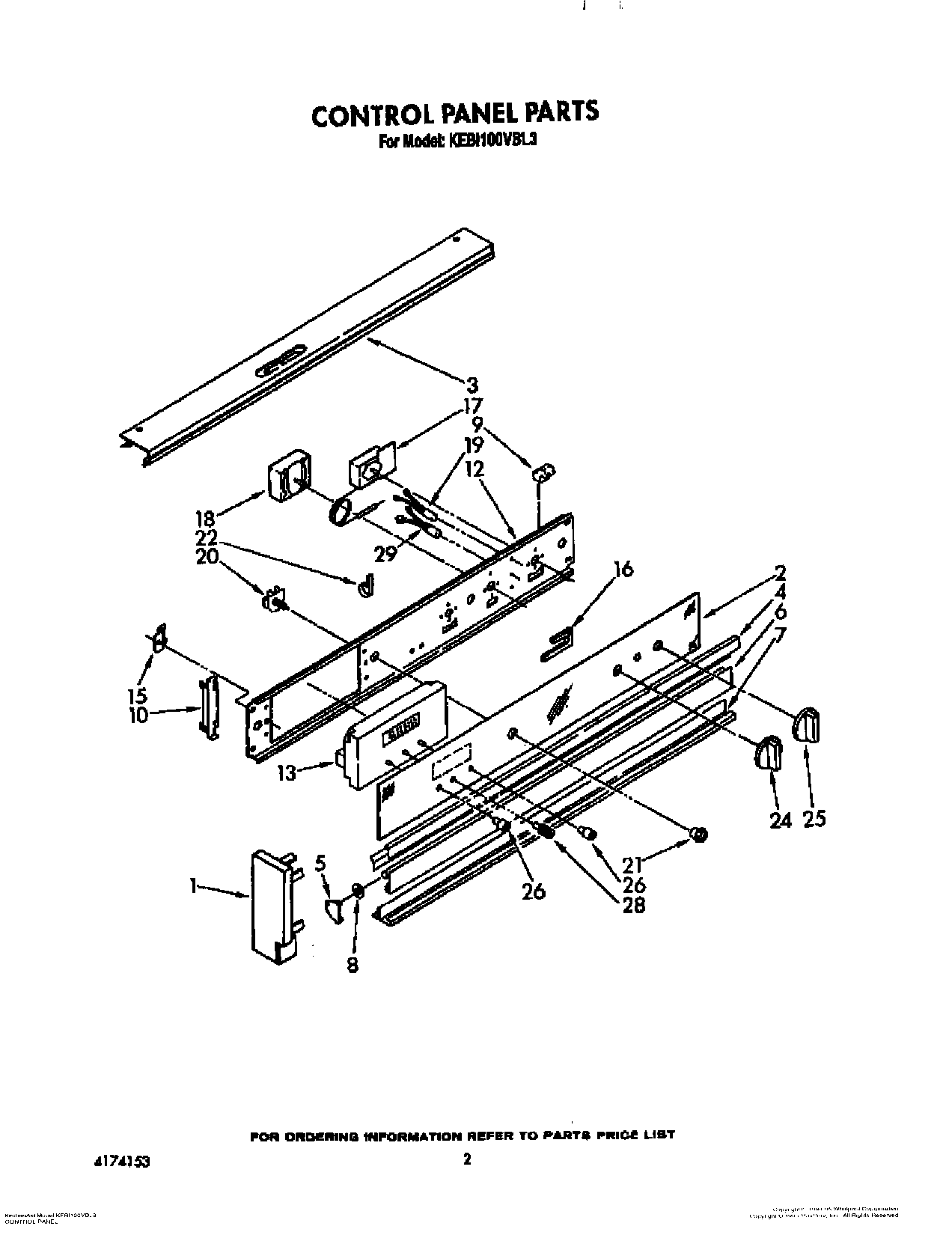

KEBI100VBL3 02 – CONTROL PANELadmin2025-04-26T09:52:09+00:00KEBI100VBL3 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Cap R.H. |
| 1 | End Cap. L.H. |
| 2 | Control Panel, Glass |
| 3 | Trim, Top |
| 3 | WP488627 Whirlpool Refrigerator Screw |
| 4 | Trim, Center |
| 5 | End Trim, Vent (Right Side) |
| 5 | End Trim, Vent (Left Side) |
| 6 | Door, Vent |
| 6 | Screw, 10-32 x 1/2 |
| 7 | Trim, Bottom |
| 8 | End Cap (Washer) |
| 9 | Retainer, Glass (4) |
| 10 | Bracket, Control Panel (2) |
| 12 | Bracket, Control |
| 13 | Timer, Digital |
| 13 | WP965173 Whirlpool Dishwasher Screw |
| 15 | Bracket, Timer |
| 15 | Nut, Timer (4) |
| 16 | Shield, Air |
| 17 | Thermostat, Oven Pyro |
| 17 | Screw (2) |
| 18 | WP486579 Whirlpool Air Conditioner Screw |
| 18 | Selector Switch |
| 19 | Indicator Light (4) |
| 20 | Lockwasher |
| 20 | Switch, Oven Light |
| 21 | Bezel Switch (1) |
| 22 | WP308605 Whirlpool Refrigerator Clamp |
| 22 | Screw (2) |
| 24 | Knob, Control |
| 25 | Knob, Control |
| 26 | Knob, Clock (2) |
| 28 | Knob, Clock |
| 29 | Light, Indicator Standard Clean |
