KEBI100VBL3 03 – OVEN, OPTIONAL

KEBI100VBL3 03 – OVEN, OPTIONAL

Written by

in

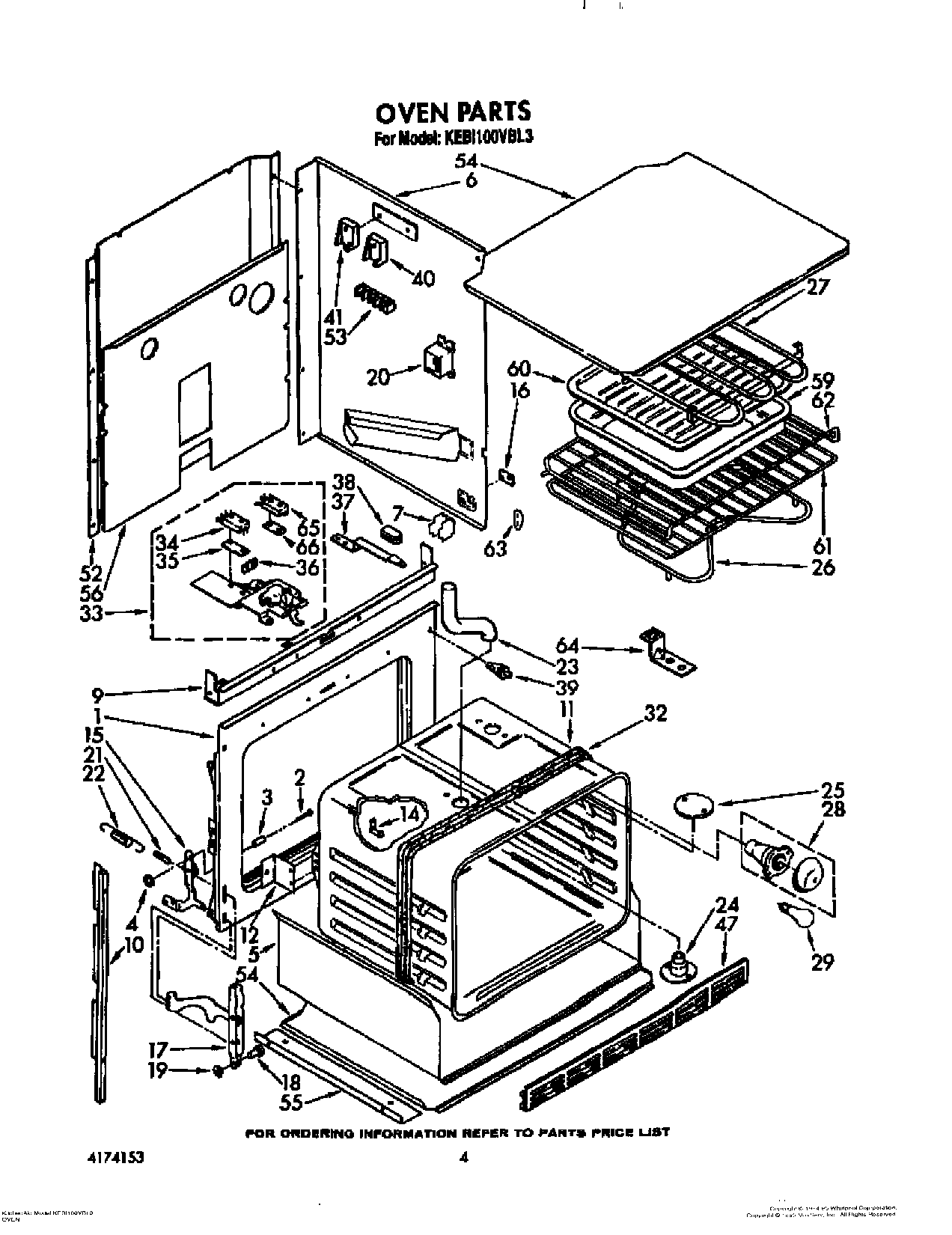

KEBI100VBL3 03 – OVEN, OPTIONAL

Products

Position	Product
	WPL LIT3149133
	Cookbook
	Guide, Use & Care
	WPL LIT4174153
	Instructions, Installation
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (R.H.)
6	Side Wrapper (L.H.)
7	Support, Side Wrapper (4)
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	Oven, 30“
12	Bracket, Oven Mounting (2)
14	98005642 Whirlpool Clip
15	Hinge Ear, L.H.
15	Hinge Ear, R.H.
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	WPL 3148688
20	WP313808 Whirlpool Screw
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Vent, Extension (2)
23	SCREW
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	Screw (2)
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
32	Seal, Door
33	Screw (3)
33	Latch Assembly
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Screw
37	Latch, Handle
38	Screw, 80 x 5/16
38	Knob, Latch Handle
39	Switch, Door
40	Sw
41	WPL 314215
41	Switch, Bake
47	Grill, Bottom (Screw (3))
47	Grill, Bottom
52	WPL 311011
53	WP8203546 Whirlpool Terminal Block
53	WP112432 Whirlpool Nut Assembly
53	Screw (10-12 x .875)
54	WPL 310458
55	Angle, Support (2)
56	Panel, Back (2)
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
63	WP488729 Whirlpool Refrigerator Door Screw
63	WPL 311982
64	Bracket, Control Mounting
64	WP965173 Whirlpool Dishwasher Screw
65	Switch, Lock
66	WPL 3147864
66	WPL 310434
66	WPL 310433
66	WPL 3149328
