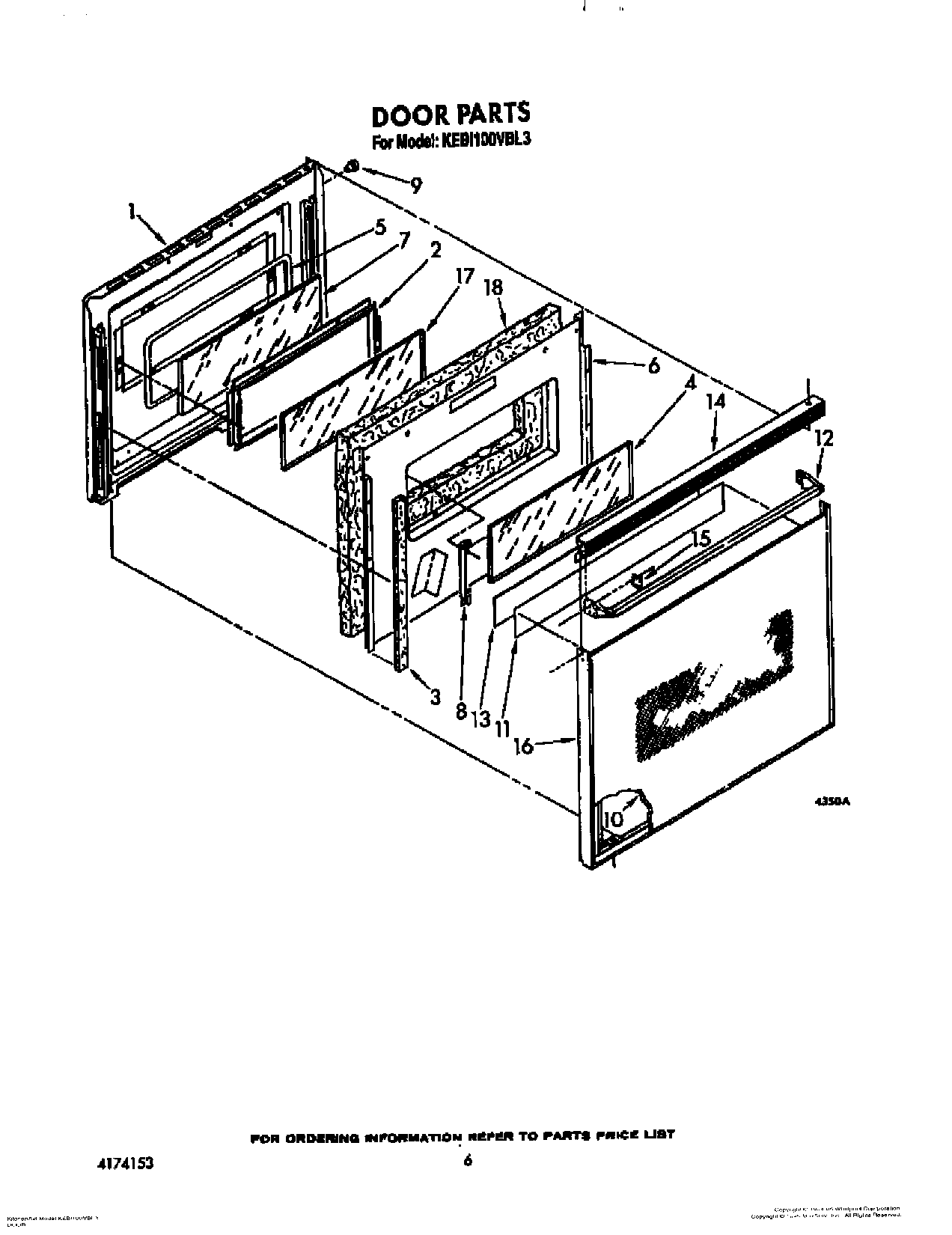

KEBI100VBL3 04 – DOOR

KEBI100VBL3 04 – DOOR

Written by

in

KEBI100VBL3 04 – DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
6	Screw
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door
13	Sheild, Door
13	Screw,
14	WP355515 Whirlpool Screw
14	Top, Door Frame
15	Back Splash (Screw (4) 10AB x 1/2“)
15	Clip (2)
16	Frame, Door
18	Insulation, Door
