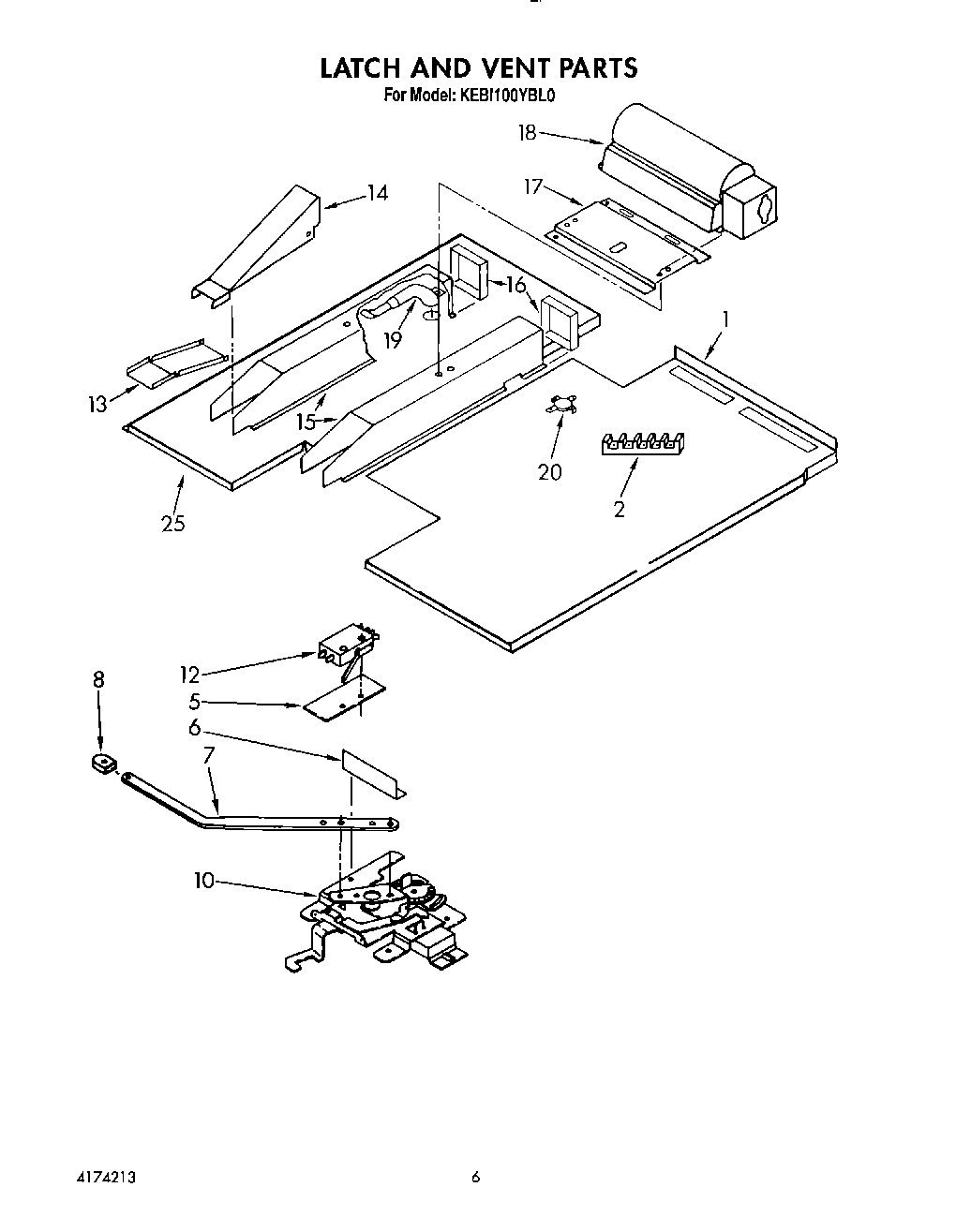

KEBI100YBL0 05 – LATCH AND VENT, OPTIONAL

KEBI100YBL0 05 – LATCH AND VENT, OPTIONAL

Written by

in

KEBI100YBL0 05 – LATCH AND VENT, OPTIONAL

Products

PositionProduct
1Baffle, Vent
2WP8203546 Whirlpool Terminal Block
5Insulator, Switch
5Screw
6Shield, Latch
7Handle, Latch
7Screw
8Screw
8Knob, Latch Handle
10Latch, Mechanism
12Switch, latch
13Nozzle, Vent Bottom
14Nozzle, Vent Top
15Box, Vent (2)
16End, Vent Box
17WP3177991 Whirlpool Screw
17Bracket, Mounting
18Blower, fan
19Tube, Vent
19SCREW
20SPST Thermostat
20WP90767 Whirlpool Screw
25Wire (14 Ga. 150 c Brown)
25Wire (14 Ga. 150 c Green)
25Wire (14 Ga. 150 c Blue)
25Wire (14 Ga. 150 c Orange)
25Wire (14 Ga. 150 c Yellow)
25WPL 3171507
25WPL 591014
25WPL 832985
25WPL 350806
251
25Wire (14 Ga. 200 c Brown)
2518 Ga. 80~c Rating (Red)
25Wire (12 Ga. 150 c Black)
25WP261869 Whirlpool Microwave Paint
25242831 Whirlpool Oven Wire
25Baffle, Vent Mtg.
25Toast
25Golden Harvest (Uncut)
25Golden Harvest
2572113 Whirlpool Touch-Up Paint
2572110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
25350930 Whirlpool White Spray Paint
25Almond (Uncut)
25Leveler (Thinner)
25WP72107 Whirlpool Touchup
25799344 Whirlpool Refrigerator Paint
2572017 Whirlpool Appliance Touch-Up Paint White
25Paint, Spray (13 Oz.) (Platinum)
25Enamal, Toast (1 Qt. Uncut)
25Wire, 25“ Roll (White 14 GA.)
25WP482338 Whirlpool Refrigerator Adhesive
2572032 Whirlpool Touch Up Paint Black
25285006 Whirlpool Spray
25Wire, 25` Roll (Red 14 Ga.)
25Wire, 25` Roll (Black 14 Ga.)
25WPL 799832
25WP488729 Whirlpool Refrigerator Door Screw
25350942 Whirlpool Spray Paint
25WPL 72112
25Platinum (Uncut)
25350956 Whirlpool Spray Assembly
