KEBI100YBL1 04 – LATCH AND VENT, OPTIONAL

KEBI100YBL1 04 – LATCH AND VENT, OPTIONAL

Written by

in

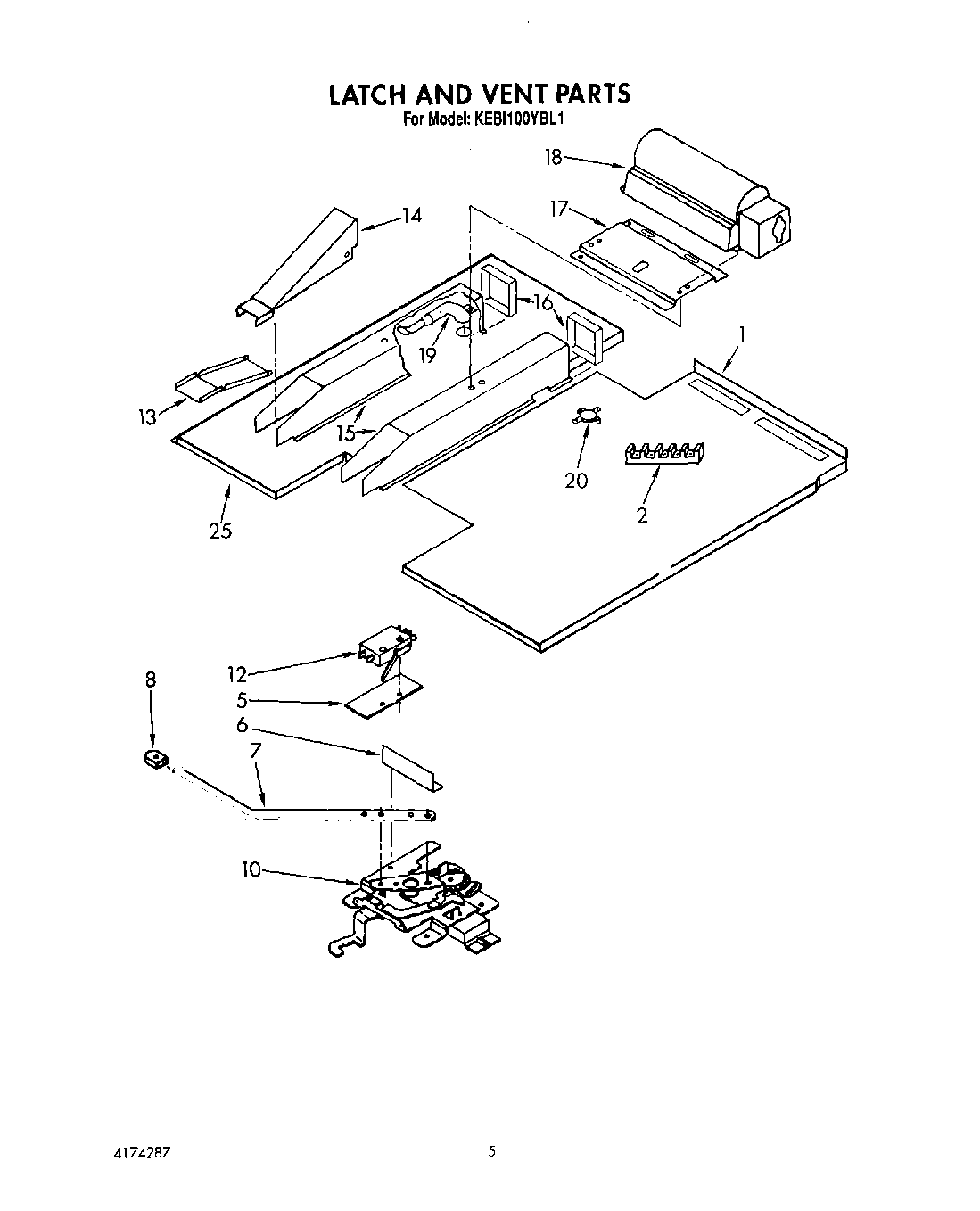

KEBI100YBL1 04 – LATCH AND VENT, OPTIONAL

Products

PositionProduct
1Baffle, Vent
2WP8203546 Whirlpool Terminal Block
5Insulator, Switch
5Screw
6Shield, Latch
7Handle, Latch
7Screw
8Screw
8Knob, Latch Handle
10Latch, Mechanism
12Switch, latch
13Nozzle, Vent Bottom
14Nozzle, Vent Top
15Box, Vent (2)
16Screw
16End, Vent Box
17Bracket, Mounting
17WP3177991 Whirlpool Screw
18Blower, fan
19Tube, Vent
19SCREW
20SPST Thermostat
25Wire (14 Ga. 150 c Brown)
25Wire (14 Ga. 150 c Blue)
25Wire (14 Ga. 150 c Green)
25Wire (14 Ga. 150 c Orange)
25Wire (14 Ga. 150 c Yellow)
25WPL 3171507
25WPL 832985
25WPL 591014
25WPL 350806
251
25Wire (14 Ga. 200 c Brown)
2518 Ga. 80~c Rating (Red)
25Wire (12 Ga. 150 c Black)
25WP261869 Whirlpool Microwave Paint
25242831 Whirlpool Oven Wire
25Toast
25Golden Harvest (Uncut)
25Golden Harvest
2572113 Whirlpool Touch-Up Paint
2572110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
25350930 Whirlpool White Spray Paint
25Almond (Uncut)
25Leveler (Thinner)
25WP72107 Whirlpool Touchup
25799344 Whirlpool Refrigerator Paint
2572017 Whirlpool Appliance Touch-Up Paint White
25Paint, Spray (13 Oz.) (Platinum)
25Enamal, Toast (1 Qt. Uncut)
25Platinum (Uncut)
25Baffle, Vent Mtg.
25285006 Whirlpool Spray
25WP482338 Whirlpool Refrigerator Adhesive
2572032 Whirlpool Touch Up Paint Black
25Wire, 25“ Roll (White 14 GA.)
25Wire, 25` Roll (Red 14 Ga.)
25Wire, 25` Roll (Black 14 Ga.)
25WPL 799832
25WP488729 Whirlpool Refrigerator Door Screw
25350942 Whirlpool Spray Paint
25WPL 72112
25350956 Whirlpool Spray Assembly
