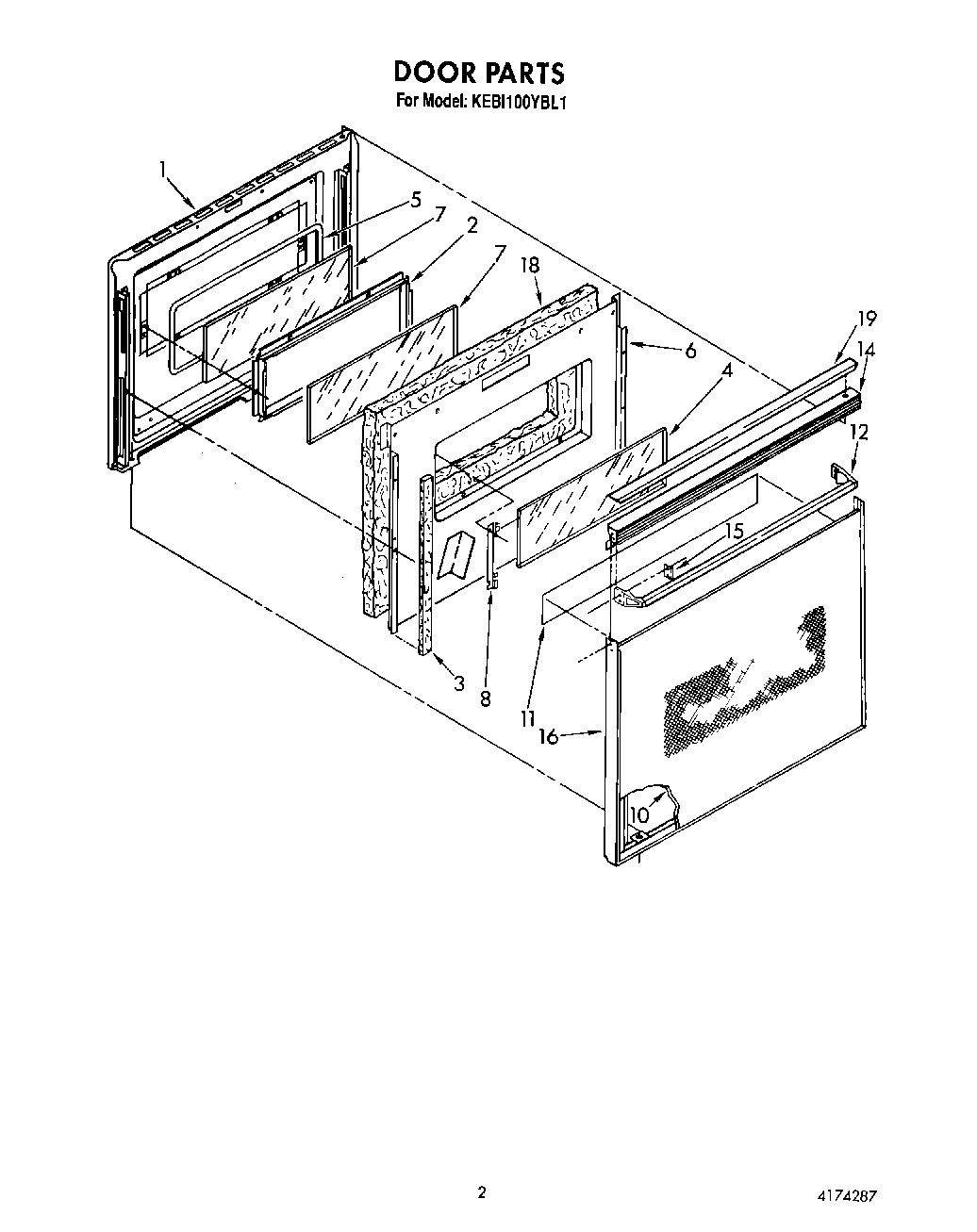

KEBI100YWH1 02 – DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Screw
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door (Black Model)
12	Handle, Oven Door (White Model)
14	WP355515 Whirlpool Screw
14	Top, Door (White Model)
14	Top, Door (Black Model)
15	Clip, Mtg (2)
16	Frame, Door
18	Insulation, Door
19	Cap, Top
19	WP308685 Whirlpool Microwave Screw
