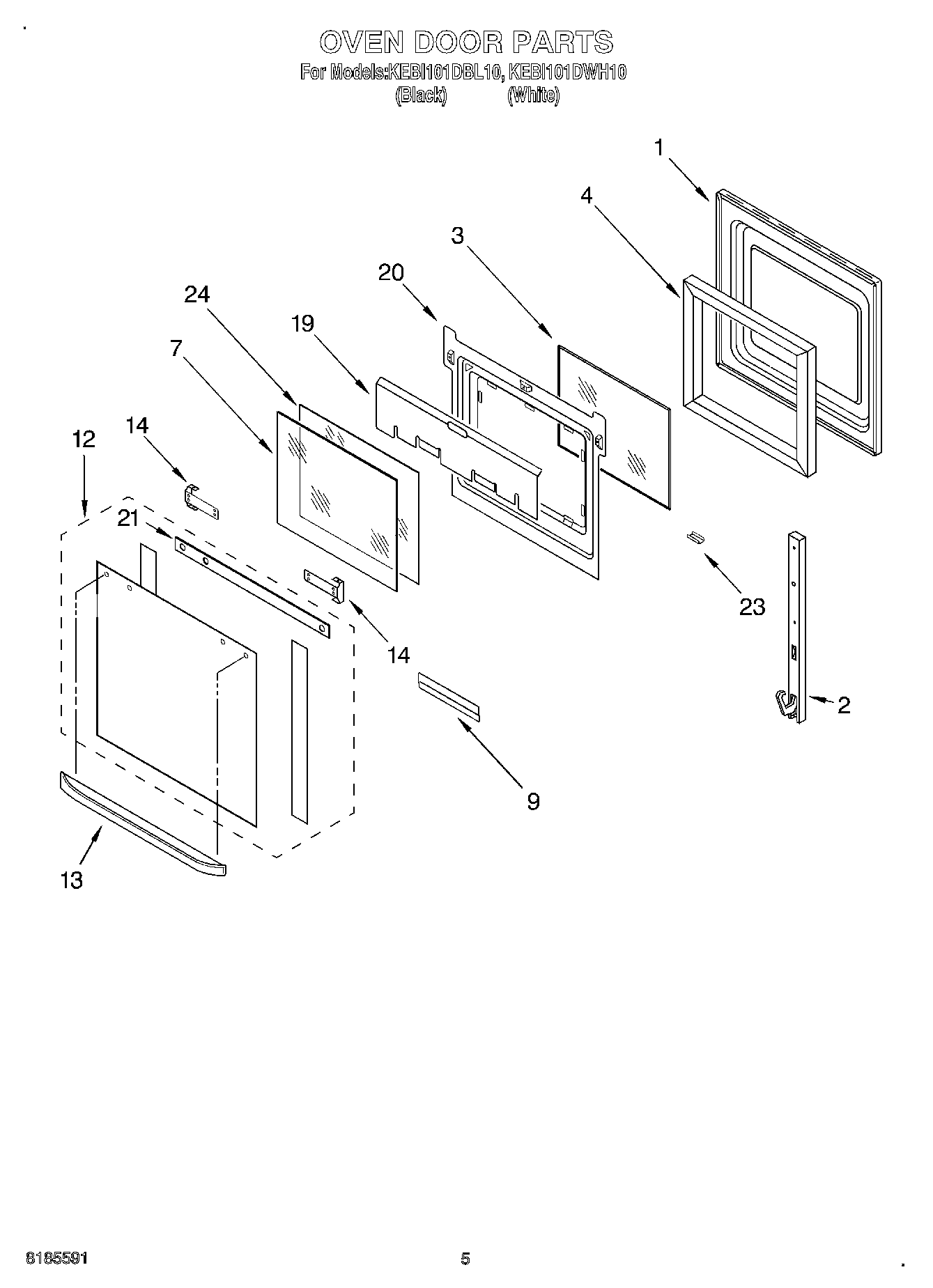

KEBI101DWH10 04 – OVEN DOORadmin2025-04-26T09:53:12+00:00KEBI101DWH10 04 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | WP9759413 Whirlpool Door Liner |
| 2 | Screw, (2) |
| 2 | WP4455525 Whirlpool Oven Door Hinge |
| 3 | WP4449259 Whirlpool Glass Window |
| 4 | WP4451722 Whirlpool Door Insulation Assembly |
| 7 | WP4449263 Whirlpool Inner Door Glass |
| 9 | Retainer, Glass |
| 12 | WP9759641 Whirlpool Outer Door Glass |
| 12 | Door Glass, Assy (White Model) |
| 13 | Door Handle (Black Model) |
| 13 | Handle, Door (White Model) |
| 14 | Screw |
| 14 | Bracket, Handle |
| 19 | Shield, Heat |
| 20 | Retainer, Glass |
| 20 | WP4449809 Whirlpool Screw |
| 21 | Seal, Door Top |
| 23 | Clip, Retainer (Black Model) |
| 23 | Clip, Retainer (White Model) |
| 24 | Glass, Inner |
