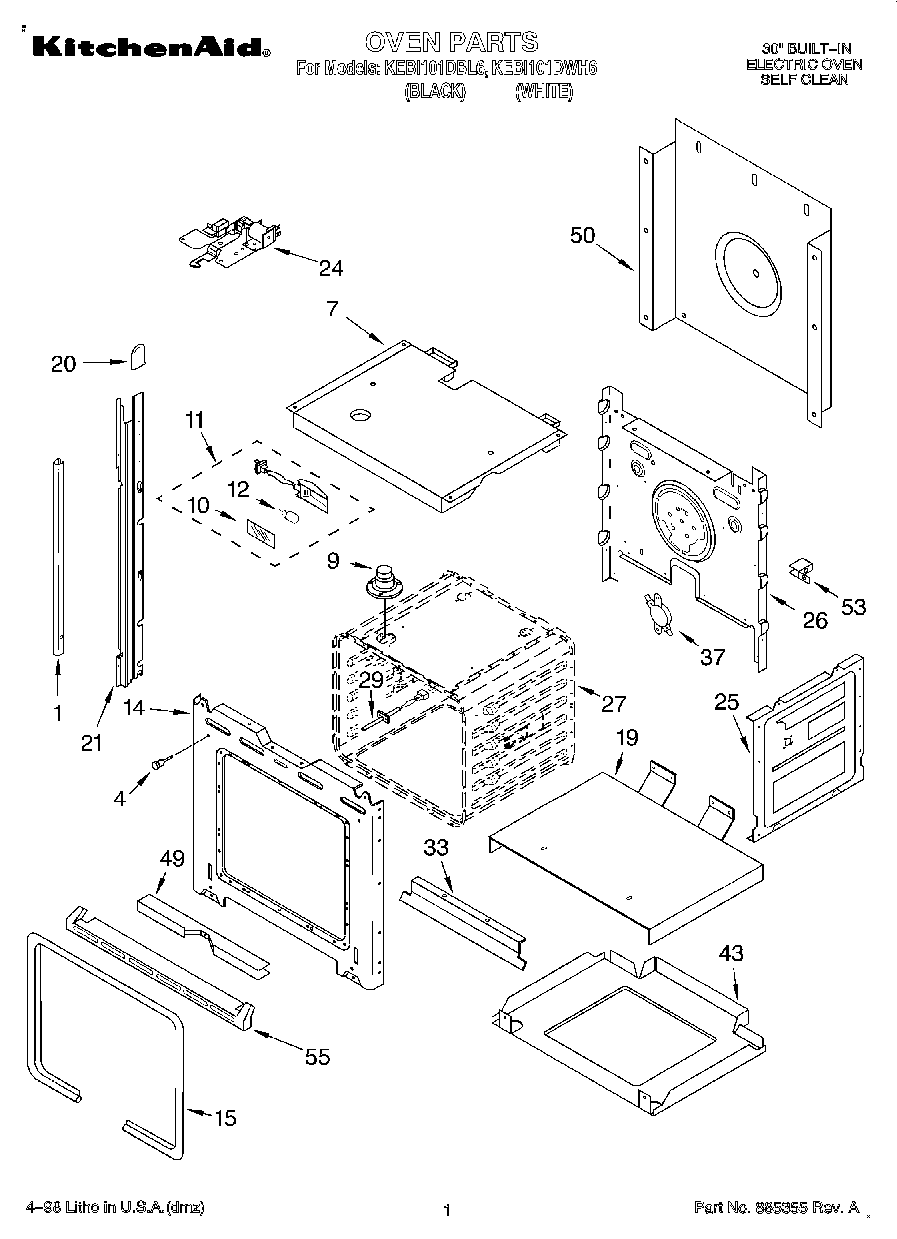

KEBI101DWH6 01 – OVEN

KEBI101DWH6 01 – OVEN

Written by

in

KEBI101DWH6 01 – OVEN

Products

PositionProduct
1Trim, Side (RH Black)
1Trim, Side (LH White Screw)
1WP8281236 Whirlpool Screw
1Trim, Side (White)
1Trim, Side (LH Black)
1Trim, Side (White, Right)
44448520 Whirlpool Oven Bumper
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Frame, Front
14WP4450118 Whirlpool Nut
14Screw
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21WP4448444 Whirlpool Grommet
21814372 Whirlpool Oven Rail Mount
21814371 Whirlpool Oven Rail Mount
24Solenoid
24Latch Assembly
24Microswitch
24Micro Switch N.C.
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
33WPL 4451619
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
53WPL 4449845
53WP4449809 Whirlpool Screw
55Trim, Bottom (Black Model)
55W11684730 Whirlpool Insulation
55WPL 4450365
55Screw, (2)
55Trim, Bottom (White Model)
