KEBI140SBL0 03 – CONTROL FRAME

KEBI140SBL0 03 – CONTROL FRAME

Written by

in

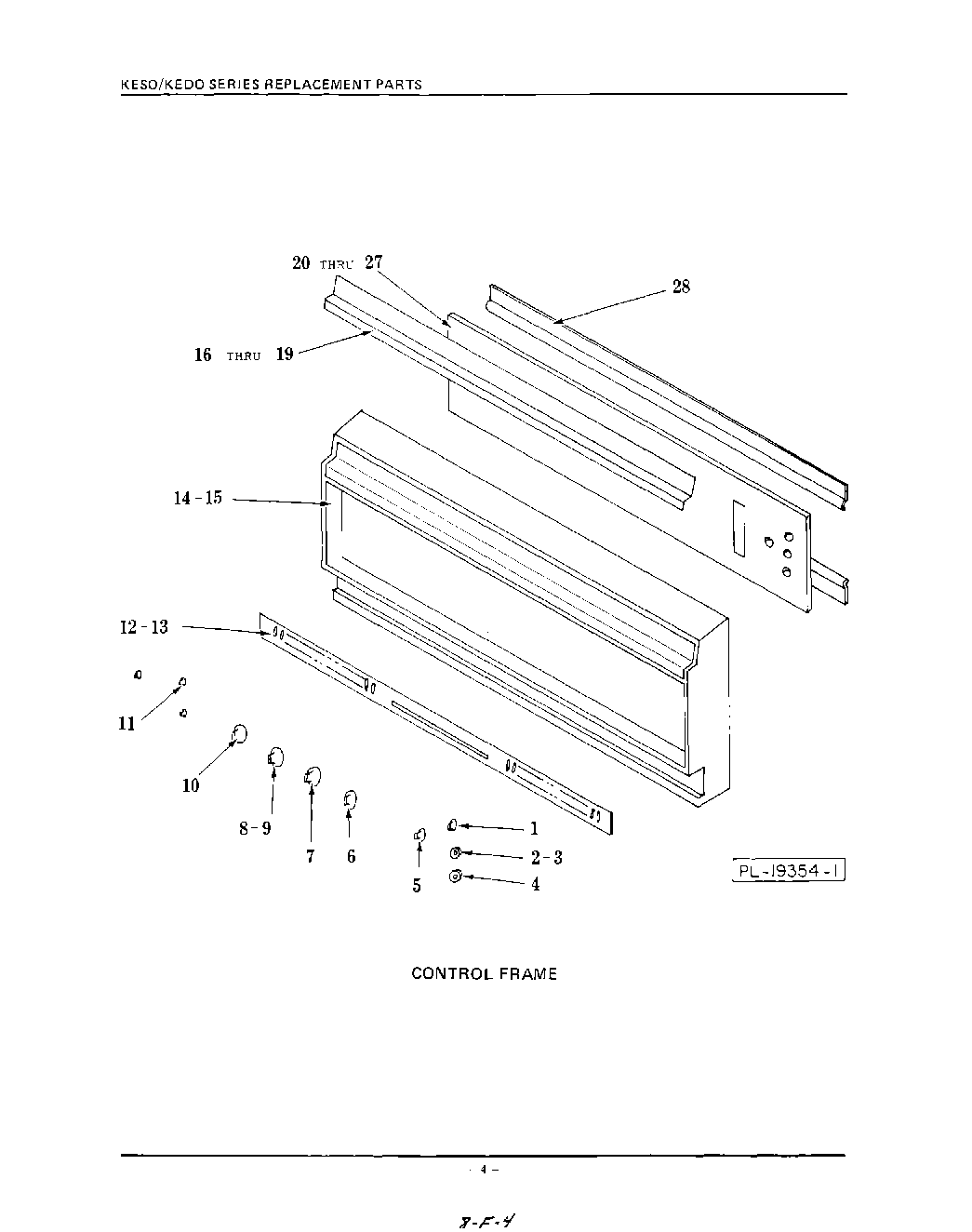

KEBI140SBL0 03 – CONTROL FRAME

Products

PositionProduct
4Bezel, Oven Light Switch KESO-145/175, KEDO-245/275
5Knob, Meat Probe Indicator KESO-145/175, KEDO-245/275
8Knob, Thermostat, Single or Upper Oven KESO-140/170, KEDO-240/270
10Knob – Selector Switch, Single or Upper Oven
11Knob, Clock
12Vent Insert KESO-140/145, KEDO-240/245
13Vent Insert KESO-170/175, KEDO-270/275
14Control Frame KESO-140/145, KEDO-240/245
15Control Frame KESO-170/175, KEDO-270/275
16Top Insert KESO-140/240
17Top Insert KESO-145/245
18Top Insert KESO-170/270
19Top Insert KESO-175/275
20Control Panel Glass KESO-140
21Control Panel Glass KESO-145
22Control Panel Glass KESO-170
23Control Panel Glass KESO-175
24Control Panel Glass KEDO-240
25Control Panel Glass KEDO-245
26Control Panel Glass KEDO-270
27Control
28WPL CC22040
