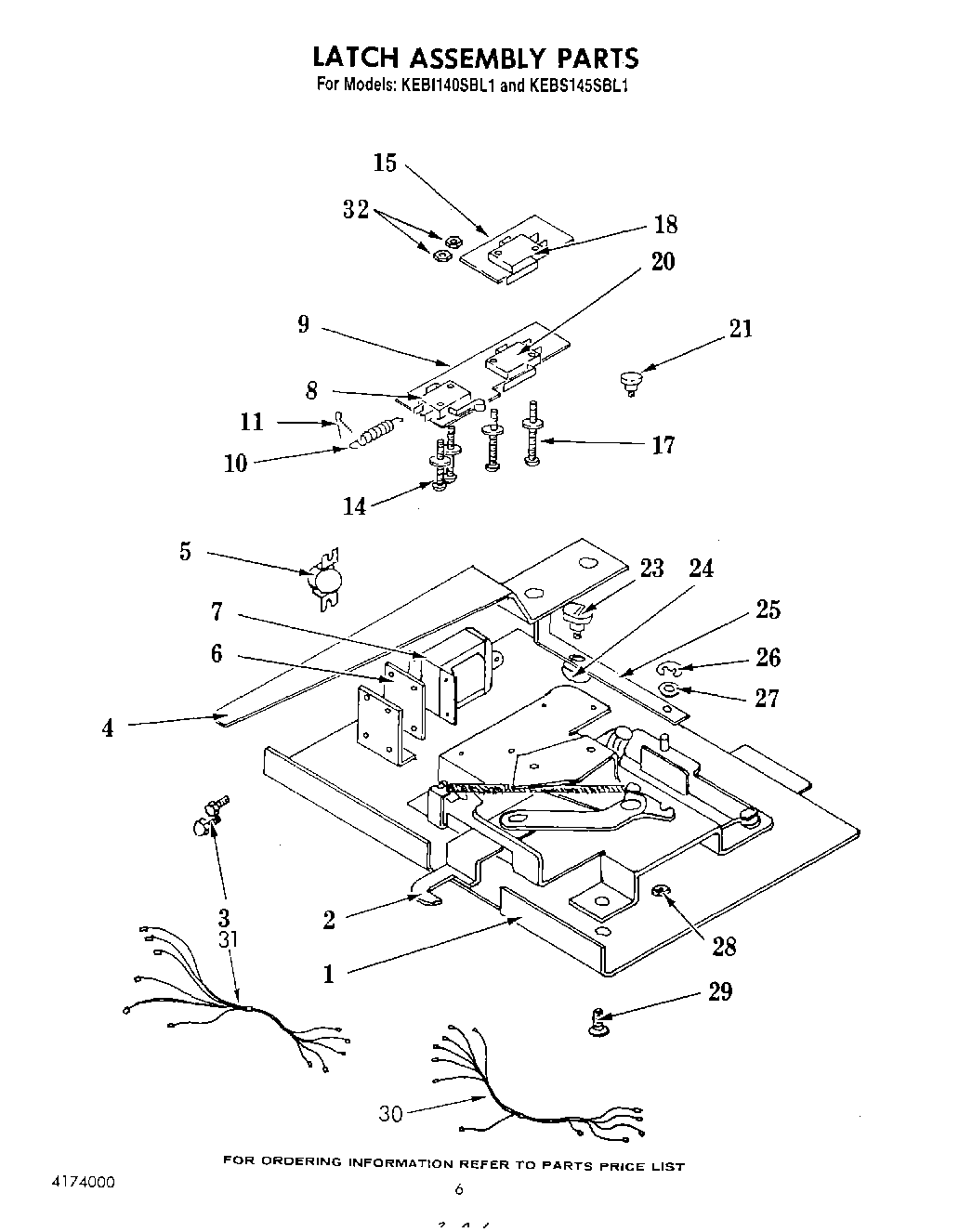

KEBI140SBL1 06 – LATCH ASSEMBLY
Written by
in
KEBI140SBL1 06 – LATCH ASSEMBLY
Products
Position
Product
1
Latch Mounting Plate
2
Mechanism, Latch
3
Screw, No.10-24 X 3/8“ Hex TCS
4
Latch Lever
5
Thermal Switch
6
Solenoid Spacer
7
Solenoid
8
Latch Switch With Roller
9
Insulator (2)
10
Solenoid Spring
11
Cotter Pin
14
Screw, 4-40 X 5/8 Hex
15
Insulator
17
Screw, No.4-40 X 1 1/4“ Hex
20
Latch Switch (2)
20
Latch Switch, Normally Open
21
Shoulder Screw Latch Lever Upper Oven
23
Shoulder Screw, Actuator Arm
24
Spacer, Actuator Arm
25
Actuator Arm
26
Retaining Ring
27
Washer, Flat
28
Nut, No.10-24 Hex Kep
29
Screw, No.10-24 X 3/8“ PTHMS
30
Wiring Harness, Latch Switch ((Use With Robert-Shaw Thermostat) Model KEBS145SBL1)
30
Wiring Harness, Latch Switch ((Use With G.E. Thermostat) Model KEBS145SBL1)
31
Wiring Harness, Latch Switch
32
Nut (2)
←
