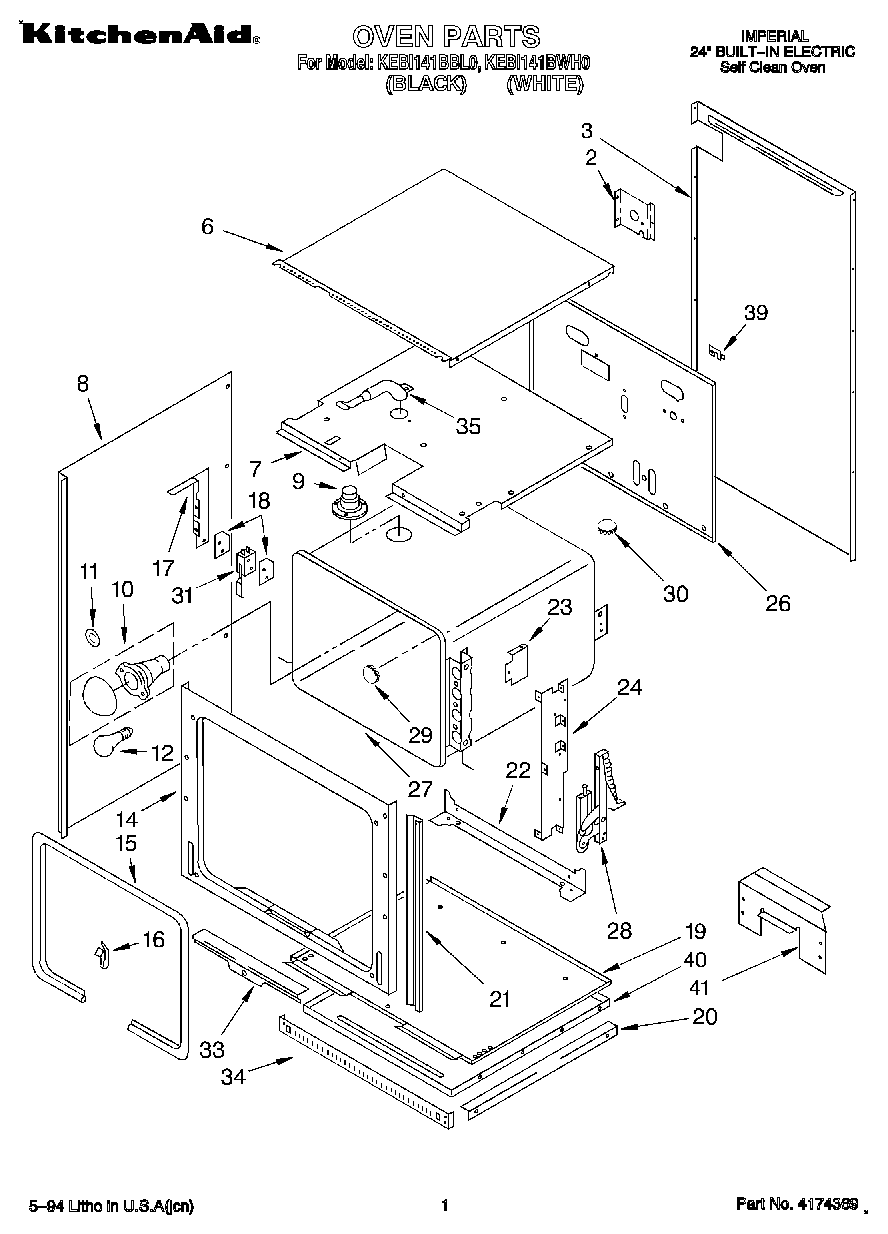

KEBI141BWH0 01 – OVEN, OPTIONAL

KEBI141BWH0 01 – OVEN, OPTIONAL

Written by

in

KEBI141BWH0 01 – OVEN, OPTIONAL

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Screw (2)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Trim, Door Side (2) (Black Model)
21	Side Trim, Door (2) (White Model)
22	Support, Oven
23	Screw (6)
23	Shield, Radiation
24	Bracket, Hinge
26	Back, Module
26	Screw
27	Liner, Oven
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Switch, Door
31	Screw (2)
31	Nut (2)
33	Retainer, Seal
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
34	Trim, Lower Vent (White Model)
34	Trim, Lower Vent (Black Model)
35	Tube, Vent
39	Screw
39	Cover, Cap Tube
40	Bottom, Oven
41	Wire (12 Ga. 150 c Black)
41	Wire (14 Ga. 150 c Orange)
41	Wire (14 Ga. 150 c Green)
41	Wire (14 Ga. 150 c Brown)
41	Wire (14 Ga. 150 c Blue)
41	WP261869 Whirlpool Microwave Paint
41	242831 Whirlpool Oven Wire
41	350930 Whirlpool White Spray Paint
41	Wire (14 Ga. 150 c Yellow)
41	Golden Harvest
41	18 Ga. 80~c Rating (Red)
41	WPL 832985
41	WPL 591014
41	WPL 350806
41	WPL 3185550
41	WPL 3182584
41	WPL 3177870
41	1
41	Wire (14 Ga. 200 c Brown)
41	350956 Whirlpool Spray Assembly
41	72017 Whirlpool Appliance Touch-Up Paint White
41	799344 Whirlpool Refrigerator Paint
41	WPL 72112
41	350942 Whirlpool Spray Paint
41	WPL 799832
41	Wire, 25` Roll (Black 14 Ga.)
41	Wire, 25` Roll (Red 14 Ga.)
41	Wire, 25“ Roll (White 14 GA.)
41	285006 Whirlpool Spray
41	72032 Whirlpool Touch Up Paint Black
41	Platinum (Uncut)
41	Enamal, Toast (1 Qt. Uncut)
41	Paint, Spray (13 Oz.) (Platinum)
41	WP72107 Whirlpool Touchup
41	Leveler (Thinner)
41	Almond (Uncut)
41	WP3177991 Whirlpool Screw
41	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41	72113 Whirlpool Touch-Up Paint
41	Golden Harvest (Uncut)
41	Toast
41	WP482338 Whirlpool Refrigerator Adhesive
