KEBI141BWH2 02 – CONTROL PANEL, LITERATURE

KEBI141BWH2 02 – CONTROL PANEL, LITERATURE

Written by

in

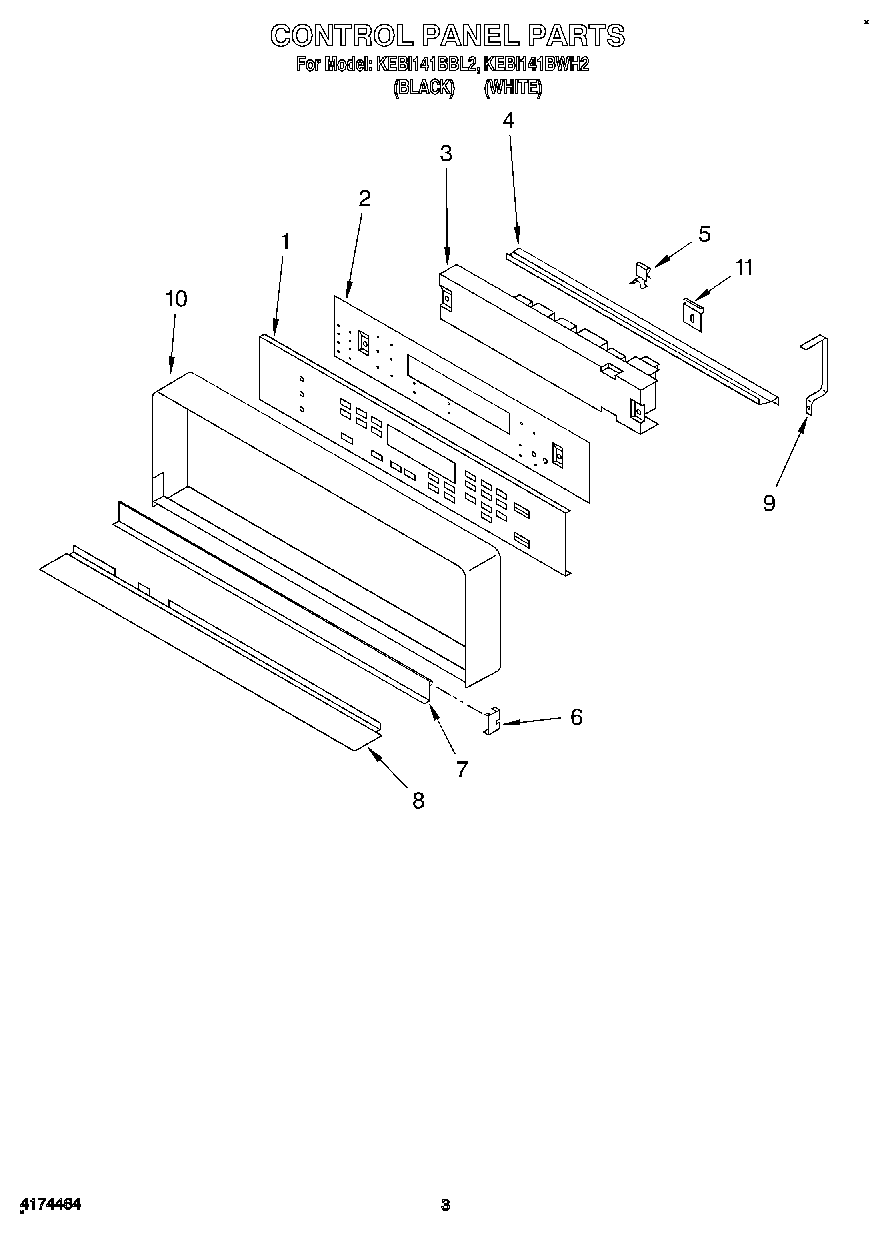

KEBI141BWH2 02 – CONTROL PANEL, LITERATURE

Products

PositionProduct
Installation Instructions
Use & Care Guide
Tech Sheet
1Membrane, Switch (White Model)
1Membrane, Switch (Black Model)
2Bracket, Mounting Switch Membrane
3Microcomputer
3Screw (2)
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Black)
7Door, Latch Handle (White)
8Trim, Panel
8Screw
9Screw (2)
9Bracket (2)
10Frame, Control Panel (Black Model)
10Frame, Control Panel (White Model)
11Clip, Control Frame
11Screw
