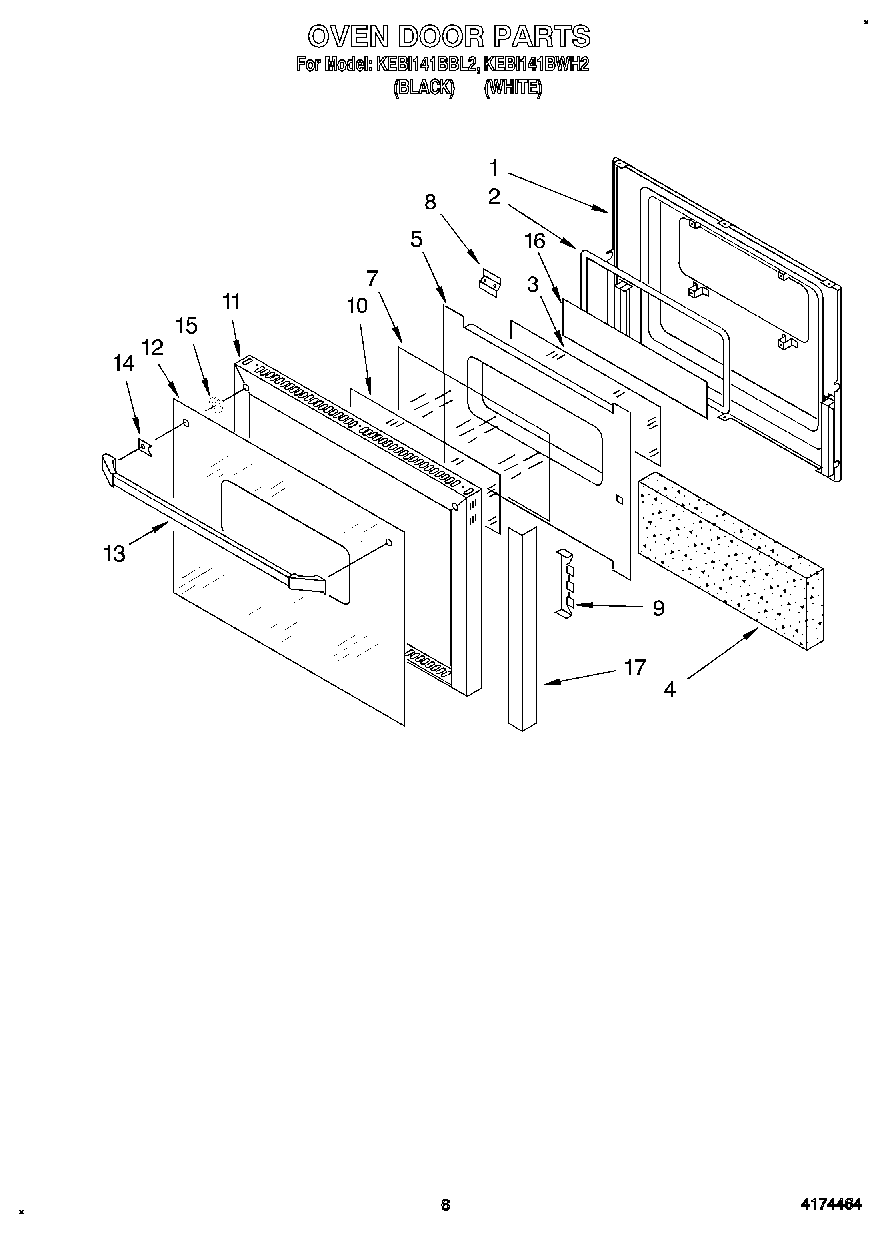

KEBI141BWH2 05 – OVEN DOOR

KEBI141BWH2 05 – OVEN DOOR

Written by

in

KEBI141BWH2 05 – OVEN DOOR

Products

Position	Product
1	Screw, Black (2)
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Retainer, Insulation
7	Glass, Reflective
8	Latch, Strike
9	Retainer, Glass
9	Screw
10	Glass, Clear
11	Frame, Door (White Model)
11	Frame, Door (Black Model)
12	Glass, Door (Black Model)
12	Glass, Door (White Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Spacer, Door Handle
15	Bushing, Door Handle
16	Screw
16	Foil-Adhesive
17	Foil-Adhesive
