KEBI141BWH3 02 – CONTROL PANEL, LITERATURE

KEBI141BWH3 02 – CONTROL PANEL, LITERATURE

Written by

in

KEBI141BWH3 02 – CONTROL PANEL, LITERATURE

Products

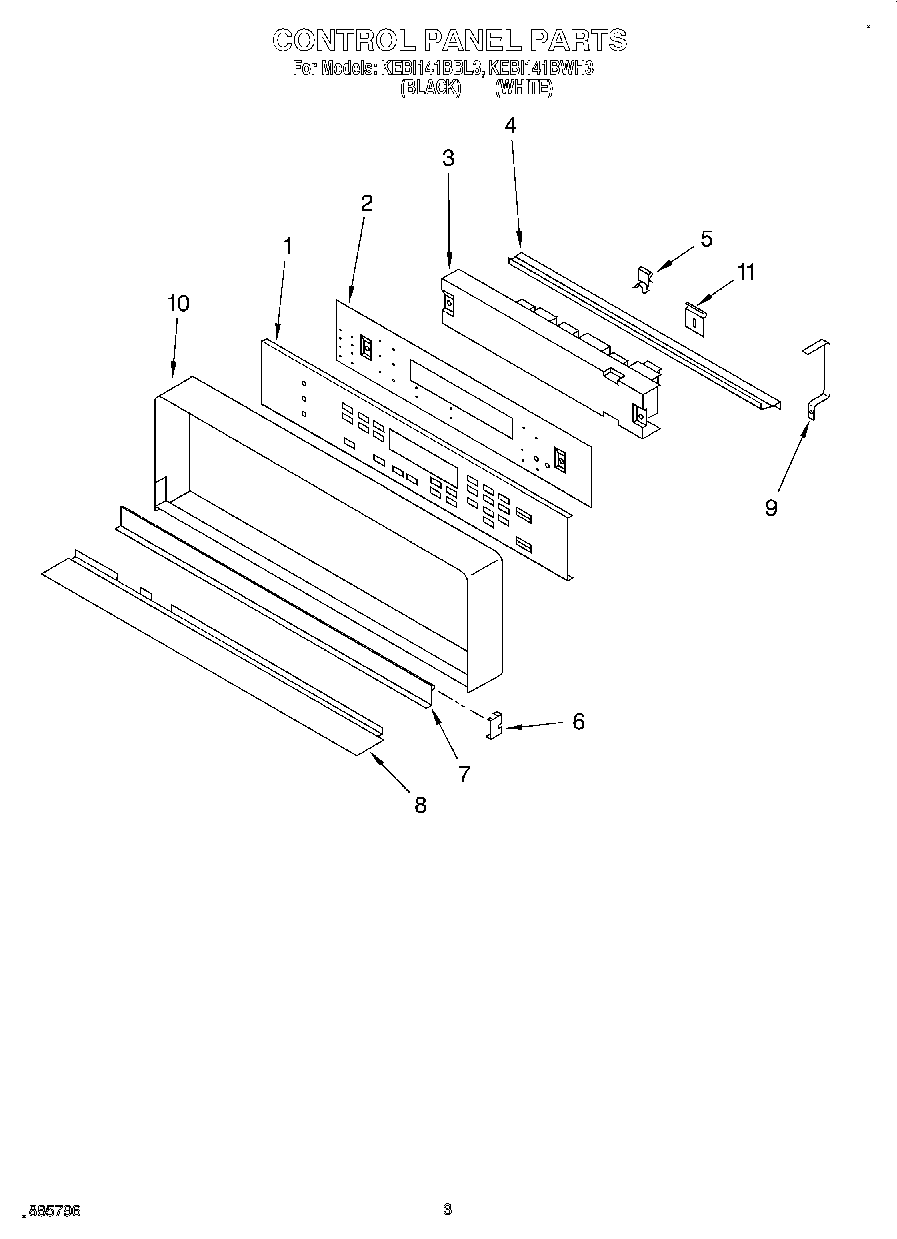

PositionProduct
Installation Instructions
Use & Care Guide
Tech Sheet
1Membrane, Switch (White Model)
1Membrane, Switch (Black Model)
2Bracket, Mounting Switch Membrane
3Microcomputer
3Screw (2)
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Black)
7Door, Latch Handle (White)
8Trim, Panel
8Screw
9Bracket (2)
9Screw (2)
10Frame, Control Panel (Black Model)
10Frame, Control Panel (White Model)
11Clip, Control Frame
11Screw
