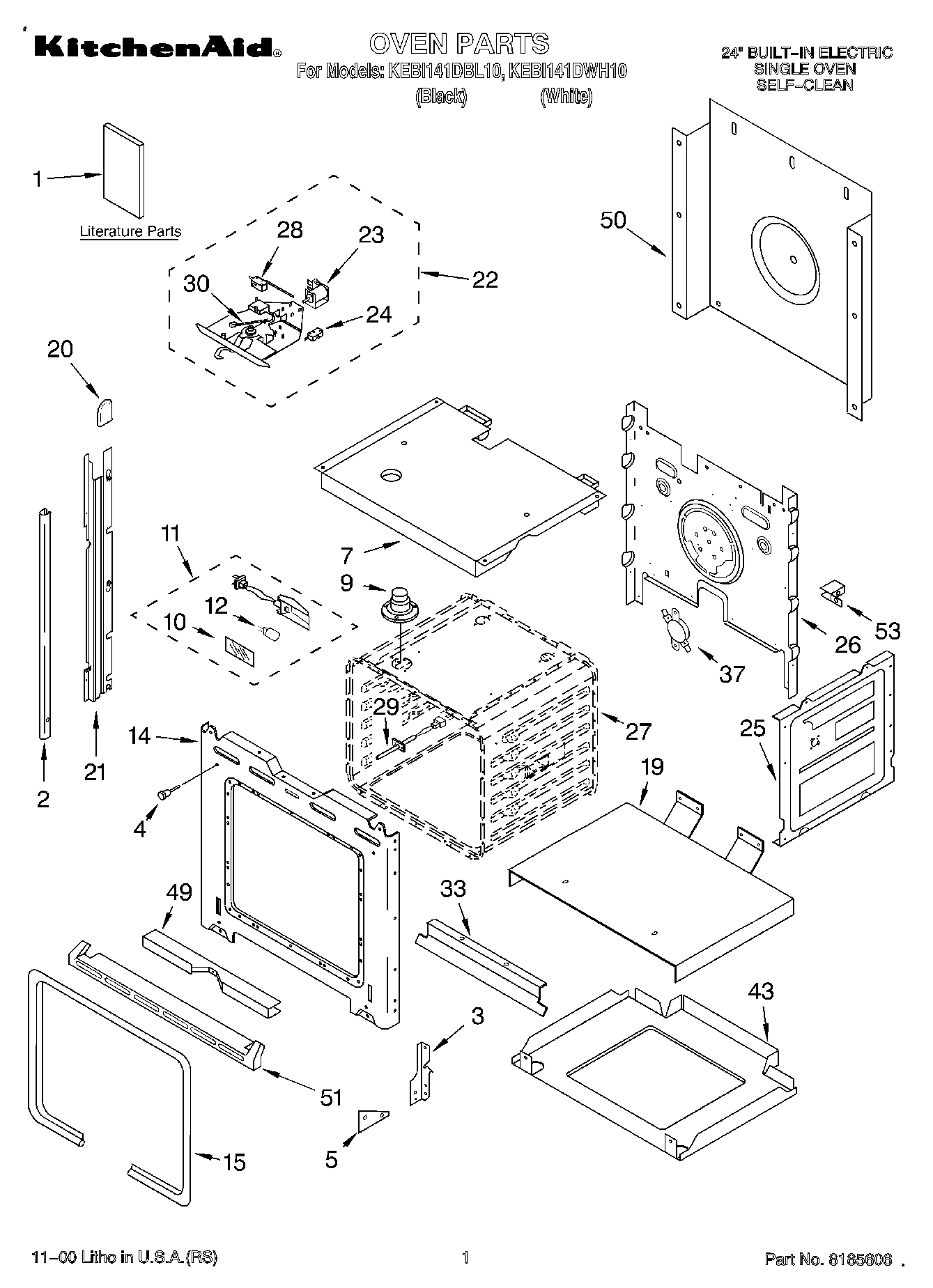

KEBI141DBL10 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Installation/ Undercounter)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Installation/ MWO Trim Kit)
1	Literature Parts (Easy Set Guide)
2	Trim, Side (LH White Screw)
2	Trim, Side (LH Black)
2	Trim, Side (White, Right)
2	Trim, Side (RH Black)
2	Trim, Side (White)
2	WP8281236 Whirlpool Screw
3	Reciever, Hinge (Left Hand)
3	Reciever, Hinge (Right Hand)
4	4448520 Whirlpool Oven Bumper
5	WP4455509 Whirlpool Support Bracket
7	4455863 Whirlpool Oven Top Assembly
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	4449748 Whirlpool Oven Screw
11	WP4448972 Whirlpool Oven Light
14	9760754 Whirlpool Oven Front Frame
14	WP4450118 Whirlpool Nut
14	Screw
15	WP4455380 Whirlpool Door Gasket
19	4451476 Whirlpool Support
20	Cap, Spacer
21	814371 Whirlpool Oven Rail Mount
21	814372 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
22	Latch Assembly
23	Solenoid
24	Microswitch N.C.
25	Side, Chassis (R.H. & L.H.)
26	4452232 Whirlpool Oven Rear Cover
27	Liner, Oven (Not a Serviceable Part)
28	Microswitch
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Spring, Latch
33	Deflector, Vent
37	WP9759242 Whirlpool Thermostat
43	4450525 Whirlpool Oven Bottom Assembly
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
51	WPL 4448473
51	WPL 4448474
51	Screw, (2)
53	WPL 4449845
53	WP4450363 Whirlpool Insulation
53	WP4449314 Whirlpool Insulation
53	WP4449809 Whirlpool Screw
