KEBI141DBL9 05 – TOP VENTING

KEBI141DBL9 05 – TOP VENTING

Written by

in

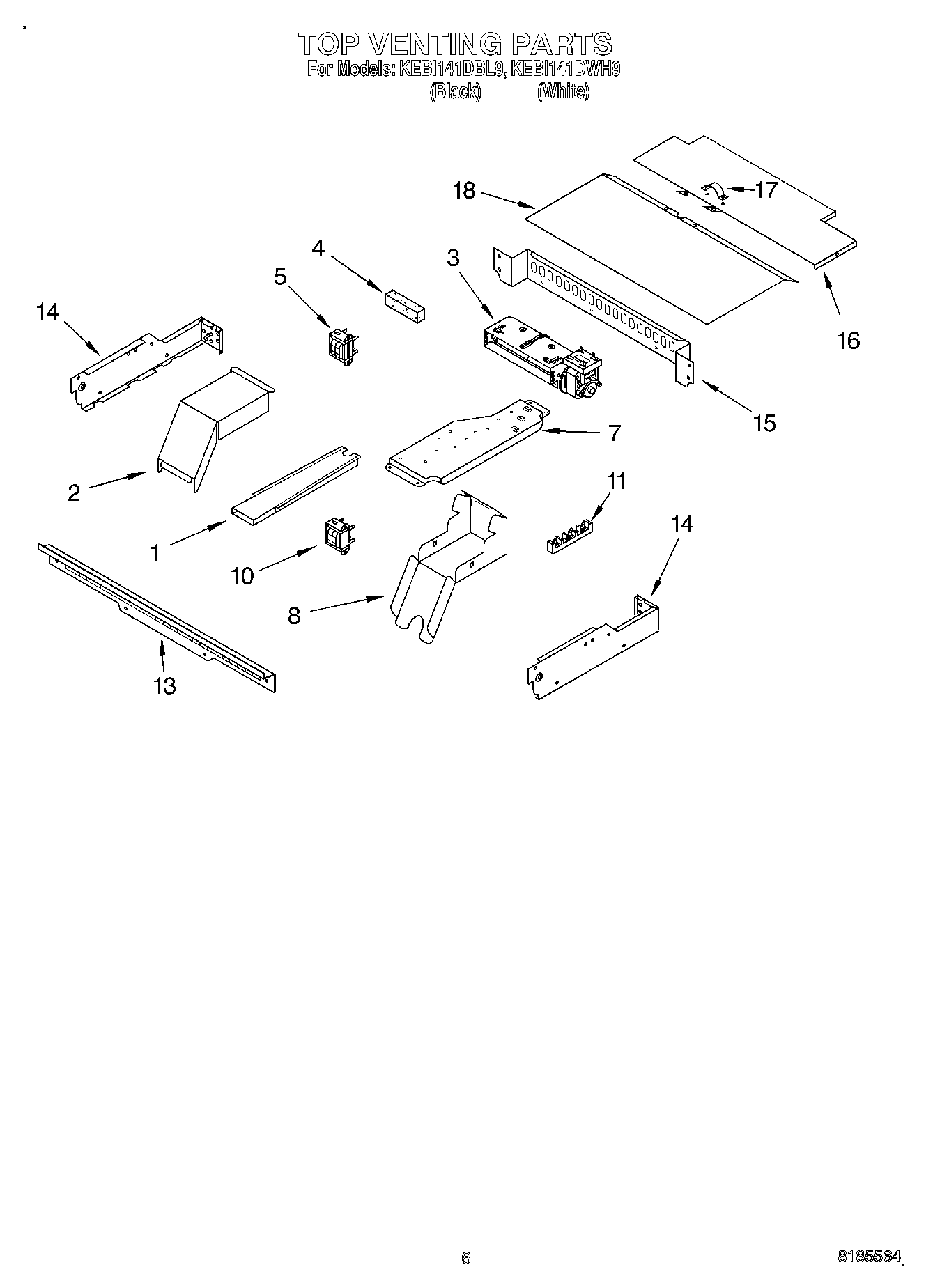

KEBI141DBL9 05 – TOP VENTING

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3Blower
34455191 Whirlpool Oven Mounting Plate
4W10491987 Whirlpool Foam Seal
5WP9760588 Whirlpool Transformer
7Plate, Mounting
84455177 Whirlpool Oven Bottom Elbow
10Transformer, Control
11WP8203546 Whirlpool Terminal Block
11WP3400016 Whirlpool Screw Assembly
13WP4450038 Whirlpool Screw
13Vent, (Control Panel)
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
164450549 Whirlpool Oven Top Cover
1818 Ga. 80~c Rating (Red)
181
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Yellow)
18WP4450952 Whirlpool Conduit
184451761 Whirlpool Oven Support Bracket
18Wire (14 Ga. 200 c Brown)
18Wire (12 Ga. 150 c Black)
18WPL 591014
18261900 Whirlpool Microwave Spray
18Wire (14 Ga. 150 c Brown)
18WPW10339879 Whirlpool Wire Tie
184450800 Whirlpool Oven Screw
184448664 Whirlpool Oven Mounting Bracket
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18WP112432 Whirlpool Nut Assembly
18WP4449809 Whirlpool Screw
1872017 Whirlpool Appliance Touch-Up Paint White
18285006 Whirlpool Spray
1872032 Whirlpool Touch Up Paint Black
18Wire (14 Ga. 150 c Blue)
18WP261869 Whirlpool Microwave Paint
18242831 Whirlpool Oven Wire
18Spacer, Harness
18Cover, Top Front
18WP4448950 Whirlpool Screw
18Harness, Wire (Main)
18814381 Whirlpool Pin
18WP482338 Whirlpool Refrigerator Adhesive
18350930 Whirlpool White Spray Paint
