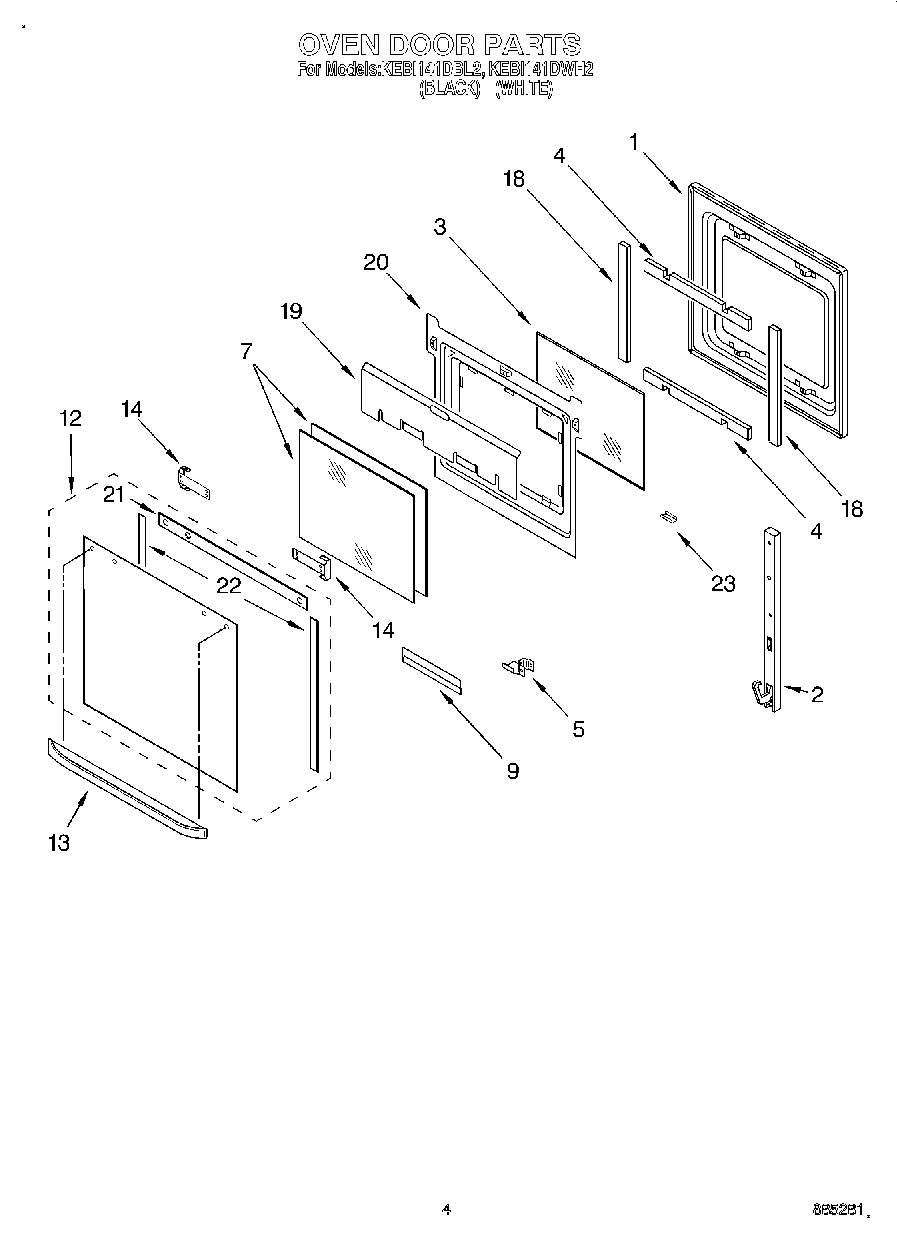

KEBI141DWH2 03 – OVEN DOOR
Written by
in
KEBI141DWH2 03 – OVEN DOOR
Products
Position
Product
1
Liner, Door
2
WP4449743 Whirlpool Screw
2
WP4455523 Whirlpool Oven Door Hinge
3
WP4449247 Whirlpool Inner Door Glass
4
Insulation, Top and Bottom Door
5
Retainer, Glass
7
Glass, Inner
9
Retainer, Glass
12
Door Glass, Outer (White Model)
12
Door Glass, Outer (Black Model)
13
Door Handle (White Model)
13
Door Handle (Black Model)
14
Bracket, Handle
14
Screw
18
W11688413 Whirlpool Insulation
19
Shield, Heat
20
Retainer, Glass
20
WP4449809 Whirlpool Screw
21
Seal, Door Top
22
Seal, Sides
23
Clip, Retainer (Black Model)
23
Clip, Retainer (White Model)
←
