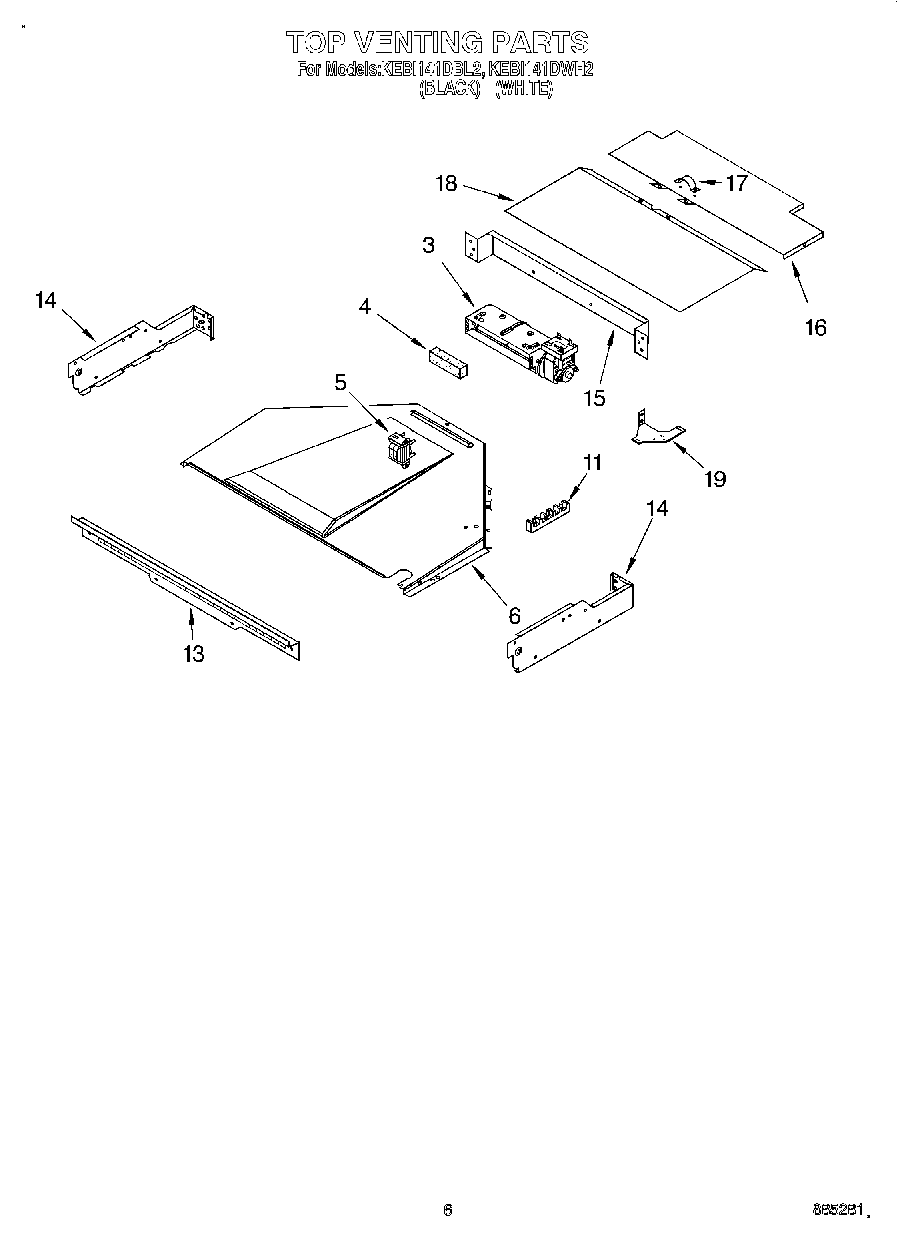

KEBI141DWH2 05 – TOP VENTING, OPTIONAL

KEBI141DWH2 05 – TOP VENTING, OPTIONAL

Written by

in

KEBI141DWH2 05 – TOP VENTING, OPTIONAL

Products

PositionProduct
3Blower
4Seal, Foam
5WP9760588 Whirlpool Transformer
6Exhaust Duct
11WP8203546 Whirlpool Terminal Block
11WP3387230 Whirlpool Screw
13Vent, (Control Panel)
13WP4450038 Whirlpool Screw
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
164450549 Whirlpool Oven Top Cover
18Cover, Top Front
19Harness, Wire (Main)
1918 Ga. 80~c Rating (Red)
19Wire (14 Ga. 200 c Brown)
191
19Bracket, Blower
19261900 Whirlpool Microwave Spray
19WP4450952 Whirlpool Conduit
19WPL 591014
19350930 Whirlpool White Spray Paint
19Roll Tape, Exhaust Duct
19Harness, Wire (Latch)
19Harness, Wire (Door Switch)
19Wire (12 Ga. 150 c Black)
19Wire (14 Ga. 150 c Yellow)
19Wire (14 Ga. 150 c Orange)
194450800 Whirlpool Oven Screw
194448664 Whirlpool Oven Mounting Bracket
19Wire, 25“ Roll (White 14 GA.)
19Wire, 25` Roll (Red 14 Ga.)
19Wire, 25` Roll (Black 14 Ga.)
19WP112432 Whirlpool Nut Assembly
19WP488366 Whirlpool Refrigerator Clamp
19WP4449809 Whirlpool Screw
19285006 Whirlpool Spray
1972032 Whirlpool Touch Up Paint Black
19Wire (14 Ga. 150 c Green)
19Wire (14 Ga. 150 c Brown)
19Wire (14 Ga. 150 c Blue)
19WP261869 Whirlpool Microwave Paint
19242831 Whirlpool Oven Wire
19WP4448950 Whirlpool Screw
19814381 Whirlpool Pin
19WP482338 Whirlpool Refrigerator Adhesive
1972017 Whirlpool Appliance Touch-Up Paint White
