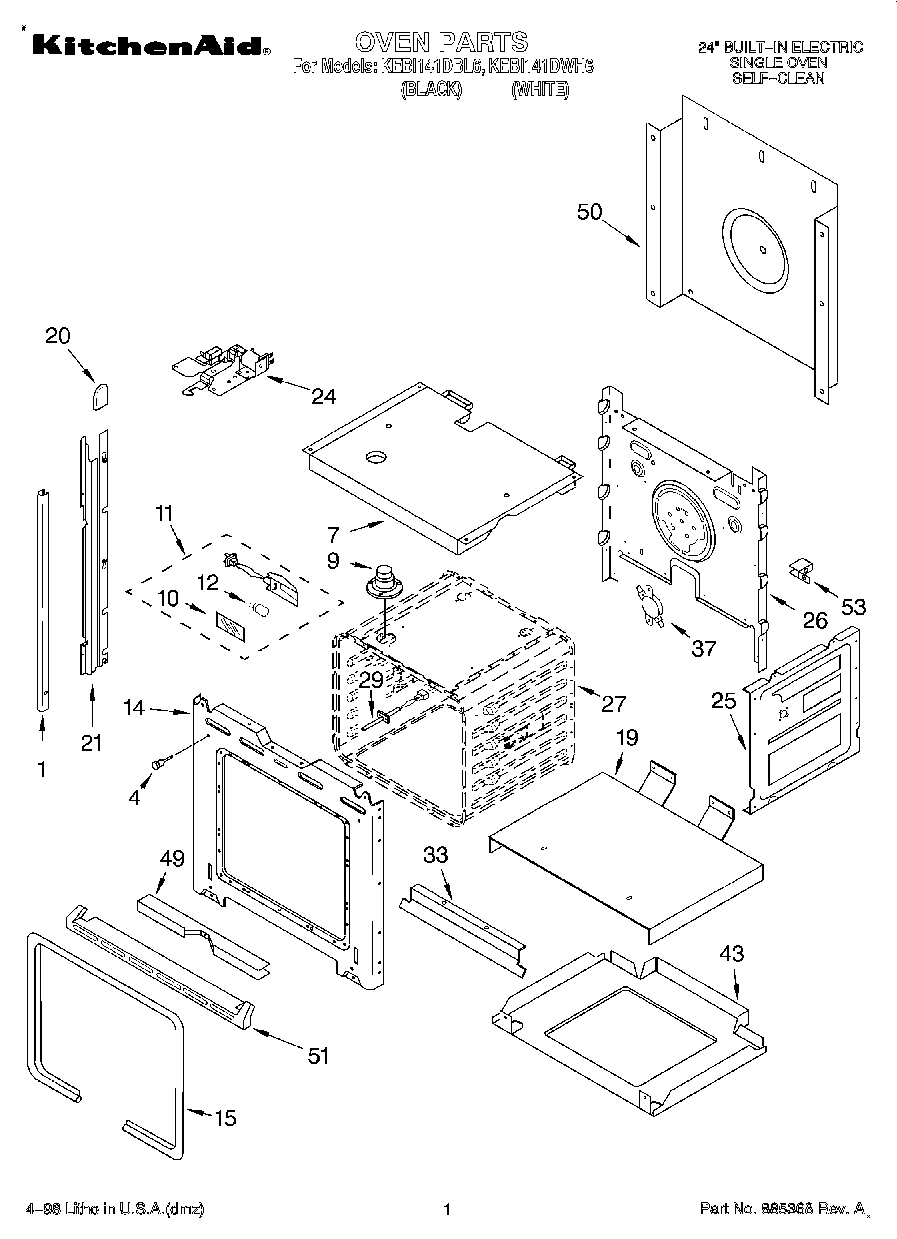

KEBI141DWH6 01 – OVEN

KEBI141DWH6 01 – OVEN

Written by

in

KEBI141DWH6 01 – OVEN

Products

PositionProduct
1Trim, Side (LH White Screw)
1WP8281236 Whirlpool Screw
1Trim, Side (White)
1Trim, Side (LH Black)
1Trim, Side (RH Black)
1Trim, Side (White, Right)
44448520 Whirlpool Oven Bumper
74455863 Whirlpool Oven Top Assembly
9W10861715 Whirlpool Vent Tube
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14WP4450118 Whirlpool Nut
149760754 Whirlpool Oven Front Frame
14Screw
15WP4455380 Whirlpool Door Gasket
194451476 Whirlpool Support
20Cap, Spacer
21814372 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814371 Whirlpool Oven Rail Mount
24Microswitch
24Micro Switch N.C.
24Solenoid
24Latch Assembly
25Side, Chassis (R.H. & L.H.)
264452232 Whirlpool Oven Rear Cover
27Liner, Oven (Not a Serviceable Part)
29Sensor
33Deflector, Vent
37WP9759242 Whirlpool Thermostat
434450525 Whirlpool Oven Bottom Assembly
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (Black Model)
51Trim, Bottom (White Model)
51Screw, (2)
53WPL 4449845
53WP4449809 Whirlpool Screw
53WP4449314 Whirlpool Insulation
53WP4450363 Whirlpool Insulation
