KEBI141DWH6 03 – OVEN DOOR
Written by
in

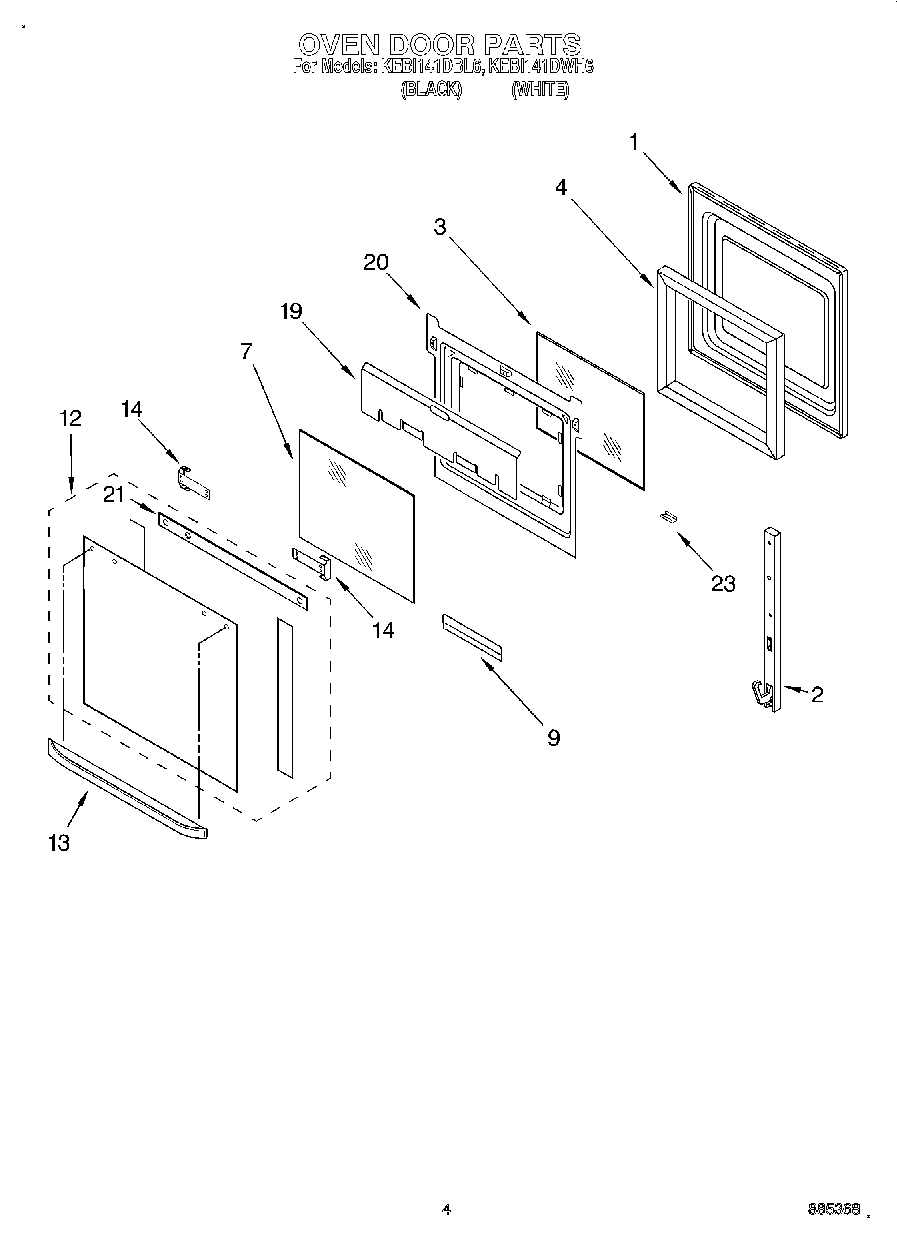

KEBI141DWH6 03 – OVEN DOOR
Products
Position
Product
1
WP8303698 Whirlpool Door Liner
2
Hinge, Door
2
WP4449743 Whirlpool Screw
3
WP4449247 Whirlpool Inner Door Glass
4
W11688413 Whirlpool Insulation
7
Glass, Inner
9
Retainer, Glass
12
Door Glass, Assy (White Model)
12
Door Glass, Assy (Black Model)
13
Door Handle (Black Model)
13
Door Handle (White Model)
14
Screw
14
Bracket, Handle
19
Shield, Heat
20
Retainer, Glass
20
WP4449809 Whirlpool Screw
21
Seal, Door Top
23
Clip, Retainer (Black Model)
23
Clip, Retainer (White Model)
←
