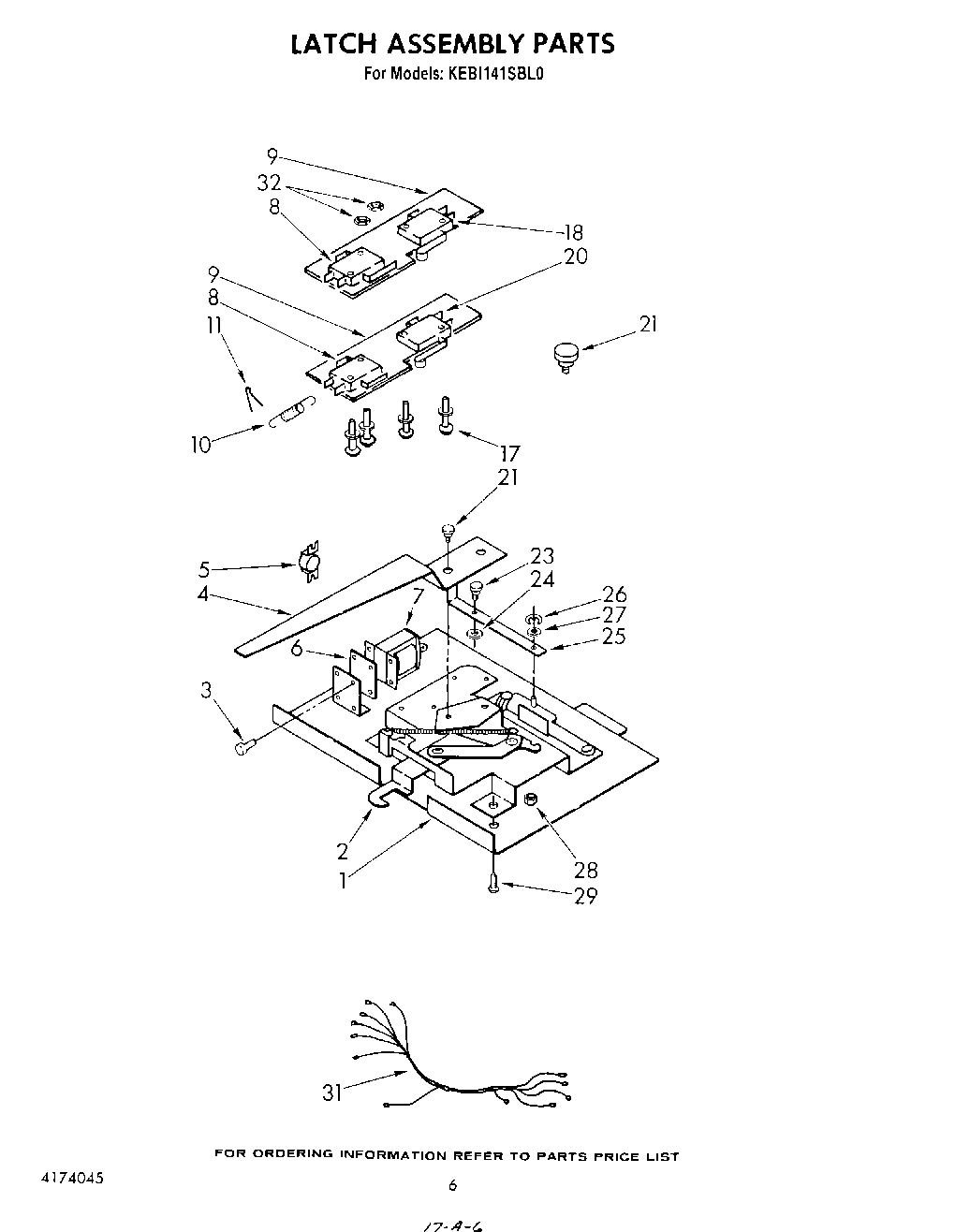

KEBI141SBL0 06 – LATCH ASSEMBLY

Products

Position	Product
1	Latch Mounting Plate
2	Mechanism, Latch
3	Screw, No.10-24 X 3/8“ Hex TCS
4	Latch Lever
5	Thermal Switch
6	Solenoid Spacer
7	Solenoid
8	Latch Switch With Roller
9	Insulator (2)
10	Solenoid Spring
11	Cotter Pin
17	Screw, No.4-40 X 1 1/4“ Hex
18	Latch Switch
20	Latch Switch (2)
21	Shoulder Screw Latch Lever Upper Oven
23	Shoulder Screw, Actuator Arm
24	Spacer, Actuator Arm
25	Actuator Arm
26	Retaining Ring
27	Washer, Flat
28	Nut, No.10-24 Hex Kep
29	Screw, No.10-24 X 3/8“ PTHMS
31	Wiring Harness, Latch Switch
32	Nut (2)
