KEBI141WBL2 03 – OVEN
Written by
in

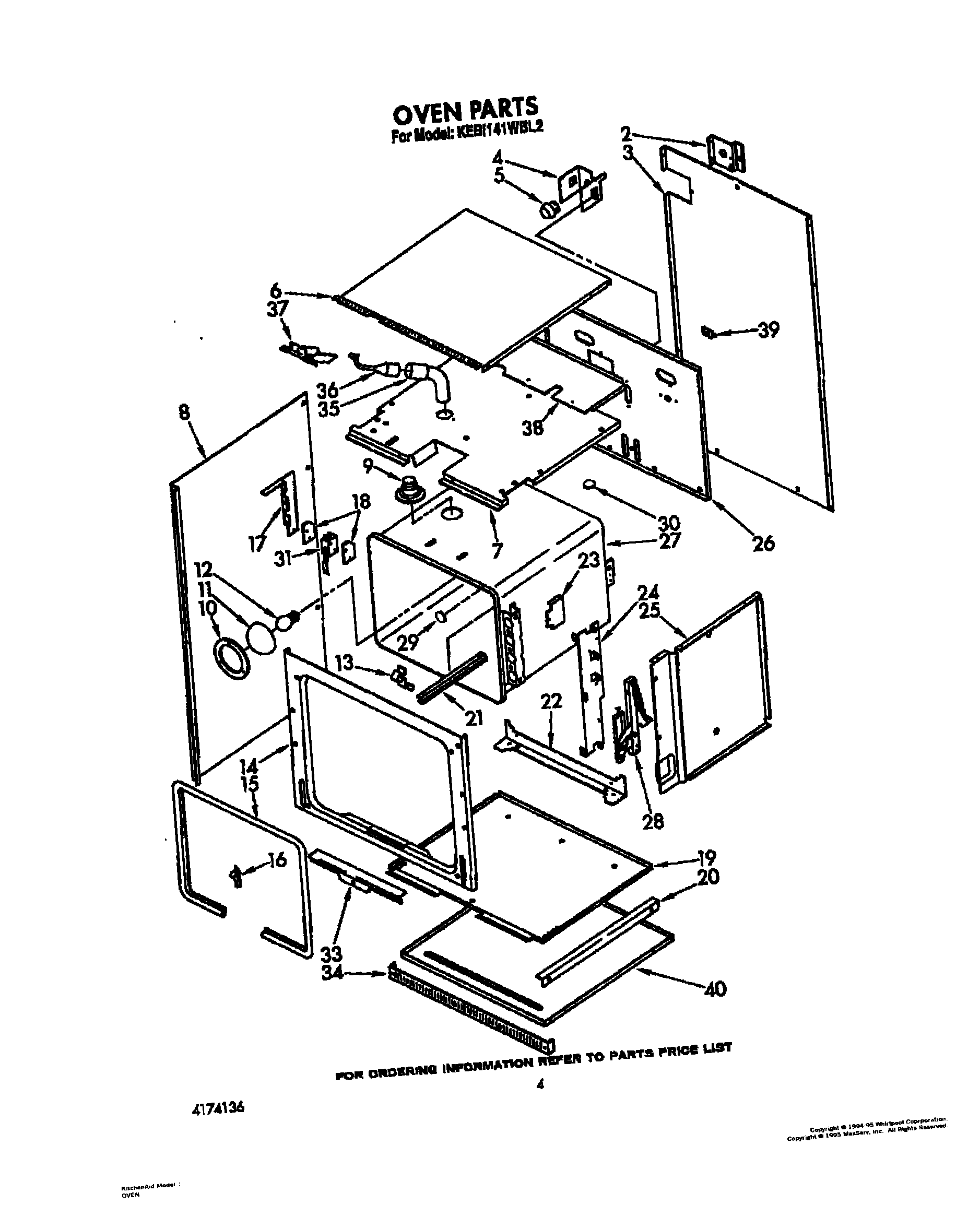

KEBI141WBL2 03 – OVEN
Products
Position
Product
2
Bracket, Conduit
3
Cabinet, Back
4
Housing, Light
5
Socket, Light
6
Cabinet, Top
7
Top, Module
8
Side, Cabinet (R.H. & L.H.)
9
Smoke Eliminator (Upper Oven)
10
Retainer, Glass
11
Light Lens
12
RANGE ONLY 40W 120V APPL BULB
13
98005642 Whirlpool Clip
14
Frame, Front
14
Screw (4)
15
Seal, Door
16
Clip, Oven Seal
17
Bracket, Switch
19
Bottom, Modual
20
Rail, Support (2)
21
Broiler Element Support-Right
21
Screw (3)
22
Support, Oven
23
Shield, Radiation
24
Bracket, Hinge
25
Side, Module (R.H. & L.H.)
26
Back, Module
27
Liner, Oven
28
Screw (6)
28
Hinge, Door
29
Button, Plug
30
Button, Plug
31
Switch, Door
31
Nut (2)
31
Screw (2)
32
Insulator, Switch
33
Retainer, Seal
34
Vent, Lower Trim (Screw (2))
34
Vent, Lower Trim (Black Model)
34
Vent, Lower Trim (Screw (4))
35
Vent, Tube (Upper, Female)
36
Vent, Tube (Upper, Male)
37
WP90767 Whirlpool Screw
37
Shield, Vent
38
Extension, Shelf
38
WP3177991 Whirlpool Screw
39
Cover, Cap Tube
39
Screw
40
Insulation, Wrap
40
Bottom, Oven
40
WPL 3177870
←
