KEBI141WBL3 03 – OVEN, OPTIONAL

KEBI141WBL3 03 – OVEN, OPTIONAL

Written by

in

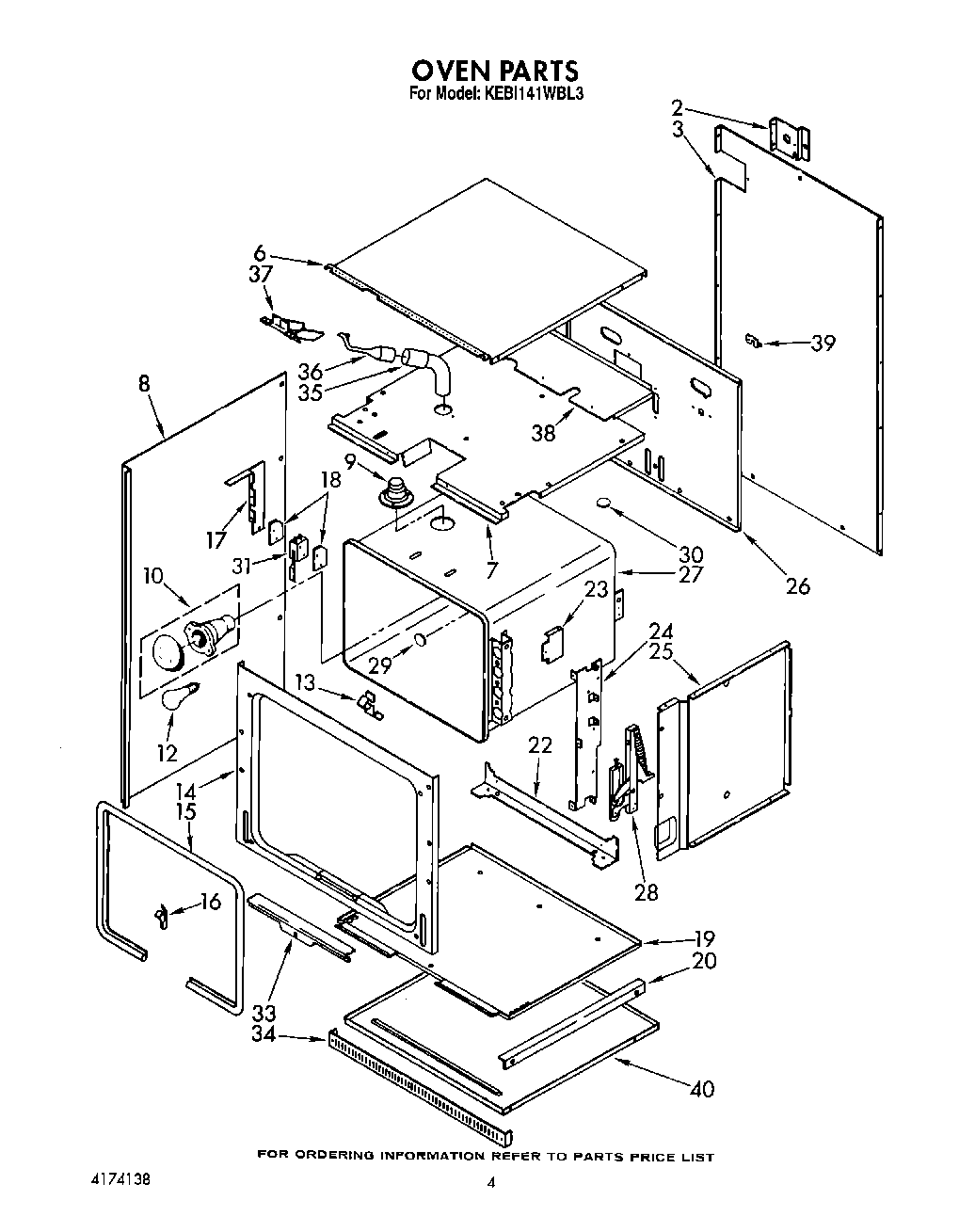

KEBI141WBL3 03 – OVEN, OPTIONAL

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
14	Screw (4)
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
29	Button, Plug
30	Button, Plug
31	Nut (2)
31	Switch, Door
31	Screw (2)
33	Retainer, Seal
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Black Model)
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	WP90767 Whirlpool Screw
37	Shield, Vent
38	WP3177991 Whirlpool Screw
38	Extension, Shelf
39	Screw
39	Cover, Cap Tube
40	Wire (14 Ga. 150 c Yellow)
40	Insulation, Wrap
40	WP261869 Whirlpool Microwave Paint
40	Bottom, Oven
40	WPL 832985
40	Wire (14 Ga. 150 c Blue)
40	242831 Whirlpool Oven Wire
40	WPL 591014
40	Wire (14 Ga. 150 c Brown)
40	WPL 350806
40	Wire (14 Ga. 150 c Green)
40	WPL 3177870
40	1
40	Wire (14 Ga. 150 c Orange)
40	18 Ga. 80~c Rating (Red)
40	Wire (12 Ga. 150 c Black)
40	Wire (14 Ga. 200 c Brown)
40	72113 Whirlpool Touch-Up Paint
40	Paint, Spray (13 Oz.) (Platinum)
40	Toast
40	Golden Harvest (Uncut)
40	Golden Harvest
40	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
40	Almond (Uncut)
40	Leveler (Thinner)
40	WP72107 Whirlpool Touchup
40	799344 Whirlpool Refrigerator Paint
40	72017 Whirlpool Appliance Touch-Up Paint White
40	Enamal, Toast (1 Qt. Uncut)
40	Platinum (Uncut)
40	WP482338 Whirlpool Refrigerator Adhesive
40	72032 Whirlpool Touch Up Paint Black
40	285006 Whirlpool Spray
40	Wire, 25“ Roll (White 14 GA.)
40	Wire, 25` Roll (Red 14 Ga.)
40	Wire, 25` Roll (Black 14 Ga.)
40	350930 Whirlpool White Spray Paint
40	WPL 799832
40	350942 Whirlpool Spray Paint
40	WPL 72112
40	350956 Whirlpool Spray Assembly
