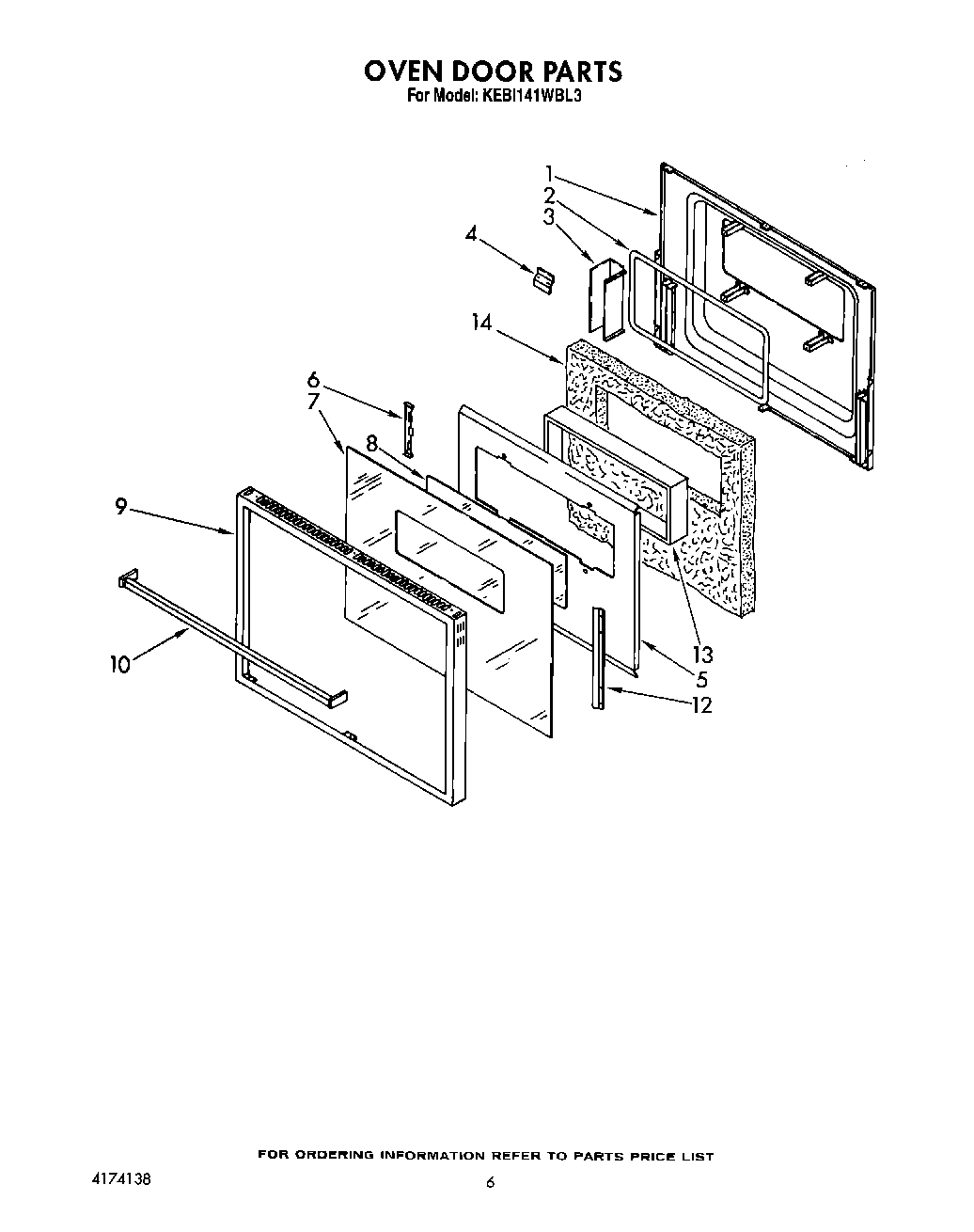

KEBI141WBL3 04 – OVEN DOOR

KEBI141WBL3 04 – OVEN DOOR

Written by

in

KEBI141WBL3 04 – OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
1Vent, Lower Trim (Screw (2))
2Seal, Window
3Spacer, Window
4Latch, Strike
5Retainer, Insulation
6WP90767 Whirlpool Screw
6Bracket, Glass Mtg.
7Glass, Door
8Glass, Reflective
9Frame, Door
10Handle, Door (Screw)
10Handle, Door
12Screw (6)
12Retainer, Glass
13Window Package
14Insulation, Door
