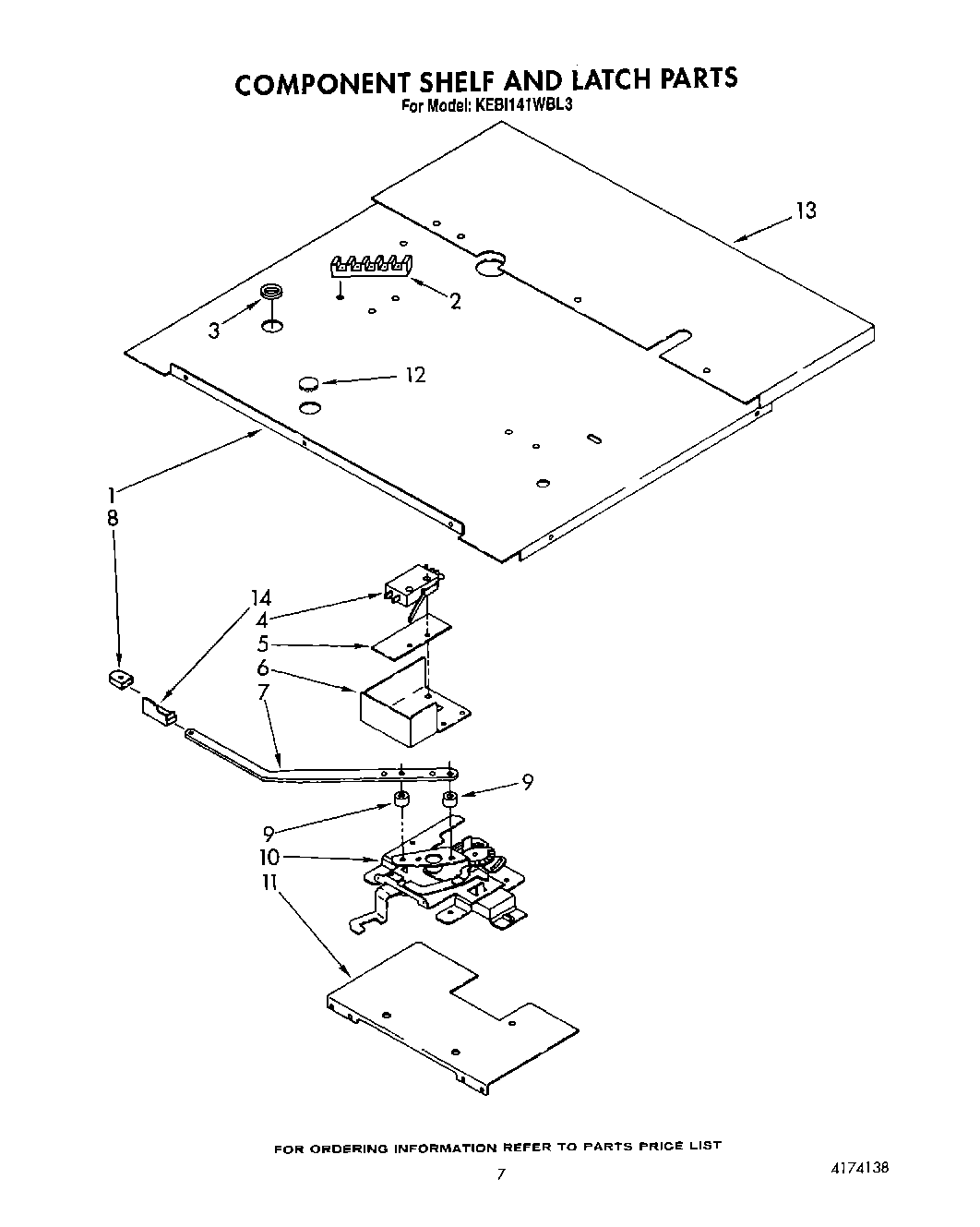

KEBI141WBL3 05 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1WP90767 Whirlpool Screw
1Shelf, Component
2WP8203546 Whirlpool Terminal Block
2W10841059 Whirlpool Screw
3Bushing
4Screw
4Switch, Latch
5Insulator, Switch
6Guard, Latch
6Screw,
7Screw (2)
7Handle, Latch
8Knob, Latch Handle
9Screw, 8-18 X 3/4 (4)
9Spacer, Handle (2)
10Latch, Mechanism
11Plate, Mounting
12Plug, Button
13Extension, Shelf
13WP3177991 Whirlpool Screw
14Support, Latch
14WP112432 Whirlpool Nut Assembly
14WP488234 Whirlpool Air Conditioner Screw
