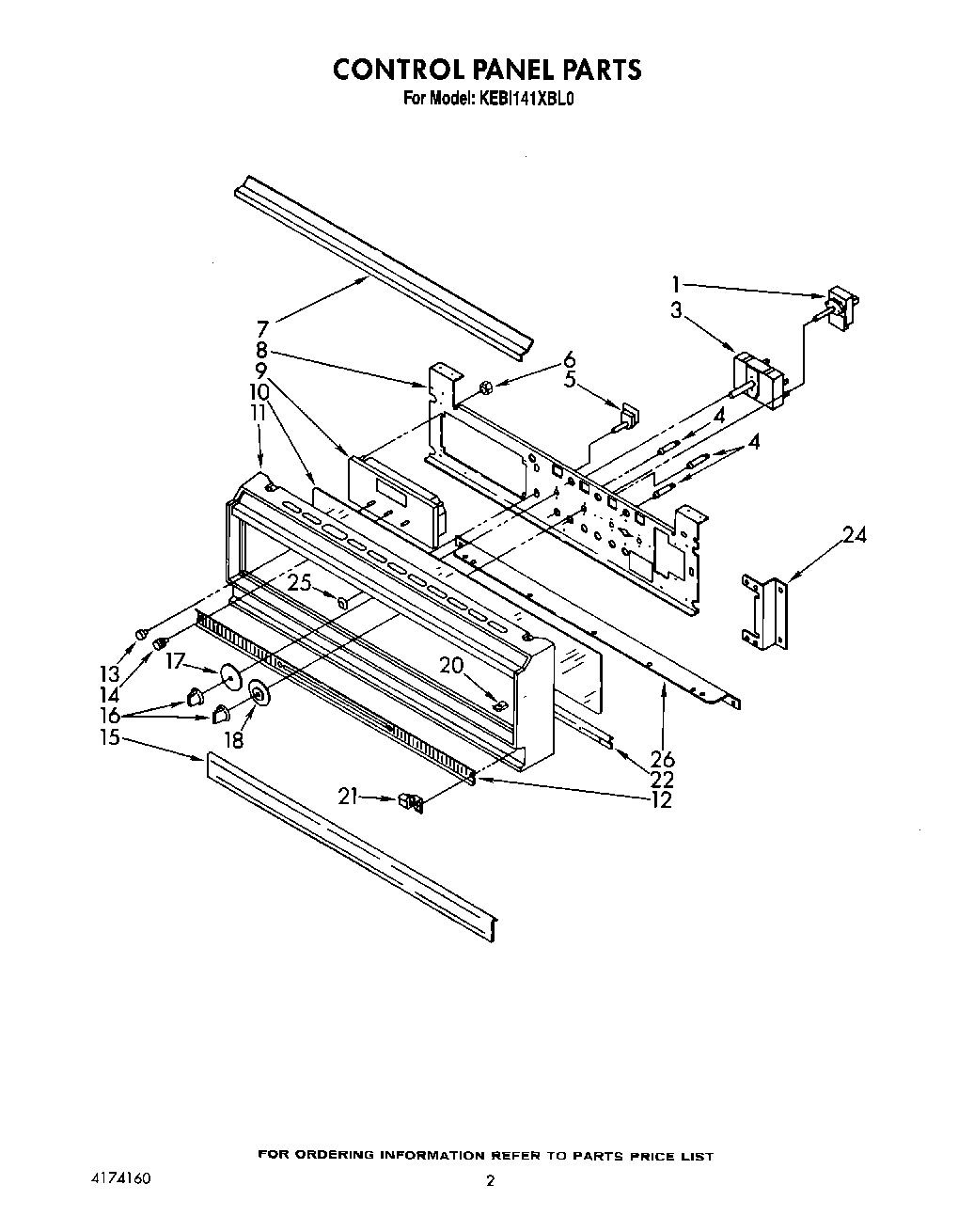

KEBI141XBL0 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3181350
	WPL LIT3178195
	Repair Parts List
	WPL LIT3178202
1	Thermostat, upper
3	Switch, Selector
3	WP486579 Whirlpool Air Conditioner Screw
4	Indicator Light, Oven (Lower Oven)
5	Switch, Oven Light
6	Nut, Timer (4)
7	Insert, Top
8	Bracket, Control
9	Timer, Electronic
10	Glass, Control Panel
11	Frame, Control Panel
12	Insert, Vent
13	Knob, Timer (2)
14	Knob, Timer
15	Screw (5)
15	Door, Latch Handle
16	Knob, Control
17	Disc, Selector
18	Disc, Thermostat (Self Clean)
20	nut (3)
21	Door, Latch Handle (Screw (2))
21	Hinge, Door (2)
22	Screw (6)
22	Retainer
24	Bracket, Control Panel
25	Bezel, Oven Light Switch
26	Support, Frame
26	WP3177991 Whirlpool Screw
