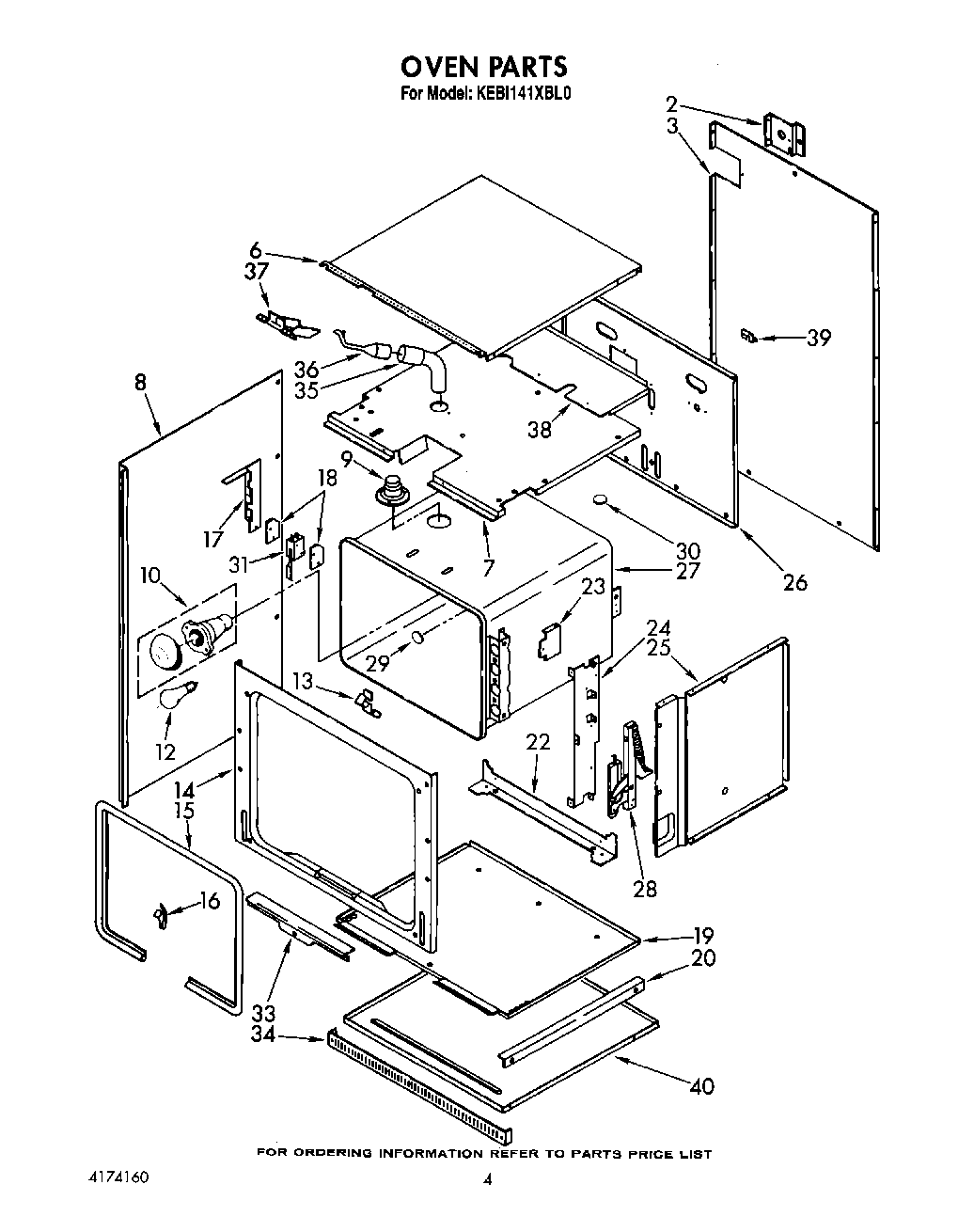

KEBI141XBL0 03 – OVEN, OPTIONAL

KEBI141XBL0 03 – OVEN, OPTIONAL

Written by

in

KEBI141XBL0 03 – OVEN, OPTIONAL

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Screw (3)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
14	Screw (4)
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Screw (6)
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Screw (4)
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	SCREW
33	Retainer, Seal
34	Vent, Lower Trim (Black Model)
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	Shield, Vent
37	WP90767 Whirlpool Screw
38	Extension, Shelf
38	WP3177991 Whirlpool Screw
39	Cover, Cap Tube
39	Screw
40	WPL 3177870
40	242831 Whirlpool Oven Wire
40	WPL 350806
40	WPL 591014
40	WPL 832985
40	Rotisserie Kit
40	Bottom, Oven
40	1
40	WP261869 Whirlpool Microwave Paint
40	Wire (14 Ga. 150 c Blue)
40	Wire (14 Ga. 150 c Brown)
40	Wire (14 Ga. 150 c Green)
40	Wire (14 Ga. 150 c Orange)
40	Wire (14 Ga. 150 c Yellow)
40	Wire (12 Ga. 150 c Black)
40	Insulation, Wrap
40	Wire (14 Ga. 200 c Brown)
40	18 Ga. 80~c Rating (Red)
40	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
40	Toast
40	Golden Harvest (Uncut)
40	Golden Harvest
40	72113 Whirlpool Touch-Up Paint
40	Almond (Uncut)
40	Leveler (Thinner)
40	WP72107 Whirlpool Touchup
40	799344 Whirlpool Refrigerator Paint
40	72017 Whirlpool Appliance Touch-Up Paint White
40	350956 Whirlpool Spray Assembly
40	Paint, Spray (13 Oz.) (Platinum)
40	Enamal, Toast (1 Qt. Uncut)
40	WP482338 Whirlpool Refrigerator Adhesive
40	72032 Whirlpool Touch Up Paint Black
40	285006 Whirlpool Spray
40	Wire, 25“ Roll (White 14 GA.)
40	Wire, 25` Roll (Red 14 Ga.)
40	Wire, 25` Roll (Black 14 Ga.)
40	WPL 799832
40	350942 Whirlpool Spray Paint
40	WPL 72112
40	Platinum (Uncut)
40	350930 Whirlpool White Spray Paint
