KEBI141XBL1 05 – OVEN DOOR

KEBI141XBL1 05 – OVEN DOOR

Written by

in

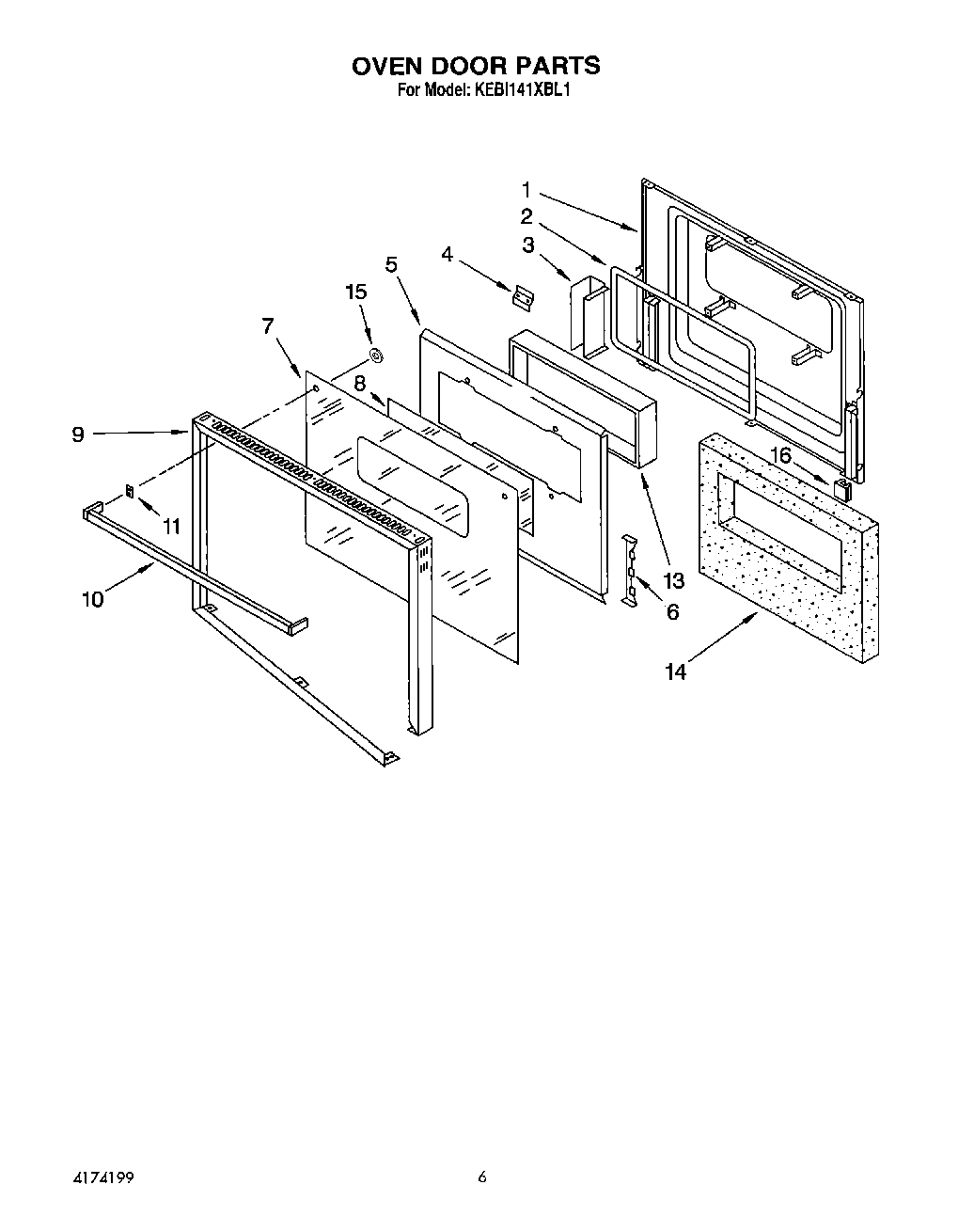

KEBI141XBL1 05 – OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Retainer, Insulation
6	WP90767 Whirlpool Screw
6	Bracket, Glass Mtg.
7	Glass, Door
8	Glass, Reflective
9	Frame, Door
10	Screw
10	Handle, Door
11	Spacer (2)
13	Window Package
14	Insulation, Door
15	Bushing, Door Handle
15	Vent, Lower Trim (Screw (2))
15	Screw
16	Bumper, Door Glass
