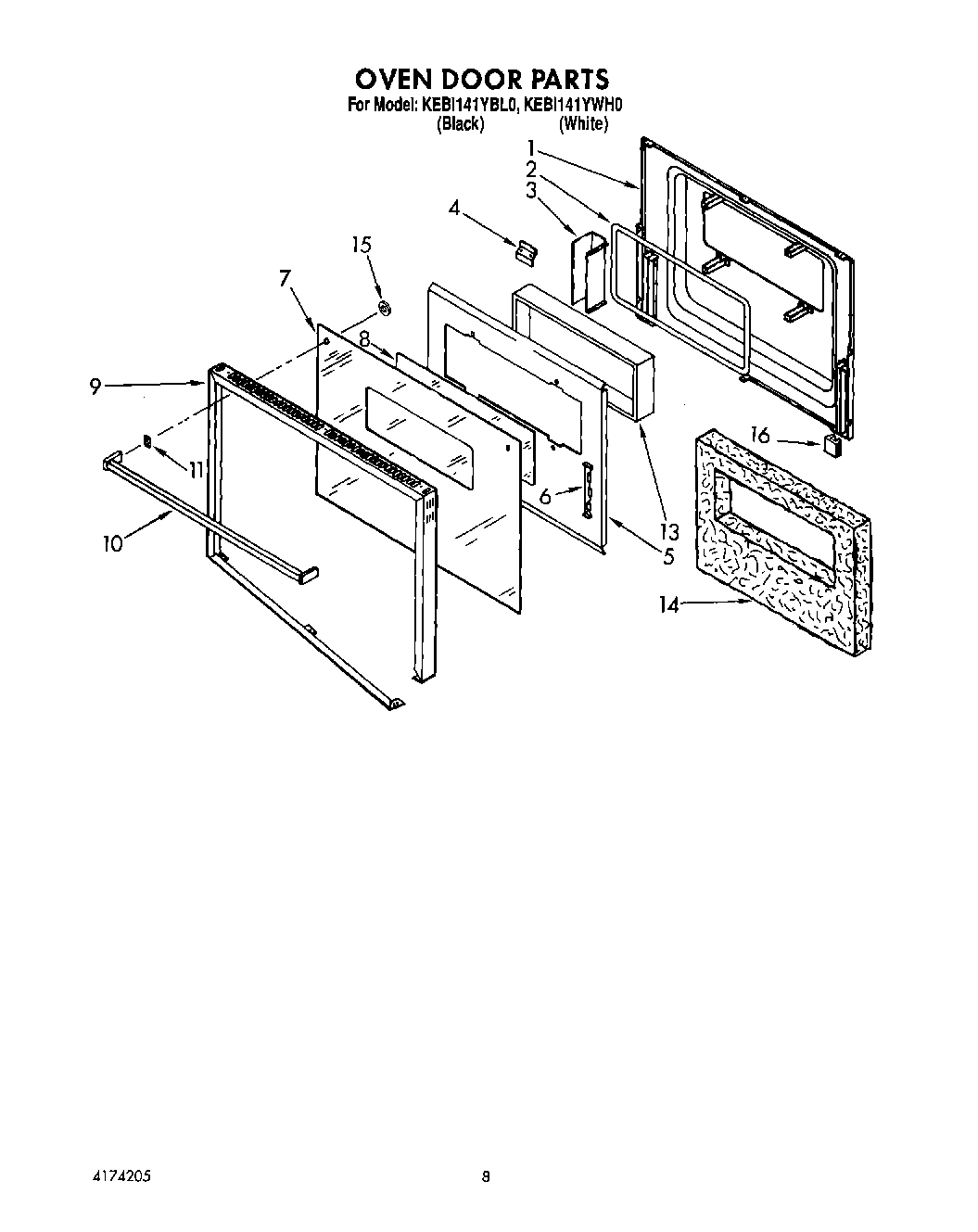

KEBI141YBL0 05 – OVEN DOOR

KEBI141YBL0 05 – OVEN DOOR

Written by

in

KEBI141YBL0 05 – OVEN DOOR

Products

PositionProduct
1Screw, Black (2)
1Screw (5)
1Liner, Door
2Seal, Window
3Spacer, Window
4Latch, Strike
5Retainer, Insulation
6Bracket, Glass Mtg.
6Screw
7Glass, Door (White)
7Glass, Door
8Glass, Reflective
9Frame, Door
10Screw
10Handle, Door (Black Model)
10Handle, Door (White Model)
11Spacer, Door Handle
13Window Package
14Insulation, Door
15Vent, Lower Trim (Screw (2))
15Screw
15Bushing, Door Handle
16Bumper, Door Glass
