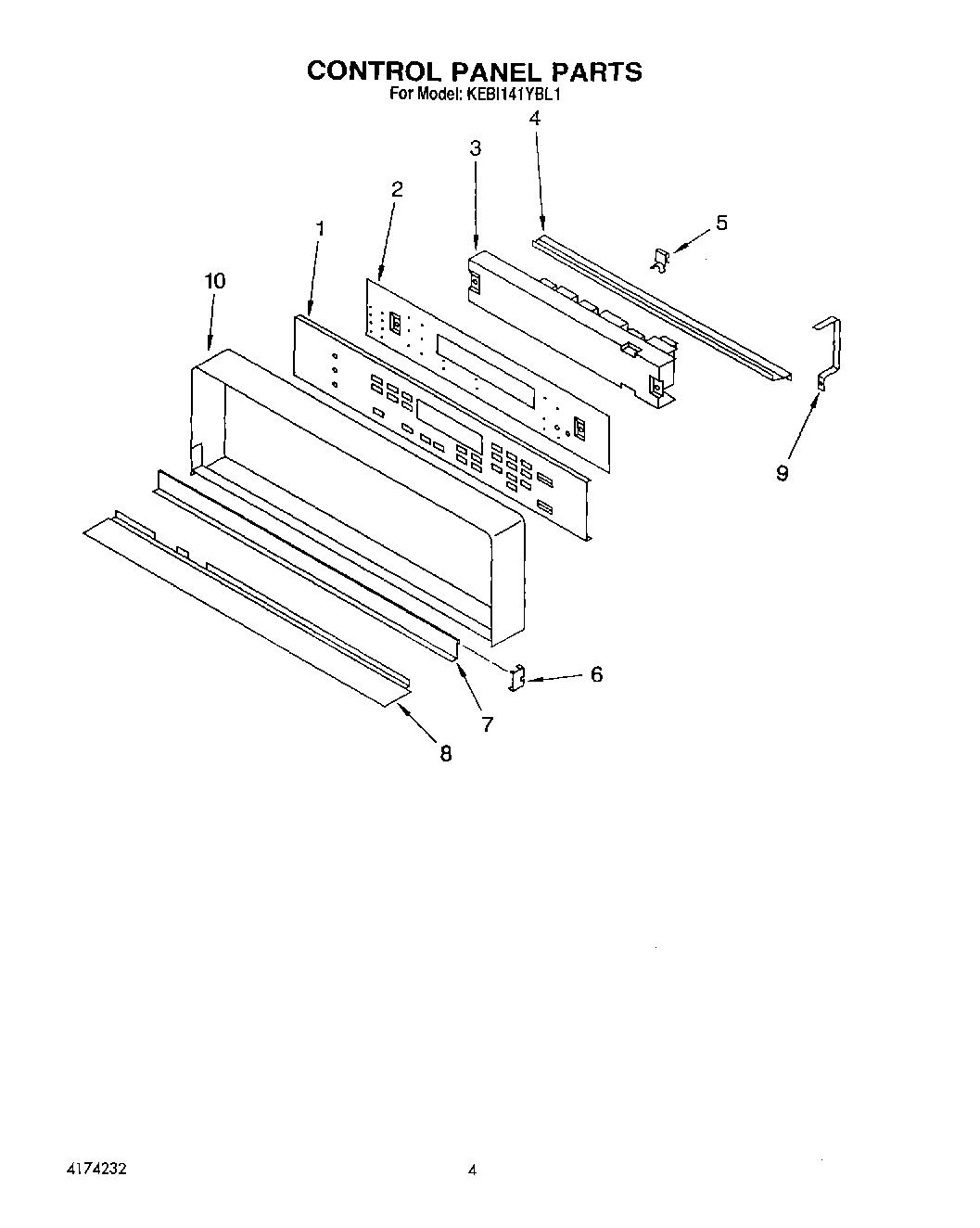

KEBI141YBL1 02 – CONTROL PANEL, LITERATURE

Products

PositionProduct
Repair Parts List
Tech Sheet
Installation Instructions
WPL LIT3182134
1Membrane, Switch (Black Model)
2Bracket, Mounting Switch Membrane
3Microcomputer
3Screw (3)
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Black)
7Door, Latch Handle (Screw (2))
8Trim, Panel
8WP90767 Whirlpool Screw
9Screw (2)
9Bracket (2)
10Frame, Control Panel
