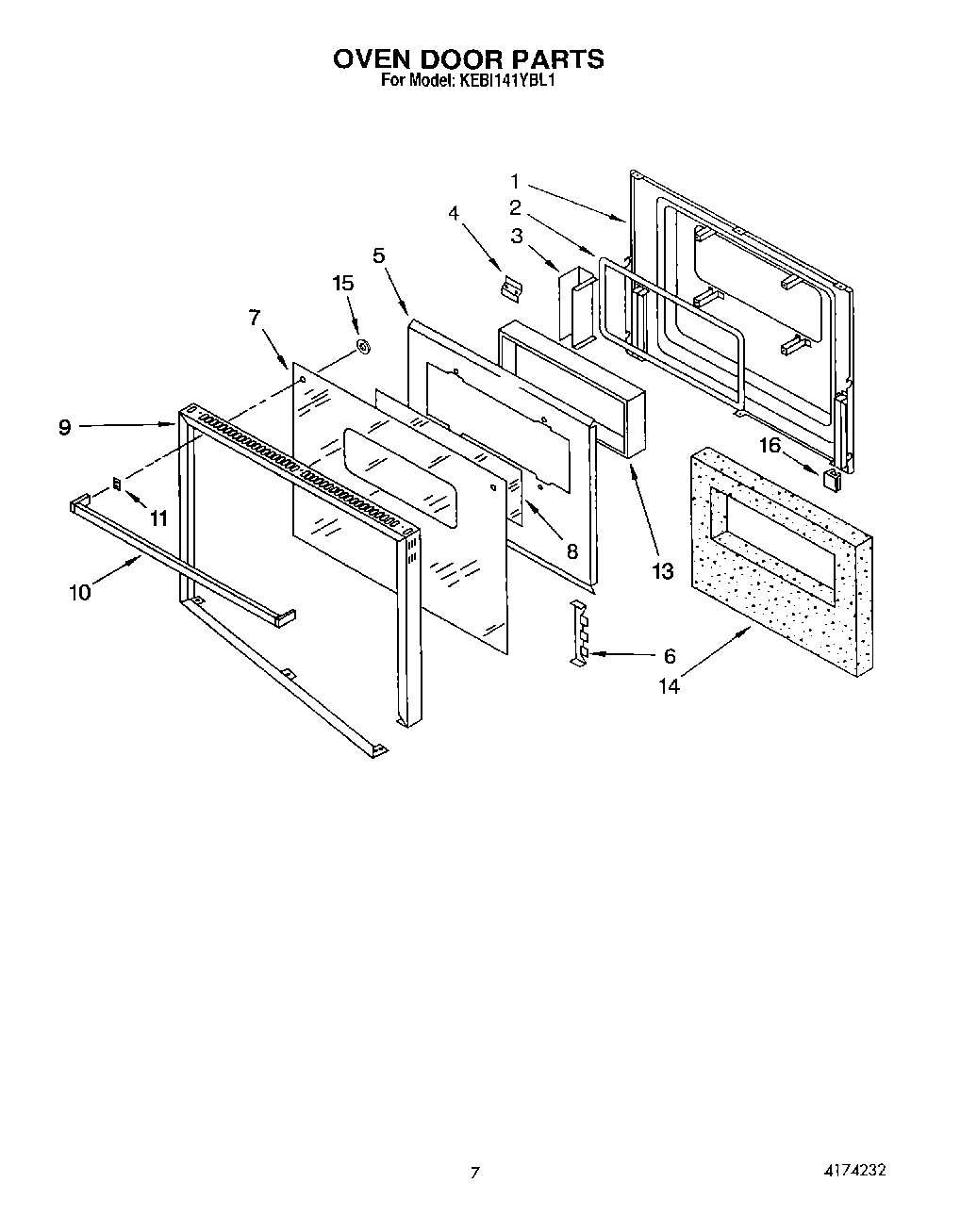

KEBI141YBL1 05 – OVEN DOOR

KEBI141YBL1 05 – OVEN DOOR

Written by

in

KEBI141YBL1 05 – OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Retainer, Insulation
6	WP90767 Whirlpool Screw
6	Bracket, Glass Mtg.
7	Glass, Door
8	Glass, Reflective
9	Frame, Door
10	Screw
10	Handle, Door (Black Model)
11	Spacer, Door Handle
13	Window Package
14	Insulation, Door
15	Vent, Lower Trim (Screw (2))
15	Bushing, Door Handle
15	Screw
16	Bumper, Door Glass
