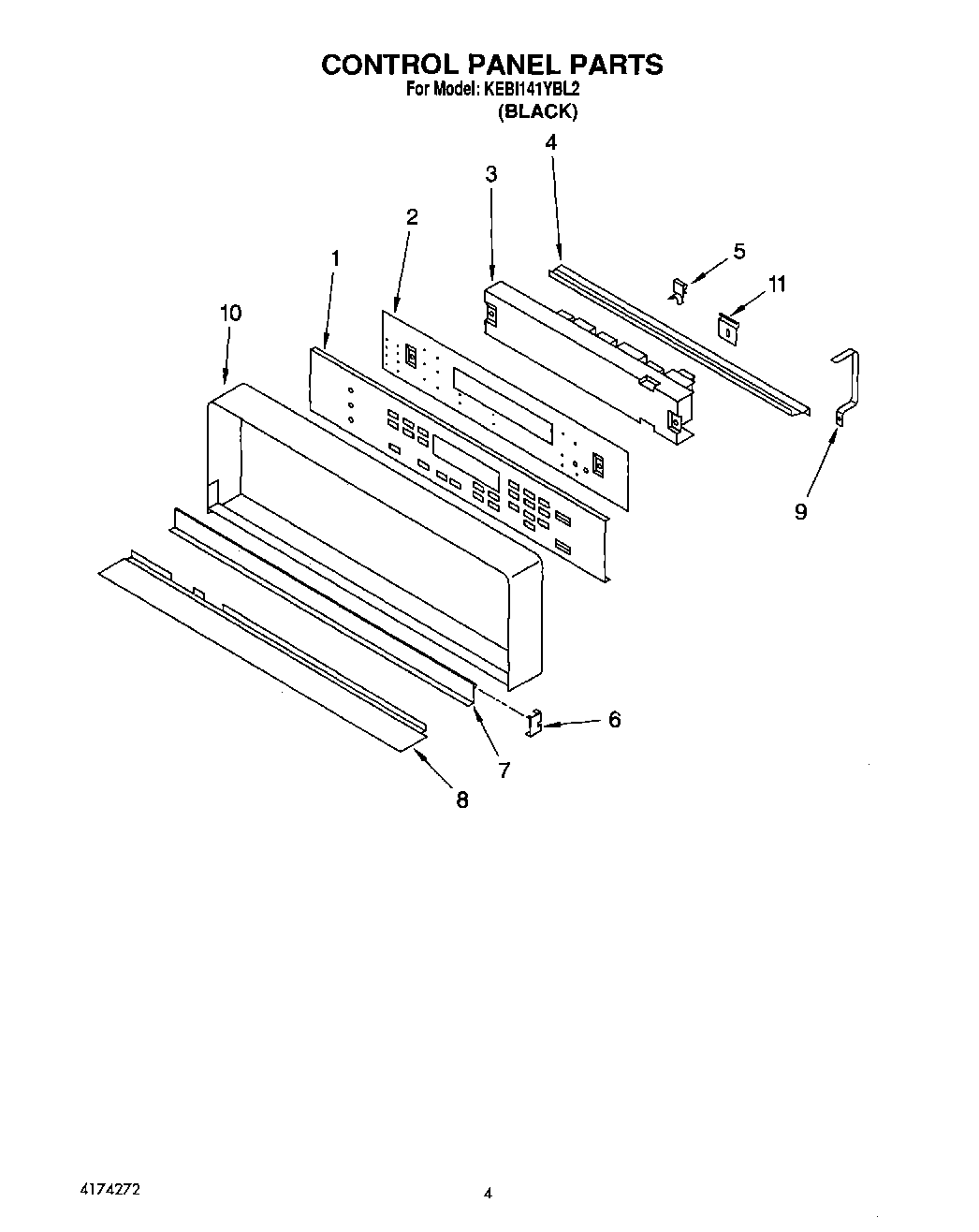

KEBI141YBL2 02 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
Tech Sheet
Repair Parts List
Use & Care Guide
Installation Instructions
1Membrane, Switch (Black Model)
2Bracket, Mounting Switch Membrane
3Microcomputer
3Screw (3)
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Screw (2))
7Door, Latch Handle (Black)
8Screw
8Trim, Panel
9Screw (2)
9Bracket (2)
10Frame, Control Panel
11Clip, Control Frame
