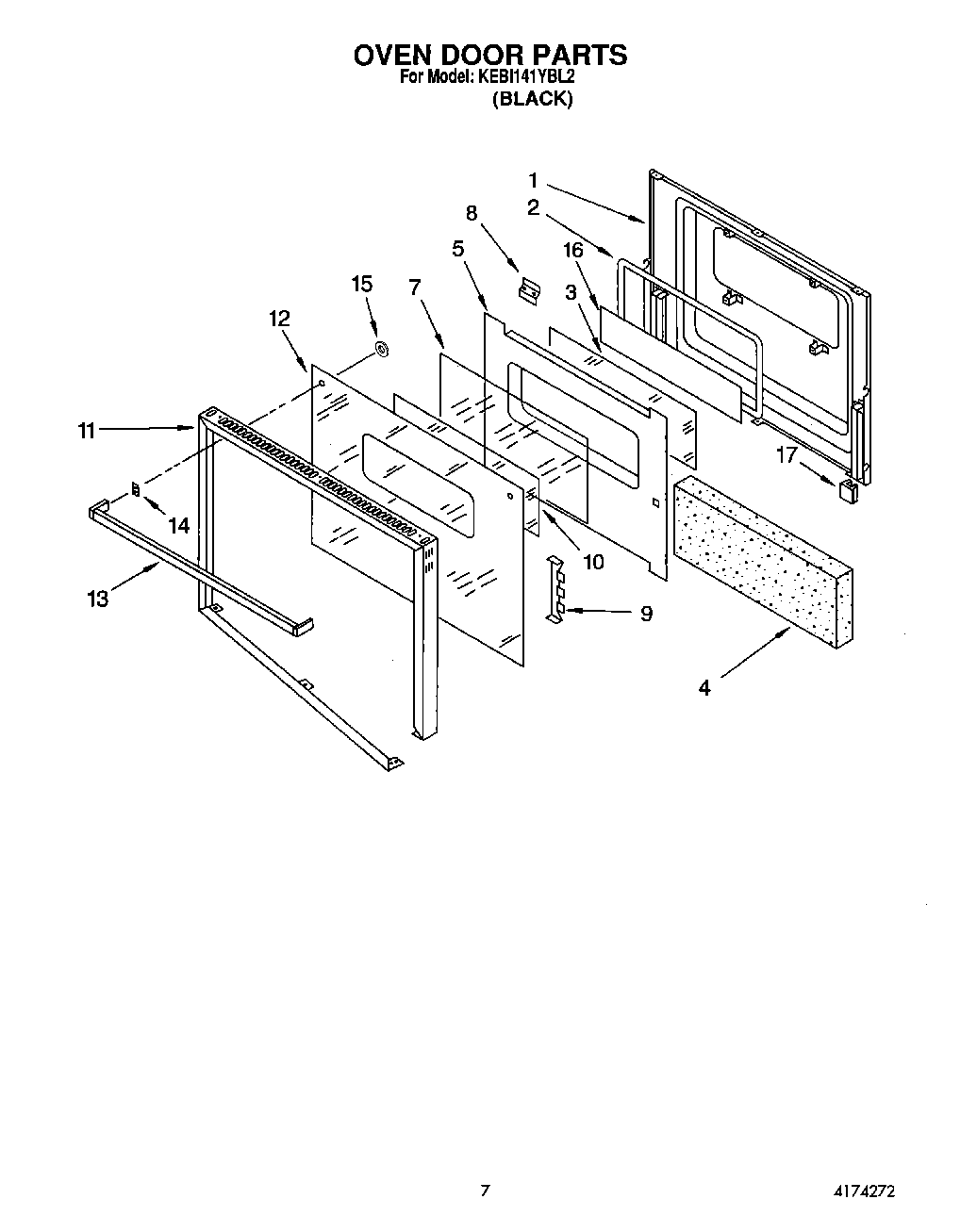

KEBI141YBL2 05 – OVEN DOOR

KEBI141YBL2 05 – OVEN DOOR

Written by

in

KEBI141YBL2 05 – OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
2Seal, Window
3Glass, Clear
4Insulation, Door
5Retainer, Insulation
5Screw
7Glass, Reflective
8Latch, Strike
9Screw
9Retainer, Glass
10Glass, Clear
11Frame, Door
12Glass, Door (Black Model)
13Handle, Door (Black Model)
14Spacer, Door Handle
15Bushing, Door Handle
15Screw
15Screw
16Foil-Adhesive Backed
17Bumper, Door Glass
